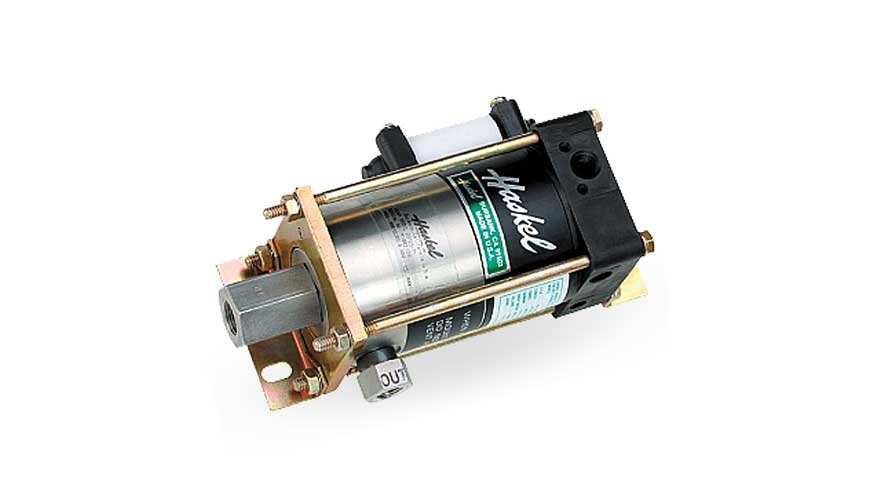

Air Driven Liquid Pump,Series AHL33-2D

Technical Specifications – High-Pressure Air-to-Liquid Pump
Overview
Actual Air to Liquid Pressure Ratio: 1:67

Volume Displacement per Stroke: 15.3 in³ (250.7 cm³)

Maximum Outlet Pressure: 6,700 psi (462 bar)

Liquid Side Specifications
Service: Oil, water, water/oil mixtures, and other compatible fluids

Maximum Outlet Pressure: 6,700 psi (462 bar)

Air to Liquid Pressure Ratio: 1:67

Isolation Chamber: Standard (prevents air section contamination)

Volume Displacement per Stroke: 15.3 in³ (250.7 cm³)

Dual Inlet Connections: 1" FNPT

Dual Outlet Connections: 1/2" FNPT

Air Side Specifications
Air Drive Pressure Range: 20–100 psi (1.4–6.9 bar)

Nominal Air Pressure for Max Output (6,700 psi): 100 psi (6.9 bar)

Air Inlet Port: 1" FNPT

Pilot Port: 1/8" FNPT

Exhaust Ports (mufflers removed): 1" BSP

Air Consumption @ 50 psi (0 psi liquid): 290 SCFM

Prelubricated at Factory

General Specifications
Operating Temperature: 0–140°F (-18°C to 60°C)

Net Weight: 160 lbs (73 kg)

Pressure Head Material: 15-5 PH Stainless Steel

Plunger Material: Stainless steel with proprietary multi-layer carbon-based coating, featuring a diamond-like carbon exterior

3x the hardness of stellite

Friction coefficient equal to or lower than PTFE

Check Valve Glands: 316 Stainless Steel

Liquid Seal: Refer to ordering guide for options

Air Drive Seals: Buna N

Note: Maximum air drive pressure is limited by the maximum output pressure.
