How Hydraulics Connect to Dynamic Positioning Systems?

If you imagine huge offshore vessels, drilling ships, and semi-submersibles as holding stations in rough seas, sophisticated machines, GPS, and complex algorithms are the first things that pop into your mind. They are all essential elements of a dynamic positioning (DP) method that lets a vessel keep its exact position and direction through its own propellers and thrusters.

What does it that powers those thrusters? What generates the enormous force necessary to counteract the constant push of waves, winds, and currents?

The secret weapon behind all of this power and precision can be found in the hydraulics.

The Muscle Behind the Brain: Why Hydraulics are Essential for DP

Dynamic Positioning systems comprise an advanced brain (the controlling system) coupled to powerful muscles (the thrusters). Hydraulics supply these muscles with the strength and sensitivity required.

Here's a look at the vital role of hydraulics:

1. Thruster Pitch and Azimuth Control: The most obvious connection lies in those thrusters. Modern thrusters, specifically those with azimuth (which are able to rotate around 360°), make use of motors and hydraulic cylinders that can:

   • Control the thruster (azimuth control): Hydraulic systems precisely turn the whole thruster assembly in order to send forward thrust in any direction that is required by the DP system. This allows for extremely precise adjustments to mitigate external forces.

   • Adjust propeller blade pitch. For propellers that can be controlled in pitch, hydraulics are employed to adjust the angles of propeller blades. This alters the direction and amount of thrust without altering the engine's speed, resulting in incredibly fluid and swift thrust modulation that is crucial to ensure precise station-keeping.

   • Lift and Lower Thrusters: Certain retractable thrusters employ hydraulics to launch them into the water or retract them during maintenance.

2. Power Transmission Systems that use hydraulics are exceptional at the transmission of high-density power. A tiny motor and hydraulic pump can transfer enormous quantities of torque and force in comparison to electrical or mechanical systems of the same dimensions. This is vital for the small spaces within the vessel's hull. Every millimeter is important.

3. Response and Precision DP systems require instant and precise responses from thrusters. Hydraulic actuators are well-known for their

   • High Force Output: They generate a tremendous force to move large thruster components swiftly.

   • The stiffness of Systems that use hydraulics is very incompressible. This means that there's not much "give," which allows the precise positioning and hold regardless of the load.

   • Rapid Response Times: Modern hydraulic servo valves are able to respond almost instantly to commands issued by the DP control system, converting calculations into physical motion without delay.

4. Incorporation into the Power System: While the engines that generate the power source the Hydraulic power units (HPUs) typically transform this into the high-pressure fluid that is required to operate the thruster. They're durable and are designed to operate continuously as a vital link between the vessel's power generation as well as the thruster's mechanics.

The System in Action

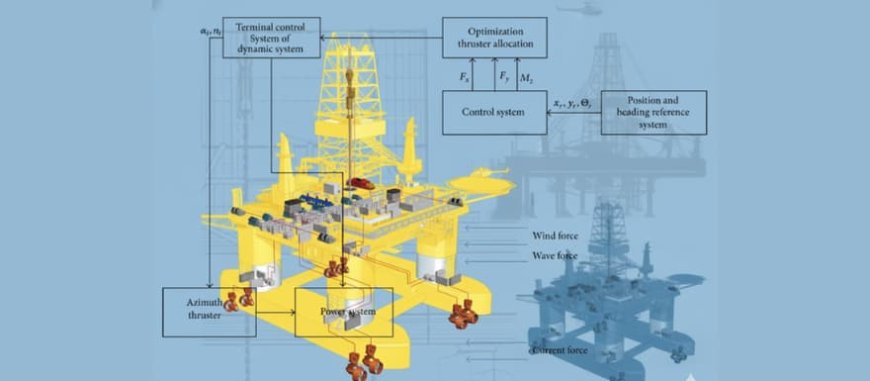

Imagine a drillship anchored on top of an oil well. Its DP control system continually receives information from GPS motion reference units, as well as wind sensors. It calculates the precise force and direction required from each thruster in order to take on the forces of the environment.

These calculations are later communicated as commands to valves for hydraulic control. The hydraulic fluid at high pressure is then directed to cylinders or motors. They will then:

• The thrusters should be rotated to the exact angle.

• The propeller's pitch can be adjusted in order to provide the precise quantity of thrust.

The constant, dynamic interplay with the computer "brain" as well as"muscle" fluid "muscle" is the reason why DP vessels are remarkably steady, even in the most difficult conditions.

The Importance of Maintenance

Due to their crucial function their vital role, the hydraulic systems inside DP vessels need to be maintained with a high degree of care. Leaks, contaminated fluids, or worn-out components could compromise the whole DP system's capability to keep station, resulting in expensive downtime or, in extreme situations, losing the station's position.

In conclusion, although the latest electronic and software used in Dynamic Positioning systems get a lot of the spotlight but it's the durable and dependable hydraulic systems that give the necessary power and accuracy that truly bring these amazing vessels to life, and maintaining them on the right track.
