The Hidden Giant: A Discussion on Hydraulic Transmission

If you've seen a huge excavator digging many tons of soil or a bulldozer moving a huge pile of dirt, then you've seen the power of hydraulic transmission. Hydraulic transmission is completely different from mechanical transmission you would find in your car, which is all gears and shafts. Hydraulic transmission uses fluid to transfer and control large amounts of power. It is the silent hero of the construction and heavy equipment industries.

First, let's define hydraulic transmission. Hydraulic transmission is a system that uses pressurized fluid (usually a special oil) to transmit power from an engine (the power source) to an actuator (the work mechanism—think shovel, wheel, etc.). Hydraulic transmission takes mechanical energy, then converts to fluid energy, and finally converts back to mechanical energy to do work.

The Main Idea: Hydrostatic vs. Hydrodynamic

There are two distinct types of hydraulic transmissions, although the hydrostatic type is more prevalent in heavy equipment:

• Hydrostatic Transmission (HST): A hydrostatic transmission uses a pump and a motor to transmit power. In an HST system, the pump converts mechanical power produced by the engine into fluid flow and pressure. The fluid is sent to a hydraulic motor that converts the fluid flow back into rotational mechanical power for the drive wheels or tracks. This allows perfect speed and torque control, allowing operation of heavy machinery slowly under a load.

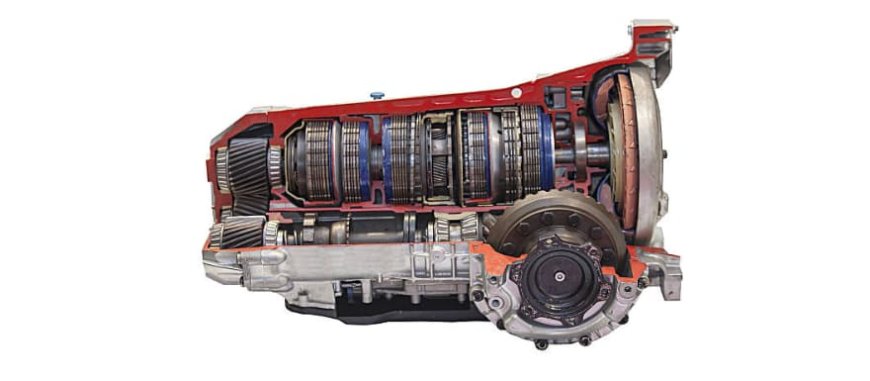

• Hydrodynamic Transmission (Fluid Coupling/Torque Converter): A hydrodynamic transmission uses kinetic energy (the movement of the fluid) to transmit power. The most common example of this type of system is a torque converter typically associated with an automatic transmission in an automobile. A torque converter offers a smooth engagement and torque multiplication for increased power but is less commonly found in pure high-output drive systems than the hydrostatic type.

Why Use Hydraulics Instead of Gears?

Hydraulic (or hydrostatic) transmission has a number of significant benefits compared to conventional mechanical (and even electrical) systems for heavy-duty use:

• Multiple Speed and Torque: HSTS can provide infinite-speed control in most applications without requiring complex gearbox changes. The operator can adjust the speed of the pump and match power to load conditions precisely.
• High Power Density: Hydraulic components can transmit tremendous amounts of power while taking up a relative small component space. Thus providing more power in a smaller, lighter package.
• Self-Lubrication: The hydraulic fluid continuously lubricates the system. This decrease wear and lengthens component life.
• Instantaneous Response: The incompressible fluid has an immediate, precise response to the operator with respect to its commands. This responsiveness is important when making delicate maneuvers involving heavy loads.

In What Contexts Does Hydraulic Transmission Dominate?

Hydraulic transmission systems can be found effectively supplying power in contexts where an accurate and high-torque movement is required:

• Construction: bulldozers, loaders, motor graders, or massive cranes.
• Agricultural: high-horsepower tractors and combines.
• Manufacturing: large presses, injection molding machines, and industrial robots.
• Marine: winches and steering machinery on boats.

From the gentle precision of a surgical robot to the ground-shaking force of an earth-moving machine, hydraulic transmission is the powerful and elegant efficiency of fluid power, suggesting that when it comes to hosting significant power, a simple medium like oil may be the best!
