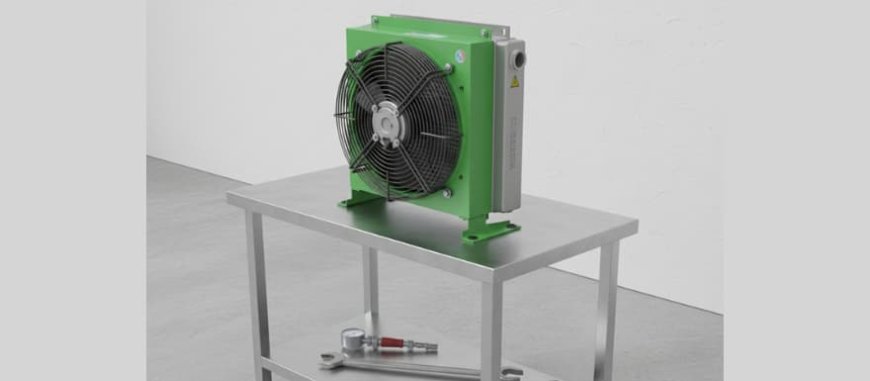

What’s the Most Common Mistake People Make When Installing Hydraulic Oil Coolers?

When it comes to maintaining a healthy, efficient hydraulic system, the oil cooler is a critical component. It prevents overheating, which is the leading cause of premature component wear and fluid breakdown. However, there is one common and costly error that engineers and technicians frequently make: undersizing the cooler.

Why Undersizing is the Biggest Blunder

Undersizing a hydraulic oil cooler means installing a unit that is physically too small or has an insufficient heat transfer capacity (kW or BTU/hr) for the actual heat load generated by the system.

Here's why this is the most common and damaging mistake:

1. Ineffective Cooling $\implies$ System Overheat

A cooler that is too small simply cannot dissipate the required amount of heat. The result is that the system operates above its optimal temperature.

• Hot Oil Damage: Sustained high temperatures cause the hydraulic fluid to degrade and oxidize rapidly. This process forms sludge, varnish, and acidic compounds that attack seals and internal components.

• Reduced Viscosity: As the temperature rises, the oil's viscosity drops. Low viscosity reduces the lubricant film thickness, leading to metal-to-metal contact, friction, and accelerated wear in pumps, motors, and cylinders.

2. Excessive Wear and Component Failure

Because the fluid is operating outside its designed parameters, all components are stressed:

• Pumps: The life of a hydraulic pump can be halved for every 10^\circ\textC increase above the maximum safe operating temperature.

• Seals and Hoses: High heat causes elastomer seals and hose material to harden, crack, and fail, leading to costly leaks and downtime.

3. High Energy Consumption

When the system is too hot, the oil is thinner, causing increased internal leakage within pumps and valves. To compensate for this volumetric loss, the system has to work harder (i.e., the pump runs longer or at a higher pressure setting) to maintain the required flow and function, leading to wasted energy.

Why Does Undersizing Happen?

This mistake usually stems from a few key missteps in the design and selection process:

• Focusing on Price: Smaller coolers are cheaper initially. Trying to save a few dollars upfront often results in massive repair and maintenance costs later.

• Using Ideal Heat Load Calculations: Many people size a cooler based on the pump's theoretical efficiency or a simple percentage of horsepower, which assumes ideal operating conditions.

• Ignoring Ambient Conditions: The ability of a cooler (especially an air-cooled model) to dissipate heat depends heavily on the maximum ambient air temperature. A cooler sized for a cool climate will fail in a hot, tropical environment.

• Forgetting External Factors: The calculation must account for heat transferred from the reservoir, tank heaters, and external piping, which all contribute to the total heat load.

How to Get the Sizing Right

To avoid this costly mistake, always oversize a cooler slightly, and follow these essential steps:

1. Determine the Actual Heat Load: The most accurate method is to measure the oil temperature rise over time, or consult the component manufacturer's data for the machine's expected heat generation (kW). A common rule of thumb is that the cooler must be able to dissipate 25% to 40% of the total input power to the hydraulic pump.

2. Factor in Temperature Differential (\Delta T): The cooler's performance is rated based on the temperature difference between the oil and the cooling medium (air or water). Design the cooler selection based on the worst-case scenario (i.e., highest expected ambient temperature).

3. Account for System Pressure Drop: Ensure the selected cooler does not introduce excessive pressure drop into the system line, which can starve the pump or cause cavitation.

4. Consider Future Growth: If the machine might be upgraded, run faster, or have additional functions added later, select a cooler with reserve capacity.

By taking the time to calculate the required heat dissipation properly and choosing a cooler with a safe margin, you can ensure your hydraulic system runs at its optimal temperature, drastically reducing fluid costs, component wear, and unexpected downtime.
