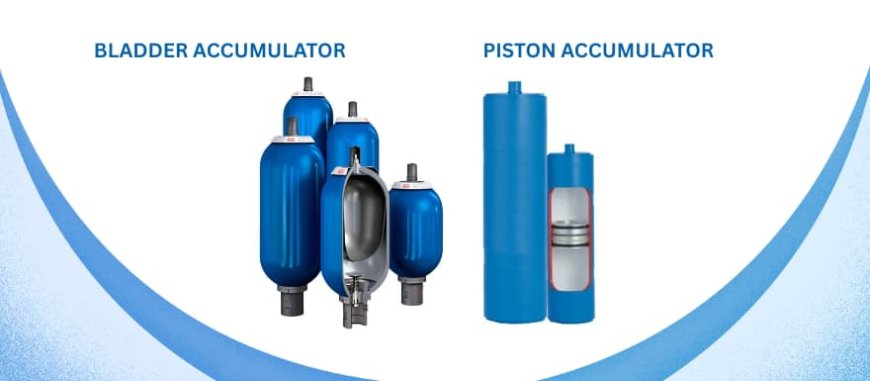

Piston vs. Bladder Accumulators: Which One's Right for Your Application?

In the realm of hydraulic systems, accumulators play an essential function in storing energy, dampening shocks, and maintaining pressure. The most popular kinds are piston accumulators as well as bladder accumulators, as both belong to the category of hydro-pneumatic (using the inert gas, usually nitrogen, for compression of fluid).

Although their primary function is similar but their inner structure can lead to different advantages and disadvantages, which makes them more suited to specific situations. Understanding these differences is essential to optimizing the performance of your hydraulic system.

Bladder Accumulators: Fast Response, Compact Design

Bladder accumulators are made up of a flexible, gas-filled bladder within an enclosed shell filled with fluid. The bladder functions as a separation between gas as well as hydraulic fluid.

Advantages of Bladder Accumulators:

• Rapid Response Time Because of the low inertia and elasticity of the bladder's reservoir, these types of accumulators are able to react very quickly to changes in flow and pressure. This makes them ideal for shock absorption and pulsation dampening within systems with high-frequency cycles.

• Excellent for Pulsation Damping. Their rapid response reduces the pulsations created by pumps, while also protecting the downstream components and reducing system noise.

• Compact and Light: Often more compact to fit a particular energy storage capacity than piston types, and typically less heavy.

• less sensitive to contamination: The bladder provides an absolute barrier between gas and the liquid, thereby reducing the possibility of contamination from gas or vice versa. They are also a bit more resistant to filthy fluid than piston types (though the cleanest fluid is always the best).

Limitations of Bladder Accumulators:

• Low Pressure Ratings The typical limit is that are 350 bars (5,000 PSI). Beyond that, the material of the bladder can be stressed beyond its limits.

• Temperature Sensitivity The material used to make the bladder (elastomer) can be sensitive to temperatures that are high and a variety of fluids, that can cause degradation of its properties over time.

• Limited Volume: It is generally available with smaller volumes of fluid compared to piston accumulators.

• Highly prone to bladder failure: The bladder itself is susceptible to damage through abrasive particles or improper charging, causing rupture or leakage.

Ideal Applications for Bladder Accumulators:

• Shock absorption in mobile equipment

• Pulsation dampening in injection molding machines

• Small to medium energy storage capacity for rapid cycles

• Auxiliary power is available in systems that have fairly stable fluid temperatures.

Piston Accumulators: High Pressure, Large Volume, Robust

Piston accumulators are equipped with a free-floating piston that is able to separate the gas from the hydraulic fluid contained within a circular shell.

Advantages of Piston Accumulators:

• High-capacity Pistons are sturdy and are able to operate at higher pressures, usually more than 1,000 bars (14,500 pounds). It is because of the steel piston and cylinder structure.

• Large Volumes of Fluid: They can be made in huge sizes, which can accommodate large volumes of fluid which making them ideal for applications that require substantial storage of energy.

• Extended Service Life When properly sealed and with regular maintenance, piston accumulation systems provide a long service life, especially in harsh conditions.

• Temperature Tolerance: It is less prone to temperature variations and able to handle a greater variety of fluids due to its metallic construction and seal materials.

• Sensors for Position: A few piston accumulators are equipped with position sensors that can track the piston's movement and provide useful feedback on the gas pre-charge and fluid volume.

Limitations of Piston Accumulators:

• More expensive: It is usually more costly than bladder types, especially for smaller quantities.

• slower response: The piston is more rigid than a bladder. This leads to a somewhat slow response time. This could be a drawback for extreme pulsation-dampening systems.

• More prone to contamination: Seal integrity is vital. Abrasive or dirty fluids can cause damage to piston seals, which can lead to leakage inside and loss of pre-charge.

• Possibility of Stick-Slip: In certain circumstances, the piston may be affected by "stick-slip" movement, which can cause the piston to move in a jerky manner, however, modern seal designs limit the possibility of this.

Ideal Applications for Piston Accumulators:

• Massive energy storage in large presses and forming machines

• Power backup for offshore and marine equipment

• High-pressure systems for industrial and aerospace applications

• Large fluid volumes are accumulated in construction and mining

• Applications where precise monitoring of volume is needed

The Verdict: Match the Accumulator to Your Needs

The decision between a piston or bladder accumulation isn't about which one is necessarily "better" in comparison to the others. It's about picking the best tool to do the task.

• To provide quick reaction, shock absorption, and moderate pressures in a small package, the bladder accumulator usually performs well.

• For extremely high pressures, huge volumes, extremely durable, as well as exact monitoring, the piston accumulator will be the most obvious winner.

Be sure to consider your system's operating pressure, the required fluid volume and operating temperature range, cleanness of the fluid, response time requirements, and budget when making a choice. Talking to a specialist in hydraulics can assist you in selecting the most efficient and reliable accumulator for your particular application.
