The Power of Precision: Understanding the Hydraulic Spreader

The hydraulic spreader is a powerful and versatile rescue tool used primarily in emergency situations to separate, pry, or spread apart materials. Often recognized as one of the essential tools in the "Jaws of Life" (alongside cutters and rams), the hydraulic spreader uses fluid power to generate immense separating force, making it indispensable for vehicle extrication and various heavy-duty industrial applications.

How It Works: Mechanics and Power

The hydraulic spreader operates on the fundamental principle of Pascal's Law, which states that pressure applied to an enclosed fluid is transmitted equally throughout the fluid.

Core Components

1. Power Source: The spreader is typically powered by a hydraulic pump (either electric, gasoline, or hand-operated) that generates high-pressure hydraulic fluid (oil).

2. Hydraulic Hoses: These transmit the high-pressure fluid from the pump to the tool.

3. Spreading Arms (Jaws): The two main arms of the tool. They are designed to fit into narrow gaps and are opened by the hydraulic fluid.

4. Hydraulic Cylinder: The heart of the tool. High-pressure fluid is directed into the cylinder, forcing a piston to extend.

5. Leverage Mechanism: The piston's linear motion is converted into the angular motion of the spreading arms through a sophisticated linkage system.

The Spreading Action

When the operator engages the tool's control valve:

• High-pressure fluid flows into the main cylinder.

• The cylinder piston extends, pushing the linkage.

• This linkage forces the tips of the spreading arms apart with tremendous force.

• The force is concentrated at the tips, allowing the tool to deform or fracture steel, lift heavy objects, or create necessary openings.

⛑️ Applications: Where Spreaders Shine

While most famous for their role in road accidents, hydraulic spreaders are vital in a range of scenarios:

1. Vehicle Extrication (The "Jaws of Life")

This is the most common use. Modern vehicle construction uses high-strength steel, making manual prying impossible. The spreader is used to:

• Pry open doors that are jammed or locked.

• Create purchase points for other tools (like cutters) by separating panels.

• Lift or displace parts of the vehicle (e.g., dashboard, steering column) to free trapped occupants.

2. Collapse Rescue

In situations involving structural collapses (earthquakes, industrial accidents), spreaders are used to:

• Lift or stabilize fallen concrete slabs, beams, or debris.

• Create rescue access openings by forcing apart components.

3. Industrial and Maritime Use

Beyond rescue, spreaders are used in maintenance and construction for:

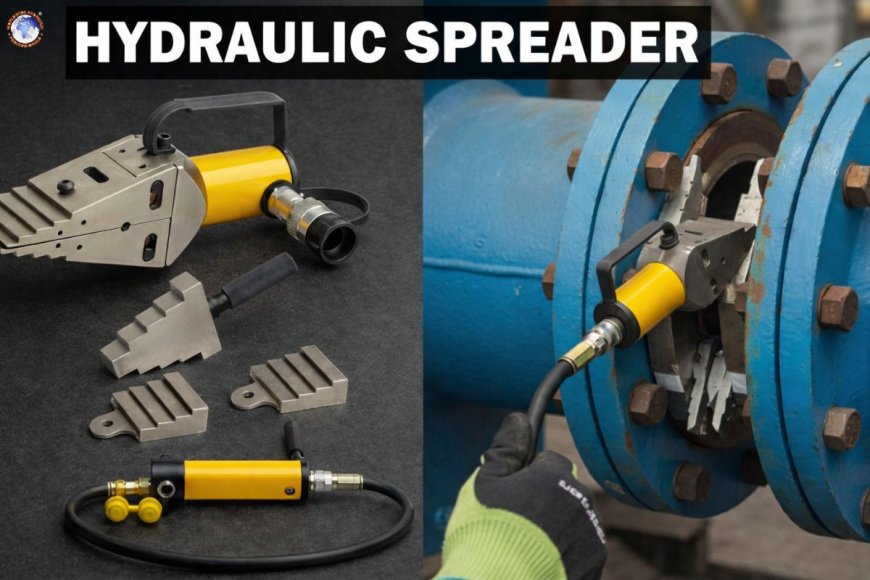

• Flange Spreading: Separating large pipe flanges to allow for gasket replacement or maintenance without damage.

• Machine Alignment: Precisely moving or aligning heavy equipment components during installation or repair.

• Lifting: Serving as short-stroke hydraulic jacks for lifting heavy, low-clearance loads.

Key Performance Metrics

When selecting or operating a hydraulic spreader, several specifications are critical:

Advantages of Hydraulic Spreaders

• Massive Force Output: They can generate many tons of force, easily overcoming materials like reinforced steel.

• Controlled Power: The force is delivered smoothly and precisely, allowing the operator to control the spreading action to prevent sudden movements that could injure a victim.

• Versatility: They can be used for spreading, pulling, or even lifting/crushing with various tips and accessories.

• Safety: Modern spreaders are often battery-powered, eliminating tripping hazards from hoses and making them faster to deploy.

The hydraulic spreader is a testament to the efficient application of fluid power, transforming a slow, dangerous prying task into a fast, controlled, and life-saving operation.
