Decoding the Layline: Your Essential Guide to Reading Your Hydraulic Hose

If a hydraulic hose explodes onto your mobile device, every minute of downtime costs you money. Finding the right replacement hose manufactured quickly depends on a crucial, but often neglected, aspect: layline. Layline.

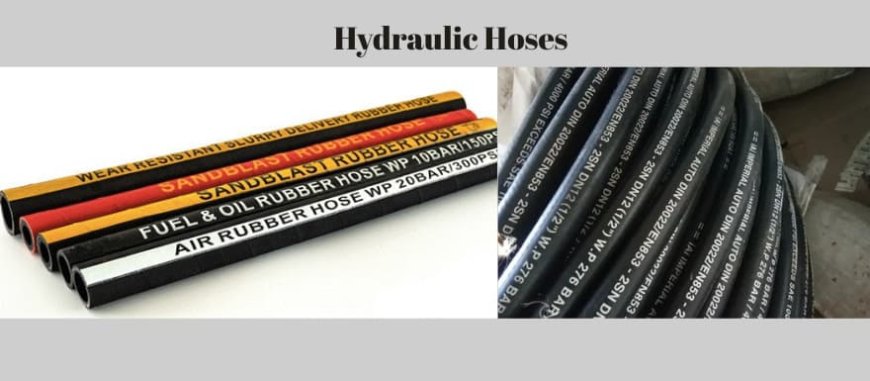

The layline is a continuous strip composed of numbers, text, and symbols that runs across every inch of the hose. It's an encrypted communication from your manufacturer that contains all the specifications that you require for a secure and effective replacement.

Don't be fooled; you must be able to read this message! This step-by-step tutorial will guide you to decipher the layline of your hydraulic hose and choose the right spare part for the first time.

1. The Manufacturer and Date

First thing that you'll observe is your trademark logo, as well as the logo. This is the name of the original manufacturer. Always ensure that the product matches the name of the manufacturer or consult an official cross-reference guide to ensure that quality is maintained.

• Manufacturer Name/Logo The manufacturer's name or logo identifies the company that manufactured the hose.

• Date Code Most often, it appears as the form of a four-digit number (e.g., 2425 for the 25th week of 2024). This can be useful in keeping track of the hose's age and anticipating its replacement.

2. The Critical Standard Specification

It is by far the most important component of the layline, giving you the specifics of the kind of hose that you are using. The majority of hoses adhere to two primary norms: SAE (Society of Automotive Engineers) or EN (European Standar,d which is also called DIN as well as ISO).

• SAE 100R2

  • Meaning: Two-wire braid reinforcement.

  • Key Information: A common medium-to-high-pressure hose.

• SAE 100R4

  • What it means: Textile and helical wire reinforcement.

  • The key feature: Designed for high suction and low-pressure return lines.

• SAE 100R12

  • Meaning: Four-spiral wire reinforcement.

  • Key Information: Used for high-pressure, heavy-duty applications (frequently found on large machines such as excavators).

• EN 853 2SN

  • Meaning: Two-wire braid, non-skive cover.

  • Key Factor: A common European standard that is equivalent to SAE 100R2..

3. Pressure Rating (Maximum Working Pressure)

This number is typically stated clearly in the form of PSI (Pounds per Square Inch), also known as BAR. It indicates an indication of the maximum working pressure (MWP) the hose is constructed to handle safely.

• Rule of thumb: Never replace the hose with one with an inferior pressure rating. In excess of the MWP, even for short durations, greatly decreases the life of the hose and increases the risk of failure immediately.

4. Fluid Compatibility and Temperature Range

At the finish of the layline, there is often some text that defines the fluids compatible with each other and the temperature range that is recommended.

• Fluid: Search for the words such as "For Hydraulic Fluids" or "Oil Resistant Tube. " This means that the tubes (often synthesized rubber) aren't damaged in the presence of any fluid you're using (e.g., conventional petroleum-based oil in contrast to synthetic fluids that are fire-resistant).

• Temperature The Tempe is the highest and minimal operating temperature (°F or °C). A hose that is heated above its maximum temperature can quickly melt the rubber, causing it to crack, harden, and break prematurely.

The Takeaway Checklist for Ordering Spares

If you ever need to replace your hydraulic hose, take these steps with the information you gleaned from the layline

1. Standard: Be sure to read the entire SAE/EN/DIN standard ( SAE 100R2).

2. Size: Confirm the Dash Size (Internal Diameter) ( -10 or $\frac"$).

3. Pressure: Record the Maximum Working Pressure ( 3000 PSI).

4. Length & Ends Find the total length from end-to-end and determine the kind of fitting at the other side (JIC, NPT, ORFS, and so on).

Once you have mastered the layline, you can go from playing and making guesses to precise and professional repairs, drastically reducing the time your equipment is down.
