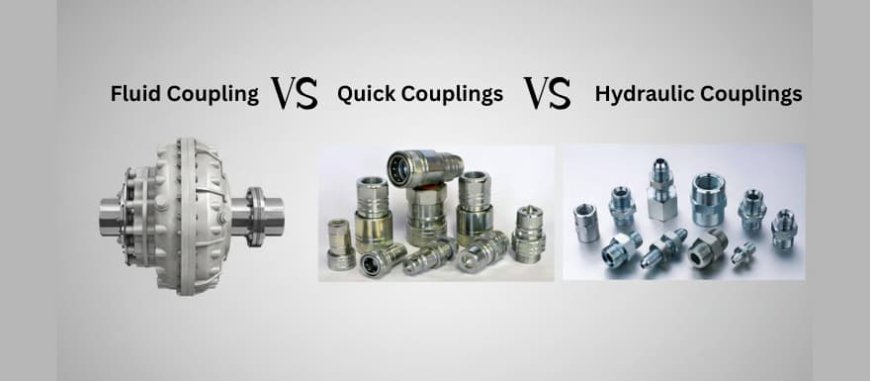

Hydraulic coupling vs. Fluid coupling vs. Quick coupling

The term "coupling" can be used to refer to three different devices in the world of fluid and mechanical power systems: Fluid Couplings and Quick Couplings. All three couplings connect components but they have different purposes and work on fundamentally separate principles.

Here are three important connection methods.

1. Fluid Coupling (Hydrodynamic Coupling)

A fluid coupling connects a primary mover (such as an electric motor) with a driven machine. It transmits the power by using a controlled flow of oil or hydraulic fluid, rather than a rigid connection.

What It Does:

• Torque Transmitter: It transfers rotational force using kinetic energy.

• This is a soft starter: It allows the motor to be started without load and gradually engages the driven machine. It reduces the electrical strain on motors and mechanical shock to the drivetrain.

• Reduces Vibration and Shock: Provides an elastic, flexible connection that reduces vibrations and absorbs shocks.

• The principle is It has two parts: an impeller pump connected to the motor, and a runner turbine connected to the driven machine. The impeller throws fluid at the turbine blades when it spins.

Primary Application

Heavy-duty industrial application where smooth startup and impact absorption is critical. Examples include crushers, mixers, and large fans/blowers.

2. Quick Coupling

A quick coupling or quick disconnect coupling (QDC), is a simple mechanical device that connects and disconnects fluid lines (hydraulic and pneumatic) quickly and without tools, and with little fluid loss.

What It Does:

• Facilitates Fast Connection/Disconnection: Allows hoses and tools to be swapped out quickly in the field.

• Check Valves Prevent Leakage: The majority of QDCs have check valves in both male and female ends. These valves seal automatically when disconnected. This minimizes oil spillage and prevents air/contaminants from entering the line.

• Simple Operation Uses a simple push-to-connect or sleeve lock mechanism.

Primary Application

Any system that requires frequent and fast changes of tools or accessories, such as construction attachments (e.g. excavators, Skid Steers), portable pneumatic tool (air lines), test benches, etc.

3. Hydraulic Couplings (Pipe/Tube Connectors)

A Hydraulic Coupler is a permanent fitting that mechanically connects two sections of hydraulic tubing, hose, or piping to create a fluid path. This is a term that refers to a variety of connectors and not a device for power transmission.

What It Does:

• Creates Permanent Seals: The main purpose of this seal is to connect components securely and without leaks. Types include flared connectors, compression connectors, and crimp on hose ends.

• Manages pressure: The connections in this category are designed to handle the high pressures that hydraulic systems experience (often a thousand psi).

• Directs flow: These include different shapes such as straight connections, elbows and tees for routing the fluid through the machine.

Primary Application

The building block for any fluid-powered system that is pressurized: connects pumps, valves and cylinders to mobile and industrial equipment.

Key Comparison Table

Understanding the different roles of these couplings will help you to choose the right component whether you want to transmit power, swap tools quickly, or build a high-pressure fluid circuit.
