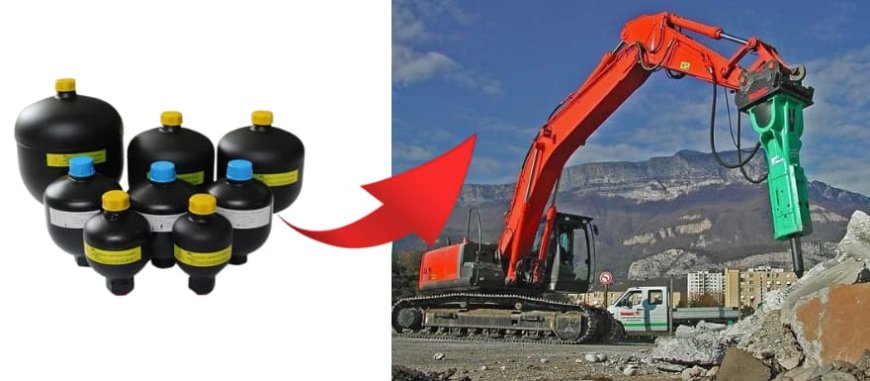

How Are Hydraulic Accumulators Used in Excavators and Heavy Construction Equipment?

In the realm of construction, heavy machines like bulldozers and excavators, as well as wheel loaders, can be distinguished by their power and capability to complete huge, challenging tasks. They depend on complicated hydraulic systems -- the core of the machine -- to create the force required to lift, dig, and move. In the system is a straightforward component called the hydraulic accumulator is a vital but often unnoticed part.

An accumulator is in essence essentially a reservoir for the storage of pressure, which holds non-compressible hydro fluid under pressure, which is separated from a gas that is compressible (usually nitrogen). It functions as a battery for hydraulics and stores energy that can be used immediately upon demand in addition to acting as a shock absorber to shield the whole system. Without them, today's heavy equipment will be slower, more inefficient, as well as more susceptible to breakdowns.

The Four Critical Roles in Heavy Equipment

In excavators as well as other construction equipment, hydraulic accumulators cannot be utilized for just one function and are part of diverse circuits in order to increase efficiency, safety, and life span. Their roles can be classified into four main, crucial functions:

1. Energy Storage and Supplementation

The size of hydraulic pumps is usually designed to meet only the typical flow demand and not the maximum demand for flow, since demand for peak flows are typically short-term. The accumulator fills in that gap in energy storage in times when your system's demands are minimal (e.g. in the event that the boom is not in use or in a position).

• The Pump's Size Optimization. The pump is able to be reduced since the accumulator offers additional flow to facilitate rapid high-demand processes, such as the sudden boom movement or a rapid alteration in the angle of the bucket. This enables the pump to operate at a lower and more stable power output, resulting in reductions in energy usage and less wear on your engine.

• Rapid Reaction: If the user presses the joystick, the accumulator releases its stored pressurized fluid nearly immediately and provides the required boost of power prior to when the main pump can be ramped up, ensuring swift and precise machine moves.

2. Shock Absorption (Pulsation Dampening)

Heavy machinery is continuously subject to huge, abrupt shifts in load--hitting a stone or stopping a load that is moving fast or engaging a powerful Hammer attachment. These types of events cause high-pressure surges or waves (often known as the hydraulic hammer, also known as water hammer) moving through the fluid lines of the system.

• Component Security: The accumulator, usually an accumulator of the diaphragm or bladder, is pre-charged by gas, which allows it to cushion the shocks. When a high-pressure wave strikes the accumulator gas expands, taking in the energy, and significantly reducing the force of the shock. This shields delicate components such as valves, seals, and hoses and the pump itself from damage, thereby prolonging the life of the equipment..

• User Comfort by smoothing pressure fluctuations, specifically in the stick and boom circuits of the system, it helps reduce system vibration, which results in more smoother and pleasant ride for the user.

3. Leakage Compensation and Pressure Holding

Hydraulic systems aren't always perfectly sealed. Small leaks in the internal plumbing occur naturally between valve spools, as well as piston seals. Although it is not significant, the leakage leads to pressure dropping with time, especially if your main pump is operating at a slow speed or shut off.

• Maintaining system pressure, the accumulator takes care of the small leaks by constantly discharging a small amount of pressurized fluid back into the circuit. This makes sure that the pressure stays constant over a long period that is long, even if the pump is not in use.

• Reduced Pump Cycles for systems that require the use of a large hold pressure (like, for example, the clamps of a forest attachment, or the outriggers of the crane,) the accumulator holds this pressure, which reduces the requirement of the pump's main motor to continuously switch between a stop and a start to replenish the system. This conserves energy and decreases wear and tear on the pump motor as well as electrical contactors.

4. Safety and Emergency Backup

When it comes to high-risk activities, such as when lifting equipment is involved, the accumulator is the necessary safety layer.

• Safe Shutdown If there is the possibility of an engine stoppage or pump failure, the properly-sized accumulator stores enough energy that allow the operator to carry out crucial non-powered tasks. An example of this is using the stored power in order to securely lower a load suspended (like an attachment or a boom) the attachment) Or let the brakes go to allow the machine to be pulled. This is vital for preventing injuries and also reducing recovery time.

• The Brake Circuit and the Locking Circuit. On larger wheeled or track-driven machines, accumulators tend to be devoted to track-locking or brake-release circuits, making sure that these functions are of high priority and can be completed even if the power source is not available.

The Types of Accumulators Used in Excavators

Heavy equipment primarily makes use of gas-loaded accumulation units since they provide the most efficient balance of dimensions, energy densities, and the speed of response. The three major design principles are

It is believed that the bladder-accumulator can be the commonly used option for shock absorption because of its quick response time. But, bigger machines equipped with specific regenerative circuits could make use of sturdy piston accumulation units to store and release large volumes of high-pressure fluid effectively.

Accumulators and Modern Efficiency

The trend toward greener and more efficient heavy machinery has also increased the importance of accumulators. Modern excavators employ advanced hydraulic systems, which often make use of regenerative brake techniques.

The regenerative circuit for the boom, when an excavator lowers its boom, the impact of the boom as well as the load attached to it pushes hydraulic fluid to escape from the cylinder with high pressure. Instead of converting the potential energies into heat that is wasted via an inflexible valve that restricts the flow of fluid, it is channeled to an accumulation device. The accumulator holds this recuperated energy, which can later be used immediately to aid in the next cycle of lift. This method of energy recuperation greatly reduces the burden on the engine and pump and results in reduced usage of fuel and lower emissions on the work site.

In the end, the hydraulic accumulator is far more than an element; it is an element that can enhance modern heavy equipment's functionality. It transforms a strong but tough hydraulic machine into a smooth, effective, secure, and responsive machine, allowing excavators as well as their counterparts to handle the demands of construction every day.
