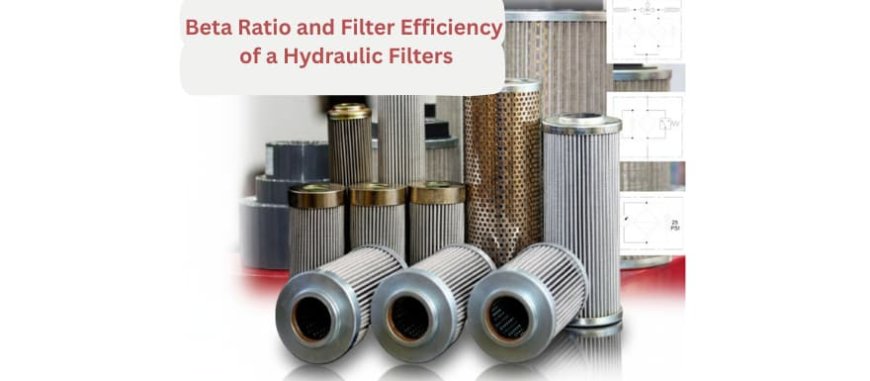

Unveiling the Beta Value: Your Hydraulic System's Unsung Hero for Cleanliness and Reliability

Imagine your hydraulic system as the lifeblood of your machinery. Just like the human circulatory system, it needs to be free of contaminants to function optimally and ensure a long, healthy life for your equipment. Enter the humble yet critically important hydraulic filter, and its most telling metric: the Beta Value.

In the complex world of hydraulics, where precision and performance are paramount, understanding the Beta value isn't just a technical detail; it's a cornerstone of effective maintenance, a shield against premature wear, and a direct determinant of your system's reliability and longevity. This comprehensive guide will delve deep into what the Beta value truly represents, how it's determined, and why it holds such significant sway over your oil cleanliness and, by extension, the unwavering reliability of your entire hydraulic operation.

The Silent Enemy: Contamination in Hydraulic Systems

Before we dissect the Beta value, let's briefly revisit why filtration is so crucial. Hydraulic fluid, while seemingly robust, is incredibly sensitive to contamination. Microscopic particles, often invisible to the naked eye, are the silent assassins of hydraulic components. These contaminants can be introduced from various sources:

• Ingression from the environment: Dust, dirt, and moisture entering through breathers, rod seals, and poor maintenance practices.

• Generated internally: Wear particles from pumps, motors, valves, and cylinders; oxidation byproducts from degraded oil.

• Original manufacturing contaminants: Residual debris from the manufacturing process of new components or fluids.

Once inside, these particles wreak havoc. They cause:

• Abrasive wear: Grinding away at precision surfaces like pump pistons, valve spools, and cylinder walls.

• Erosive wear: High-velocity fluid carrying particles literally "sandblasting" components.

• Fatigue wear: Microscopic cracks forming due to repeated stress from contaminants.

• Adhesive wear: Metal-to-metal contact as oil film is breached by particles, leading to welding and tearing.

• Silting/Sticking: Accumulation of fine particles in critical clearances, leading to sluggish operation, control issues, and outright seizing of components.

• Reduced component lifespan: All forms of wear lead to accelerated degradation and premature failure of expensive components.

• Increased downtime and maintenance costs: Replacing failed parts, troubleshooting issues, and unplanned stoppages eat into productivity and profits.

This is where the hydraulic filter steps in, acting as the vigilant guardian, trapping these detrimental particles before they can inflict damage. But how effectively does a filter perform this vital role? This is precisely what the Beta value tells us.

Decoding the Beta Value (βx): A Measure of Filtration Efficiency

The Beta (β) value is a standardized way to quantify a hydraulic filter's efficiency at removing particles of a specific size from the fluid. It's not just a random number; it's a ratio derived from a rigorous laboratory test, typically the Multi-Pass Test (ISO 16889).

The formula for the Beta value is straightforward:

βx = (Number of particles greater than or equal to 'x' microns UPSTREAM of the filter) / (Number of particles greater than or equal to 'x' microns DOWNSTREAM of the filter)

Where 'x' represents a specific particle size in micrometers (µm).

Let's break down what this means with an example:

If a filter has a β10 = 200:

• It means that for every 200 particles of 10 micrometers (µm) or larger that enter the filter (upstream), only 1 particle of 10 µm or larger successfully passes through it (downstream).

• In simpler terms, the filter is 200 times more effective at stopping 10 µm particles than letting them pass.

Converting Beta Value to Percentage Efficiency

While the Beta value provides a powerful ratio, sometimes it's easier to grasp the concept in terms of percentage efficiency. The conversion is simple:

Percentage Efficiency (%) = [(βx - 1) / βx] * 100

Using our example of β10 = 200:

• Percentage Efficiency = [(200 - 1) / 200] * 100

• Percentage Efficiency = [199 / 200] * 100

• Percentage Efficiency = 0.995 * 100 = 99.5%

This means a filter with a β10 = 200 is 99.5% efficient at removing particles 10 µm and larger.

Key Takeaways from the Beta Value:

1. Particle Size Specificity: The Beta value is always tied to a specific particle size (e.g., β5, β10, β25). A filter might be very efficient at removing larger particles but less so for smaller ones.

2. Higher Beta = Higher Efficiency: A larger Beta value for a given particle size indicates a more efficient filter. For instance, a β10 = 1000 is significantly more efficient than a β10 = 75.

3. Absolute vs. Nominal Ratings (A Historical Note): In the past, filters were often rated as "nominal" or "absolute." Nominal ratings were often vague and inconsistent, while absolute ratings implied 100% removal above a certain size. The Beta value system has largely replaced these older, less precise ratings, offering a much more scientific and reproducible measure of filter performance. However, some manufacturers still use the terms "absolute" for filters with very high Beta values (e.g., βx ≥ 75).

Why the Beta Value Matters for Oil Cleanliness

The Beta value is the cornerstone of achieving and maintaining target oil cleanliness levels, which are typically expressed using ISO Cleanliness Codes (ISO 4406).

ISO Cleanliness Codes Explained (Briefly): An ISO code (e.g., 18/16/13) provides three numbers corresponding to the number of particles per milliliter of fluid at three different sizes:

• First number: Particles ≥ 4 µm

• Second number: Particles ≥ 6 µm

• Third number: Particles ≥ 14 µm

Each number represents a range. For instance, an 18 means there are between 1,300 and 2,500 particles per ml that are 4 µm or larger.

The Link to Beta Value:

To achieve a desired ISO cleanliness code, you need filters with appropriate Beta values. For example, if your system's critical components require an ISO 18/16/13 cleanliness level, you'll need to select filters capable of achieving and maintaining these particle counts. This often involves choosing filters with high Beta values at the relevant particle sizes (e.g., β4, β6, β14).

• Preventing Particle Ingression: By selecting filters with high Beta values, you ensure that the maximum possible percentage of contaminants are removed before they can enter the sensitive areas of your system.

• Maintaining System Purity: A well-chosen filter, based on its Beta value, actively works to keep the fluid within the desired ISO cleanliness range, even as new contaminants are generated or introduced.

• Impact of Undersized Filters: If you use a filter with an inadequate Beta value (i.e., too low for the required cleanliness), your fluid will never reach or maintain the target ISO code. The system will operate with higher levels of contamination, leading to accelerated wear.

• The "Dirty Dozen" (and Smaller): Most critical wear in hydraulic components is caused by particles in the 4-14 µm range, often referred to as the "clearance gap" particles. These are precisely the sizes that Beta values are crucial for addressing. For instance, the critical clearance in a servo valve might be 1-5 µm, while a pump might have clearances of 5-20 µm. A filter with a high βx value for these specific sizes offers robust protection.

Why the Beta Value Matters for System Reliability

The connection between oil cleanliness and system reliability is direct and undeniable. By understanding and utilizing the Beta value, you are making informed decisions that directly impact the operational health and longevity of your equipment.

1. Extended Component Life: This is the most significant benefit. When the oil is consistently clean, the abrasive wear on pumps, motors, valves, and cylinders is drastically reduced. This directly translates to components lasting significantly longer, postponing expensive replacements and overhauls.

2. Reduced Downtime: Fewer component failures mean fewer unplanned stoppages. Machines stay operational, productivity remains high, and costly emergency repairs are minimized.

3. Lower Maintenance Costs: Beyond component replacement, clean oil reduces the frequency of troubleshooting, reduces the need for frequent oil changes (as the oil itself lasts longer), and minimizes labor associated with contamination-induced issues.

4. Optimal System Performance: Contamination can cause sluggish operation, poor response, and even complete failure of precision components like servo and proportional valves. Maintaining high oil cleanliness with appropriate Beta-rated filters ensures these components operate precisely as designed, leading to consistent and accurate machine performance.

5. Longer Fluid Life: Clean oil doesn't just protect components; it protects itself. Contaminants, especially water and air, can accelerate oil degradation through oxidation. Effective filtration, as measured by Beta value, helps remove these contaminants, extending the useful life of the hydraulic fluid itself, leading to further cost savings.

6. Predictable Operations: When you know your filtration system is effectively controlling contamination, your operations become more predictable. You can plan maintenance more accurately, anticipate fewer failures, and have greater confidence in your equipment's availability.

7. Warranty Protection: Many OEM (Original Equipment Manufacturer) warranties for hydraulic equipment specify required ISO cleanliness levels. Failing to meet these levels due to inadequate filtration (and thus inadequate Beta-rated filters) can void your warranty, leaving you exposed to significant repair costs.

8. Energy Efficiency: Contamination can increase friction and wear, leading to a loss of energy efficiency within the hydraulic system. Clean fluid allows components to operate with less resistance, potentially reducing energy consumption.

The Multi-Pass Test (ISO 16889): The Gold Standard

The Beta value is not just an arbitrary claim; it's the result of a standardized and rigorous testing procedure: the Multi-Pass Test (ISO 16889). Understanding the essence of this test reinforces the credibility of the Beta value.

Here's a simplified overview of how it works:

1. Test Rig: A controlled hydraulic circuit is set up.

2. Contaminant Injection: A known amount of test dust (usually AC Fine Test Dust, which has a specific particle size distribution) is continuously injected into the upstream side of the filter.

3. Particle Counting: Automatic particle counters continuously sample the fluid both upstream and downstream of the test filter.

4. Data Collection: The counters measure the number of particles at various sizes (e.g., 4µm, 6µm, 14µm) both entering and exiting the filter.

5. Beta Calculation: The Beta value for each specified particle size is calculated using the formula: βx = Upstream Count / Downstream Count.

6. Continuous Injection: The test continues, often until the filter reaches a predefined terminal pressure drop (indicating it's loaded with contaminants). This "multi-pass" aspect simulates real-world conditions where fluid repeatedly circulates through the filter.

This standardized approach ensures that Beta values from different manufacturers, when obtained under the ISO 16889 standard, are comparable and reliable.

Practical Application: Selecting the Right Beta-Rated Filter

Choosing a hydraulic filter isn't just about picking the cheapest option or the one that physically fits. It's a strategic decision informed by your system's requirements and the filter's Beta value.

Here's a guide:

1. Determine Target ISO Cleanliness Code: Consult your OEM manual or industry best practices to establish the required ISO cleanliness level for your specific hydraulic system and its most sensitive components. For example, a system with servo valves might require an ISO 16/14/11, while a less critical system might tolerate 20/18/15.

2. Identify Critical Particle Sizes: Based on your target ISO code, you'll know which particle sizes are most critical (e.g., 4µm, 6µm, 14µm).

3. Select Filter Beta Values: Choose filters that provide sufficient Beta values at these critical particle sizes to achieve and maintain your target ISO code. A common rule of thumb for robust protection is to aim for a Beta value of at least βx ≥ 75 (98.67% efficient) or even βx ≥ 200 (99.5% efficient) at the most critical particle sizes.

4. Consider the Application:

   • Pressure Line Filters: Often require very high Beta values (e.g., β5 ≥ 200) to protect sensitive components immediately downstream.

   • Return Line Filters: Typically have slightly lower Beta values (e.g., β10 ≥ 75 or β10 ≥ 200) as they clean the fluid returning to the reservoir.

   • Off-Line Filtration (Kidney Loop): Can employ very fine filtration (e.g., β3 ≥ 1000) to super-clean the oil without impacting the main system's flow or pressure.

   • Breather Filters: Essential for preventing airborne contaminants from entering the reservoir; often rated in microns but implicitly contributing to overall cleanliness.

5. Balance Performance with Cost and Flow: While higher Beta values are generally better, there's a point of diminishing returns. Filters with very high Beta values are typically more expensive and can have higher pressure drops, which might impact system flow and energy consumption. It's about finding the optimal balance for your application.

6. Monitor Oil Cleanliness: Even with the best Beta-rated filters, continuous monitoring of oil cleanliness (through oil sampling and analysis) is crucial. This verifies that your filtration strategy is effective and allows for timely intervention if contamination levels rise.

The Beta Value as Your Reliability Barometer

The Beta value of a hydraulic filter is far more than just a number on a specification sheet. It is a scientifically derived, standardized indicator of a filter's ability to protect your hydraulic system from its most pervasive enemy: contamination.

By understanding what the Beta value represents, how it translates into filtration efficiency, and its direct correlation with oil cleanliness, you empower yourself to make informed decisions that profoundly impact your system's reliability, longevity, and overall operational cost. Investing in filters with appropriate Beta values isn't an expense; it's a strategic investment in the health, performance, and future of your valuable hydraulic machinery. Make the Beta value your trusted guide in the relentless pursuit of hydraulic excellence.
