Choosing the Right Hydraulic Motor Spare Parts: Gear vs. Vane vs. Piston

Hydraulic motors are the heart of your portable equipment. They convert the pressure of fluid into rotary motion, which powers all kinds of winches and track drives. When one breaks, it is important to know what type of motor you own--and what spare parts are essential for getting back up and running quickly.

This is a brief overview of the main differences between the three major kinds of hydraulic motors, as well as the parts that you'll likely require for each.

1. Gear Motors: The Workhorse for Simplicity and Economy

The way they work, Gear motors make use of pressurized fluid that is used to move two intermeshing gears, one of which drives an output shaft. They are well-known for their efficiency, reliability, and reliability.

Gear Motor Features and Performance

• Feature: Gear Motors

• Common Usage: Lower-power mobile applications like motor drives, small conveyors, and additional functions..

• performance: Characterized by speedy rates, lower torque as well and moderate pressure capabilities.

• Failure Mode:

  • Mechanism Wear and tear inside (specifically erosion of gear teeth as well as the housing).

  • The reason: Primarily due to contamination.

  • The result: A loss of volumetric efficiency (which manifests itself as the motor's operational speed in a slow speed).

Critical Spare Parts for Gear Motors:

• Seal Kits: A common point for failure. They typically contain O-rings and shaft seals to stop leaks from both the outside and inside.

• Bearings/Bushings: Worn bearings are an important indicator of the end of life, typically caused by improper line of sight or excessive load on the side.

• Gears/Gear Sets. Although you typically repair the whole motor in case you find damaged gears, a reputable repair facility might be able to repair housing and gears as well as the housing to bring the motor back to its original specs.

2. Vane Motors: The Choice for Smoothness and Efficiency

What they do: Vane motors have a rotor that turns inside the cam ring. Vanes move in and out of rotor slots, which trap and push the fluid when the rotor rotates. They are admired for their quiet operation and higher performance than gear motors.

Vane Motor Features and Performance

• Common Use:

  • Medium-duty mobile applications require smooth, steady motion.

  • For example, feed drives and certain equipment for material handling.

• Performance:

  • Moderate the torque and pressure capabilities.

  • Exhibit excellent volumetric efficiency.

• Failure Mode:

  • Vane tip wear.

  • Abrasions to the cam ring.

  • The most common cause of this is due to treated water or high pressure in the system.

Critical Spare Parts for Vane Motors:

• Vane Kits. They include vanes, the rotor, and occasionally the cam ring, as well as side plates. It is the most worn component and the most frequently used component to purchase for repair.

• Pressure Plates/Side Plates. These parts keep the rotor and vanes in the correct position. Plates that are worn or scored will dramatically reduce the efficiency and will need replacement.

• Seal Kits. They are essential to maintain the seal between chambers and to prevent external leakage.

3. Piston Motors: The Powerhouse for Heavy-Duty Performance

What they do: Piston motors (axial or radial) utilize a number of pistons that convert high-pressure fluid to rotary motion. The most intricate and durable of the three. They are designed to withstand extreme pressures and high-performance applications.

Absolutely! Here are the details about Piston Motors formatted into bullet points that are clear and concise.

Piston Motor Features

• Usage: Heavy-duty applications such as large cranes, excavators, and hydrostatic transmissions, along with the main drive system.

• Performs: Offers the highest torque and pressure ratings in addition to an outstanding power density and efficiency..

• Failure mode: Most often, it involves massive external damage (e.g., piston seizure, shoe failure) due to excessive heat or contamination, or high tension spikes.

Critical Spare Parts for Piston Motors:

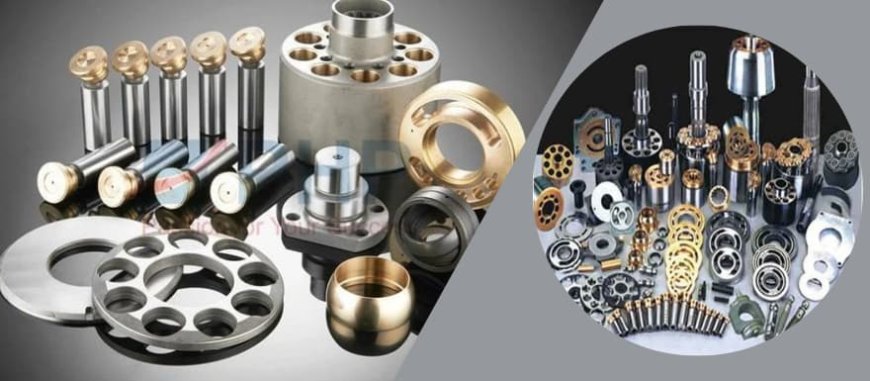

• Kits/Rotation Groups: The HTML0 kit is by far the largest spare part kit that includes the pistons, the cylinder block, valve plate, and other retaining mechanisms (swash barrel, plate, etc.). The damage here is often a requirement for the replacement of all components.

• Piston Shoe Kits: The individual piston shoes may fail due to wear and tear on the surface and loss of lubrication, which is a typical early-stage failure point.

• Bearing Kit. The high-pressure operation puts immense stress on the main bearings. Good-quality Bearing kits are crucial for professional repair.

• Seal Kits Because of the high pressure and complexity, sealing kits for piston motors are much more complex; however, they are just as important as the other types of motors.

Key Takeaway: Contamination is the Enemy

Whatever the case, whether you use an engine, vane, or piston motor, contamination with fluid is the primary cause of premature failure and the requirement to purchase spare components. When you are looking for spare parts, be sure to address the root cause of failure, which usually will require replacing the hydraulic filters and testing your quality of the liquid hydraulic.

To ensure the durability of your new spare parts, make sure to use OEM or premium replacements from a reputable supplier. A poor seal or a sub-par bearing is likely to cause cost-intensive downtime in the future
