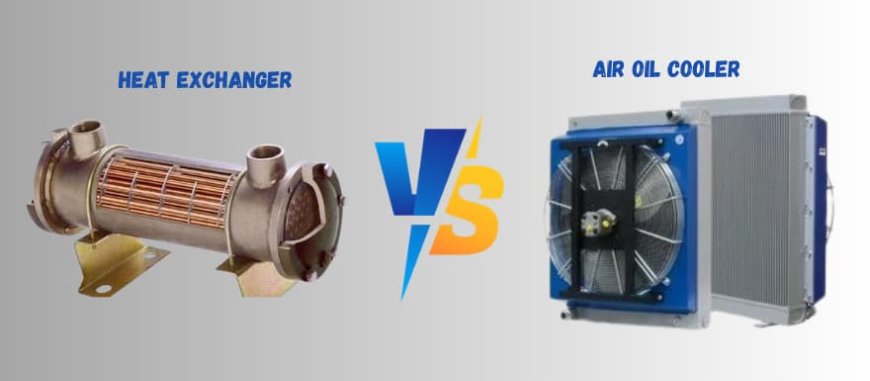

Is an Oil Cooler the Same as a Heat Exchanger in Hydraulics?

An oil cooler isn't technically distinct from the heat exchanger used in hydraulics; however, this distinction can be subtle and mostly dependent on the specification and the context.

In the field of hydraulic engineering In the field of hydraulic engineering, the term "oil cooler" refers to oil cooler is a particular kind of apparatus, whereas it is a heat exchanger is the more general category it is part of. Simply put, all oil coolers are heat exchangers. However, not all heat exchangers are also oil coolers. The former is focused on cooling oil, which is an essential role in any hydraulic system with high performance. This particularization is crucial to keeping the effectiveness and durability of machines that rely on the power of fluids.

The Universal Principle: What is a Heat Exchanger?

In essence, the simplest definition, a heat exchanger is a device designed to transfer heat (heat) across two or more liquids (liquids as well as gases) that are of different temperatures, and are often but not always separated by the use of a solid barrier. This is a key concept in thermodynamics, which allows heat to move between a hotter and one that is cooler without the two mixing.

Heat exchangers are the unnoticed heroes of many commercial, industrial, and even household applications. They can be found everywhere, from the radiator in your car to huge chemical processing facilities. They are utilized for the purpose of cooling (removing heat) as well as heating (adding heat).

Examples of the broad spectrum of heat exchangers comprise:

• Boilers convert heat produced by combustion gases to heat the water (heating).

• Condensers convert heat generated by hot gases or vapors into an ice-cold fluid to alter its condition (cooling/phase shift).

• Intercoolers transfer heat generated by compressed air into the ambient air (cooling).

In the realm of the hydraulics industry, one primary application is, of course, the removal of heating from hydraulic fluids.

The Specialist: What is a Hydraulic Oil Cooler?

The oil cooler in a hydraulic system is, by definition, an exchanger whose sole and explicit objective is to lower the temperature of hydraulic liquid (oil).

Hydraulic systems, due to their nature, produce heat. This is because of several inexplicable causes:

1. Friction The flow of fluid through pipes, hoses, and over internal components' surfaces.

2. Pressure Drop: The flow of fluid through orifices, valves, and restraints.

3. Mechanical inefficiencies are the heat produced by motors and pumps.

If the heat isn't eliminated, the temperature of the hydraulic oil will increase steadily. Overheating is the most frequent threat to a hydraulic system. It can lead to:

• Lower Oil Viscosity The oil gets thinner it, which decreases its lubricating capabilities and also increases internal leakage. This reduces the efficiency of the system and accelerates wear on components.

• oil degradation (Oxidation): High temperatures accelerate the degradation of oil, which results in the formation of sludge and varnish, and acids.

• Damage to Components and Seals: High temperatures can cause cracks, hardening, or melt elastomeric gaskets and seals that can lead to catastrophic leaks and eventual system failure.

The oil cooler is an important component to keep your oil in its ideal operating temperature, which ensures the system is running efficiently and effectively, and increases the lifespan of the fluid and its parts.

The Two Most Common Types in Hydraulics

The main distinction that separates coolers for hydraulics that cool oil is the second medium they utilize to disperse heat away from hot hydraulic oil.

1. Air-Cooled Oil Coolers (Oil-to-Air)

• The principle: These operate much as a car's radiator. Hot hydraulic fluid flows through tubes as well as fins (the core). Motor-driven fans push ambient air to the fins, dispersing this heat straight into the air.

• Benefits: These are fully self-contained and relatively simple to install and do not require an external cooling source (like water). They are extremely common for mobile devices (e.g,. agricultural machinery, construction equipment).

• Pros: Their cooling capacity is highly dependent on the temperature of the air around them. In hot climates, they can not be as effective or require a large dimension.

2. Water-Cooled Oil Coolers (Oil-to-Water)

• The principle: These typically use the tubes and shell as well as a plate design. The hot hydraulic fluid flows over one side of the barrier (either within tubes or between plates), and a stream of cold water (or a mixture of water and glycol) flows on the opposite side. The heat is transferred from the oil to the water.

• Advantages: Water is significantly more efficient medium for heat transfer than air, which makes these coolers smaller for the ability to absorb heat. They are perfect for use that requires a constant supply of cool water is readily available (e.g. vessels in the marine sector and injection molding machines, generators of power).

• Con: They require an external source of fresh cooling water, but this isn't always accessible, and they are susceptible to corrosion and scaling on the water's surface and require more frequent maintenance.

The difference between specialization and. Generalization: What is the significance of the terminology

Although any technician in the field of hydraulics will be able to recognize the meaning of the "oil cooler" is and it's a type of heat exchanger, the exact wording emphasizes its role in the system of hydraulics.

• Heat Exchanger (General Definition): This term is applicable to any device that facilitates heat transfer. It can be utilized for cooling or heating or cooling, as well as for any fluid.

• oil cooler (Specialized term): This term specifically refers to a heat exchanger specifically designed and selected for cooling hydraulic fluid. The design aspects of the oil cooler (e.g., pressure rating and the compatibility of fluids, flows, and the capacity to remove heat) are specifically tailored to the viscosity of hydraulic oil as well as the operating environment.

In the course of documentation and in conversation,s you'll often hear them referred to interchangeably within the field of hydraulics, such as for instance "hydraulic heat exchanger" or "hydraulic oil cooler," both of which refer to the same cooling purpose. However, the term "oil cooler" specifically commits the equipment to the task of cooling fluid, thereby defining its function in the management of thermal energy of hydraulic fluid.

The most important thing to remember is that an oil cooler is basically a particular application of larger technology of heat exchangers designed to prevent thermal runaway and secure the core in your system's hydraulics.

In conclusion, although it is an essential type that acts as a heat exchanger, its specific purpose as a crucial protector against damage caused by heat in a hydraulic circuit makes the designation of a specialized one entirely suitable.
