Explain the mechanism of energy storage and release in a hydraulic accumulator?

Hydraulic systems comprise the foundation for modern machinery, ranging from construction equipment to aircraft control. They depend upon an incompressible liquid (hydraulic oil) to transfer the force. To manage the ever-changing needs for power, to withstand the effects of pressure surges, and give flashes of energy, engineers use an innovative device called the hydraulic accumulator.

The most frequent term is "hydraulic battery." The accumulation device is used to store energy potential and release it swiftly. The system is a great illustration of using gas compression to control fluid power.

The Core Mechanism: Gas-Fluid Separation

The most commonly used and efficient type of accumulator available is its hydro-pneumatic model, which is based on the compression of inert gas, usually nitrogen ( $\text_2$), to store energy.

The accumulator vessel is divided into two chambers, which are separated by a barrier

1. Gas Chamber: Contains pre-charged, compressed nitrogen gas.

2. Fluid Chamber It is connected to hydraulic circuits and contains an oil reservoir for hydraulics.

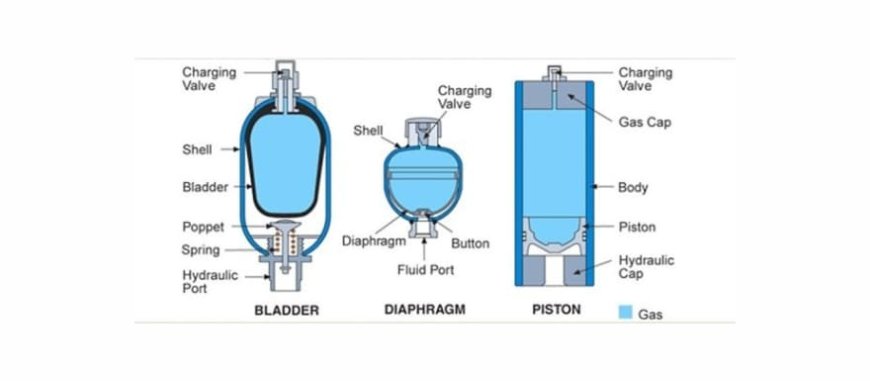

The separating element will ensure that the non-compressible fluid in the hydraulic system and the compressible gas don't mix. Based on the design, this barrier can be:

• Bladder: A flexible, balloon-like rubber element (most common).

• Piston: An open-air, sealable piston.

• Diaphragm: A flexible membrane.

Energy Storage: Compressing the Gas (Charging)

The storage of energy is the process of converting the kinetic energy of the hydraulic fluid flowing to the potential energy of compressed gases.

The Charging Cycle:

1. Pre-Charge Prior to the system's start, the gas side gets filled $textN2($) according to the pre-determined prior-charged tension ( $P_0$). This pressure is set to ensure that the separating component (e.g., the bladder) is completely expanded and takes up the majority of the shell.

2. Fluid Entry If the pump's hydraulic is in operation and the demand for the system is not high (or the flow rate of the pump is high), the pressure of the pump's output ( $P_$) is higher than that of the pressure at which it was charged ( $P_ > P_0$).

3. compression: Higher pressure from the fluid entering the system causes the separating component to be moved, compressing the nitrogen gas into a smaller amount.

4. Energy Storage: The work performed through the pumps to press the fluid against the gas is now converted into potential energy in the extremely compressed nitrogen. The gas pressure continues to increase until it reaches equilibrium at the highest system pressure.

The charging process is based on Boyle's law in the case of gas (Volume is in inverse proportion to pressure). This means that as the volume of gas decreases, the pressure will increase drastically.

Energy Release: Expanding the Gas (Discharging)

This stored power is re-released into the hydraulic circuit after pressure drops in the system or an abrupt, high demand for flow occurs.

The Discharging Cycle:

1. Pressure drop: An important actuator (like the large cylinder) is suddenly activated and requires a flow rate that is higher than the amount that the pump can provide, causing the tension in the system ( $P_$) to decrease.

2. Gas Expansion Since the pressure of compressed nitrogen is higher than the pressure of the system, the compressed gas expands rapidly..

3. Fluid Discharge Gas that is expanding is pushed by the separator element, which will then force the hydraulic fluid that is stored out of the accumulator, returning it to the hydraulic circuit.

4. Additional Power Instantaneous surge of gas boosts the pump's output, supplying the necessary flow and power to the actuator. This process is repeated until the gas is expanded back to the lowest effective pressure (usually that of the pressure before charging).

In essence, the accumulator's hydraulic function smoothes out the energy profile of the system, which allows an efficient pump to handle huge, brief demand periods by conserving energy during times of low demand.

Key Functions of the Accumulator

The mechanism for energy storage and release plays a variety of critical roles in the design of hydraulic systems:

• Energy Storage allows the usage of less costly pumps, while the accumulator manages the demand for energy at peak.

• Pulsation Dampening: It absorbs the ripples in pressure caused by the pumps (especially piston pumps) to protect pipes and seals.

• Shock Absorption Functions as a cushion for surges in pressure (hydraulic shock, also known as "water hammer") caused by the rapid closing and opening of valves.

• Leakage Compensation: The system is kept under pressure by adding small amounts of fluid to help compensate for small leaks. It also prevents the primary pump from running between on and off.
