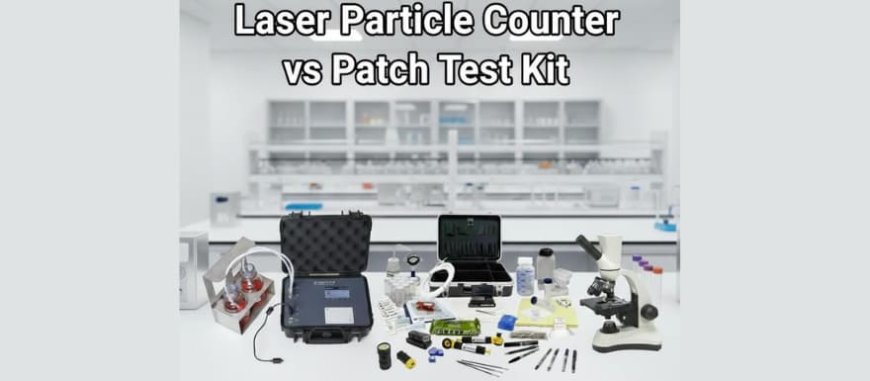

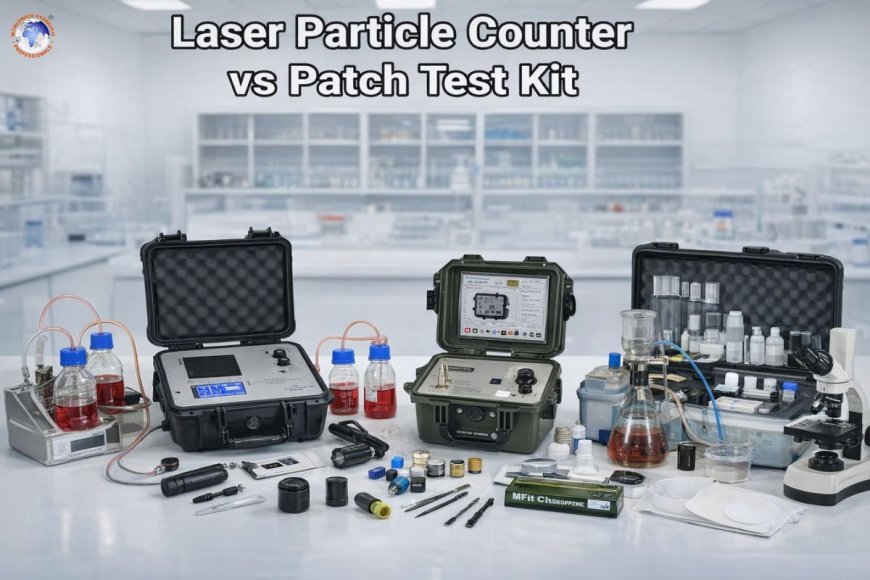

Laser Particle Counter vs Patch Test Kit with Digital Camera Microscope

The purity of the hydraulic fluid is a must for long-term reliability and longevity. When the possibility of contamination arises you require quick precise and reliable answers. Which tool should you use to determine the best? It could be the Hydraulic Laser Particle Counter or the reliable patch test kit that comes with a Digital Camera Microscope?

Let's take a look at the ultimate battle between these two essential methods of fluid analysis.

The High-Tech Contender: Hydraulic Laser Particle Counter

Laser particle counter is the latest, method for fluid analysis that is quantitative. It's the electronic, high-speed professional in the contamination control industry.

How It Works

The laser counter serves as a source hydraulic fluid through the sensor. A laser beam shines through the fluid and as particles move through the beam and through the beam, they hinder or block light. A photo-detector monitors the changes in light intensity that is later translated using an algorithm to calculate a particle's dimension and number.

Pros of the Laser Counter

• quantitative and objective It provides highly precise, numeric particle counts and distributions of size, typically reported in ISO 4406 or NAS 1638 cleanliness codes. This removes the subjective nature of a visual inspection.

• Speed and Automation Results are delivered almost instantly and is ideal for live, on-site, as well as ongoing (online) monitors. It's a fast high-throughput technique.

• Accuracy: Ideal for monitoring tiny particles that are crucial to clearances in hydraulics.

• Environmental Benefits: Eliminates the need for chemical solvents (like ODSs or petroleum spirits) frequently employed in testing of patches.

Cons of the Laser Counter

• Interferences Light blockage devices are unable to differentiate from Air bubbles and solid particles and droplets of water and can result in incorrectly high particle counts. (Advanced Direct-Imaging Laser Counters help in this).

• Cost and calibration: These instruments cost considerably higher priced than patch kits and require regular calibration by a professional to ensure accuracy.

• Criteria for Sample Prep An improper agitation of the sample or degassing (to get rid of air bubbles) can seriously affect the accuracy of reading.

The tried-and-tested method Patch Test Kit Digital Camera Microscope

Patch testing is an established method that provides an effective evaluation of morphological and visual contamination.

How It Works

A measured quantity in hydraulic fluid drained or moved through an extremely very fine screen (the "patch"). The particles of solid are absorbed by the surface of the membrane. The patches are then dried (often using the use of solvent) and inspected with an inexpensive microscope, usually equipped with digital cameras to take, magnify and show an image onto a display.

Pros of the Patch Test Kit

• Morphological Analysis (Particle Shape): This is the greatest benefit. The microscope permits a skilled technician to observe the particle's form, shape and even their texture. This information in the visual is vital in determining the origin of contamination (e.g. cutting wear or the wear of fatigue, corrosion fibers, dirt ingress).

• Low cost and portability: Patch kits are cheap robust, durable and transportable for use in the field.

• Insensitive to air and water: Because the process is able to capture only solid particles on the membrane The results are unaffected by the dissolved or infiltrated air or water within the oil unlike other basic laser counters.

• Flexibility: Can be used to study fluids that have very high viscosity, or with heavy contamination by altering the volume and dilution of the sample.

Cons of the Patch Test Kit

• The subjectivity of HTML0 and the variability The estimation of an ISO code by comparison of the patch image with the chart of reference is less precise and more subjective than a computer-generated count which can lead to a wide range of operators.

• Time-Consuming Filtration, rinse drying, rinsing, and microscopically-analyzed steps result in the test being more slow than an actual laser counter.

• relies on solvents The traditional method of patching usually requires filtering solvents to wash and dilute this can create the complexity and raise environmental concerns (though non-hazardous alternatives are readily available).

The Verdict: Choosing Your Weapon

Both tools are not "better"--they offer distinct, complimentary types of data.

To have a reliable fluid analysis software, try to utilize two of them:

1. Utilize laser Particle Counter for: routine monitoring at high frequency to rapidly track your fluid's ISO cleanliness and identify when the levels of contamination exceed an important threshold.

2. Utilize this Patch Test Kit to conduct: Diagnostic analysis--whenever the laser counter shows the presence of high-quality particles The patch test lets you to examine the debris and determine if the particles are harmless (e.g. fibers, atoms) or evidence of serious wear and tear on the machine.

The choice isn't about which tool is "better," but rather which tool is best suited for the job at hand.

Which Application is Good for Which Tool?

• Laser Particle Counter is Good for:

  • Filter Performance Tracking: Precisely monitoring the oil's cleanliness after the filter to measure efficiency.

  • Continuous Online Monitoring: Being permanently installed on critical equipment for instant, real-time data streams.

    Compliance & Trending: Generating objective, auditable data (ISO Codes) for warranty and maintenance records.

• Patch Test Kit is Good for:

  • Particle Identification: Distinguishing between harmful contaminants (like silica dust or metal flakes) and benign contaminants (like cloth fibers).

  • Handling High Contamination: Analyzing heavily contaminated oils that might overwhelm the sensor of a laser particle counter (though dilution is often still required).

  • Initial Screening: A rapid, low-cost check before sending a sample to a lab, or to quickly verify a large failure event.
