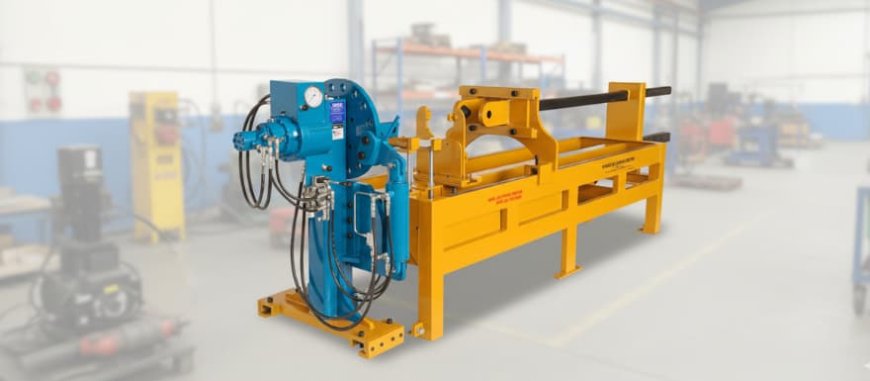

Why Hydraulic Cylinder Repair & Test Benches are Non-Negotiable?

Hydraulic cylinders are the powerhouse of industry. They are the engines behind presses, excavators, lifts, as well as machinery around the world. If a cylinder is damaged, production ceases. Ensuring that a damaged cylinder is not just fixed, but also performs flawlessly under loads is essential. This is why the specialized Hydraulic Cylinder Repair and Test Bench goes from being something that is a luxury to an essential.

More Than Just a Vice: The Role of the Repair Bench

Modern repair benches are far more than just a sturdy surface. It's an entire station designed for accuracy, power, and safety.

1. Controlled Disassembly and Assembly

The sheer force and size that are required by large hydraulic cylinders require mechanical support. The test bench offers:

• Controlled Torque. By using hydropower, the bench is able to effectively apply the massive force required for loosening and tightening gland nuts (cylinder head and cap) as well as piston nuts for retaining. This helps to prevent damage to the components and makes sure they are torqued to the exact and specified factory torque.

• Safety and Ergonomics: By securely holding the cylinder, the bench can eliminate the risky, manual struggle that is often associated with disassembly, safeguarding technicians from injuries.

2. Rod Straightness and Alignment Verification

The bent rod of a piston can be the most common cause of seal failure and system failure. When a cylinder has to be reassembled, the bench may be equipped with special tools to:

• Verify straightnes. Verify the accuracy of your rod by looking for slops or deviations that could result in premature wear on the seal or even binding within the barrel.

• Verify Alignment: Make sure the rod is aligned with the barrel when the reassembly process to ensure smooth, non-friction operation.

The Crucial Stage: The Hydraulic Test Bench

A "test" bench, which is often integrated into the repair station, is the most important aspect of the entire process. It's the only way to confirm that a repaired cylinder is in good condition to be used again in the market in a highly-demanded application.

1. Pressure Integrity and Leak Testing

A repaired cylinder has to prove that it is able to hold its pressure without leakage or failure.

• Internal Leakage (Bypass) Test: This is the most crucial test. Hydraulic fluid is pumped through one side of the cylinder, and the difference in pressure and flow rates is measured at the opposite end to determine the bypass of the piston seal. A high degree of bypass indicates that the piston seals have failed, and the cylinder will move under the pressure.

• External Leakage Test: The bench pressurizes the cylinder to its highest working pressure. Technicians then examine the seals on the rod ports, connections, rod seals, and weld seams to determine if there is any drips or weepings that are external to the cylinder.

2. Functionality and Drift Testing

The bench mimics operating conditions to test the performance of:

• Stroke Functions: The cylinder is extended and then retracted completely several times to ensure smooth, steady motion over the entire length of the stroke.

• Drift Test: The cylinder is placed in an intermediate position while under continuous elevated pressure, for a predetermined duration (e.g., 30 minutes). The system is able to measure every movement or shift that the piston makes, which confirms the reliability of the holding valve and piston seals.

3. Proof Pressure Testing

In certain critical situations, the cylinder will be placed under a "Proof Test," where it is pressurized for a short period to a point higher than its working tension (e.g., 1.5 times the maximum work pressure) to make sure that the structural integrity is maintained without causing damage.

Benefits of Using Hydraulic Cylinder Repair & Test Benches

Test benches that are dedicated to testing offer significant functional advantages that go beyond basic repair:

• Guaranteed Reliability

  • Effect: Reduces the chance of premature field failure, effectively avoiding expensive emergency call-outs as well as unexpected downtime.

• Quality Control

  • Impact: Offers documented proof (test report) to show that the cylinder is in compliance with or surpasses Original Equipment Manufacturer (OEM) specifications for performance.

• Increased Safety

  • Impact: Ensures that components with high pressure are solid and substantially reduces the likelihood of catastrophic failure in operation.

• Efficiency

  • The impact: Centralizes the power and tools needed and drastically reduces the amount of duration needed for a complete overhaul of a cylinder and a test cycle.
