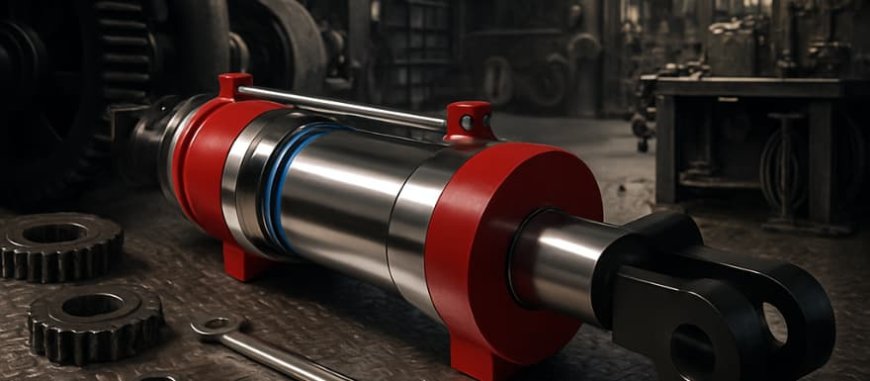

The Evolution of Actuation: How a Smart Hydraulic Cylinder Works

Hydraulic cylinders serve as the backbone of many industries, from agriculture and construction to manufacturing. They transform the power of fluid into linear movement, producing enormous force. But in the era of Industrial Internet of Things (IIoT), a basic mechanical device won't suffice. This is why we have the smart Hydraulic Cylinder, A device that can bring technology to brute force.

The Core: A Standard Hydraulic Cylinder

In its core, the smart cylinder works in the same way as its counterparts in the traditional sense:

1. Fluid Power Hydraulic fluid that has been pressurized (oil) is delivered into one of the chambers of the cylinder (either the rod or cap).

2. Force Generation: The fluid pressure is a force that affects the piston's surface.

3. Linear Motion The force pushes the piston as well as its rod inwards or outwards and performs work.

The "Smart" Component: Integrated Technology

What makes a hydraulic cylinder "smart" is the combination of transducers, sensors, and, sometimes, embedded microprocessors. These components record crucial operational data:

1. Position Sensing

The most essential aspect of data is the location on the piston rod. It is normally measured by:

• Magnetostrictive Sensors. These sensors are typically located inside the bore of the cylinder or built in the rod. They make use of the interaction between magnetic fields and pressure pulses (generated through magnetic constriction) for determining the precise rod's extension, with a high degree of accuracy.

• Linear Encoders/LVDTs Sometimes, mounted either internally or externally the sensors provide continuous feedback on linear motion.

Benefits: This real-time positional feedback permits closed-loop controlling (where the actual position is always compared to what is desired) that allows highly precise movement as well as the synchronization of multiple cylinders and improved quality of process consistency.

2. Pressure Monitoring

Transducers for pressure are placed strategically, usually near points on the rod to gauge the pressure at both the cap and rod ends.

The benefit: Pressure data is crucial to:

• Force Calculation Understanding the force and the area of the piston will allow for the system controlling it to precisely determine how much force the cylinder exerts.

• Load Monitoring: Monitoring overloads and sudden load fluctuations.

• Leak Detection: The sudden or gradual pressure drops could indicate leaks that are external or internal.

3. Temperature Sensing

Sensors for temperature track the cylinder's body as well as that of the hydraulic fluid.

Benefits: Excessive heat is the main enemy of hydraulic systems, deteriorating seals as well as the fluid itself. Temperature data helps:

• Prevent Overheating: Alerting operators before damage occurs.

• The monitoring of the fluid condition: High temperatures can signal problems with the hydraulic valve, pump or the need for cooling of the fluid.

4. Data Processing and Communication

The information gathered by the sensors has to be processed and then shared. Microprocessors and integrated electronics handle this:

• Signal Conditioning Sensor data that is raw gets cleaned and transformed into digital signals.

• data aggregate: Cylinders can combine pressure, position, and temperature measurements.

• Communications: The data is transmitted wirelessly (e.g., through WiFi, Bluetooth, or cellular networks) or via an industrial protocol wired (e.g., Ethernet/IP PROFINET, IO Link, etc.) to the PLC (Programmable Logic Controller), an SCADA system, or cloud platform.

In the simplest sense, a smart hydraulic piston transforms a powerful but ineffective actuator into a self-aware, communicative component that makes hydraulic systems not just more powerful; however, they are also much more efficient and reliable.
