Why Are Hydraulic Hoses Failing Prematurely?

Hydraulic hoses are the essential arteries of any fluid power system, designed to handle immense pressure and transmit power reliably. Yet, they are often the most vulnerable component, and their premature failure is a leading cause of machinery downtime. A failed hose isn't just an inconvenience—it can be a safety hazard, causing fluid injection injuries or major environmental spills. Understanding why these tough components fail before their time is the critical first step in preventive maintenance. The root causes of early failure almost always boil down to three main categories: External Damage, Improper Installation, and System Abuse.

 1.  External & Environmental Damage

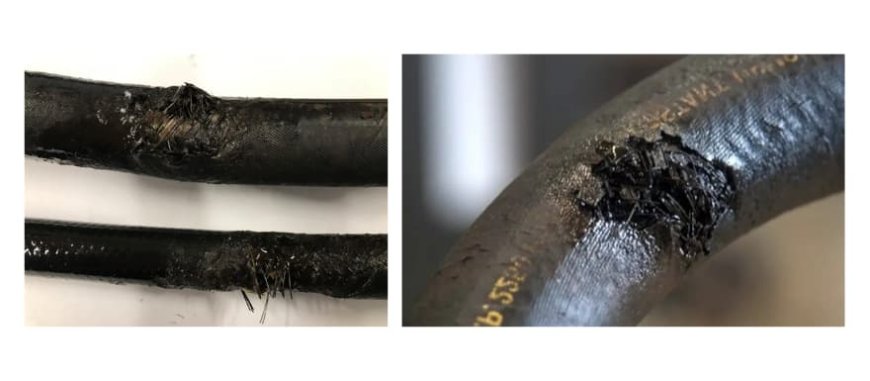

 The outer cover of a hydraulic hose is its first line of defense. When this cover is compromised, the inner reinforcement wires (braids or spirals) are exposed to moisture and corrosion, leading quickly to a loss of pressure rating and a catastrophic burst. Abrasion: This is the most common cause of premature hose failure. It occurs when a hose rubs repeatedly against another hose, a sharp edge, or a metal part of the machine due to improper routing or a lack of secure clamping. The friction quickly wears away the protective rubber cover, exposing the reinforcement layer. Prevention: Use protective sleeves, spiral wraps, or route hoses away from contact points. Use clamps to secure hoses and prevent movement. Impact and Crushing: Hoses routed in vulnerable areas can be crushed by equipment traffic or suffer sudden damage from falling objects, rocks, or sharp tools. A hose that is visibly crushed is permanently damaged and should be replaced immediately.

Extreme Temperatures (Heat Aging): Operating a hose beyond its specified temperature range accelerates the degradation of the rubber materials.

High Heat: Ambient heat (eg, from an engine or exhaust manifold) or fluid that is too hot causes the rubber to harden, become brittle, and crack, leading to a loss of flexibility and eventual failure.

Prevention: Use heat shields, route hoses away from high-temperature components, and ensure the hydraulic system's cooler is functioning properly to prevent fluid overheating.

 2.  Improper Installation

The reason for many failures is not the quality of the hose itself, but errors made in its assembly and installation. These mistakes introduce stresses that the hose was never designed to withstand. Minimum Bend Radius Violation: Every hydraulic hose has a Minimum Bend Radius—the tightest curve it can handle without kinking or stressing the reinforcement. Bending a hose too tightly damages the reinforcing wire and restricts fluid flow, leading to localized pressure spikes and failure, often near the fitting.Prevention: Always check manufacturer specifications. Use longer hoses or angled fittings (45° or 90°) to navigate tight corners instead of forcing a sharp bend.

Hose Twisting (Torsion): Installing a hose with a twist, or allowing it to twist during operation, is extremely damaging. A twist of justice can reduce the life of a hose by up to 90%. Twisting causes the reinforcement layers to separate and weaken.

Prevention: Use the layline (the manufacturer's stripe printed along the hose) as a visual guide. Ensure the line remains straight, proving the hose is not twisted during installation or operation. Incorrect Assembly /

Crimping: Failure at the fitting (the hose blowing out of the coupling) is often due to improper crimping or using mismatched hose and fitting components.

Prevention: Only use fittings and hoses from the same manufacturer that are designed to be a "matched system." Assemblies should be made by trained personnel using calibrated crimping equipment

.3.  System & Fluid Abuse

Internal issues related to the hydraulic fluid itself can attack the hose from the inside out.Pressure Surges and Impulse Fatigue: While a hose is rated for a maximum Working Pressure, many systems experience brief, intense spikes or pressure surges that exceed this rating. Constant, high-frequency pressure cycling (impulse) slowly fatigues the wire reinforcement, leading to micro-cracks and eventual failure. Prevention: Select a hose with a pressure rating well above the system's normal operating pressure. Ensure pressure relief valves are correctly set and functioning to manage surges. If the wrong fluid is introduced, it can chemically deteriorate, swell, soften, or crack the inner tube.

Prevention: Always check the chemical compatibility of the hose material with the chemical resistance chart and the fluid on hand. Never mix different fluid types without referring to compatibility charts. Internal

Contamination (Erosion): Contaminants such as dirt, metal chips, or debris in hydraulic fluid behave like small abrasive particles. Driven by high flow velocity, these particles may erode the inner tube, making it thinner until it eventually leads to a leak or burst.

Prevention: Implement close fluid cleanliness tolerances, regularly change filters, and make sure your hoses are well flushed before installation to remove manufacturing debris.

The Proactive Approach

You will be able to prevent premature hydraulic hose failure if you handle matters with attention to detail and proactive inspection. You can extend the life of your hydraulic hoses and reduce downtime when you follow the manufacturer's installation guidelines, protect the hoses against external threats, and ensure that your fluid is clean and within operating specifications.
