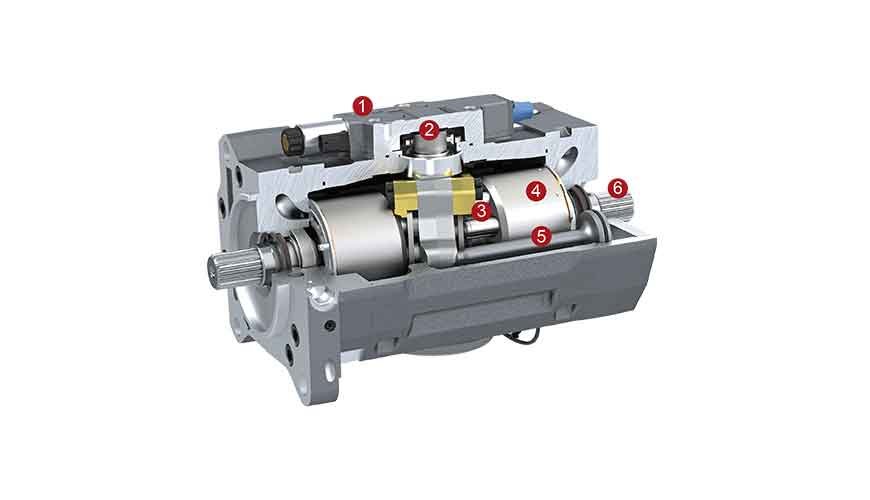

Linde HMV-02 Motors

Displacement size from 55 to 280 cc.

Variable Displacement Motors For Closed and Open Loops

jerk-free low speed

high starting torque

large conversion range

zero angle possible

dynamic response

PTO through-drive motor

compact design

high power density

high reliability

long service life

Design characteristics:

axial piston motor in swashplate design for high pressure closed and open circuit systems

optimized starting and low speed behaviour

purge valves for circuit and case flushing optional

stepless or 2-position control

electric or hydraulic controls

superposed pressure control optional

brake pressure shut off optional

swivelling to 0 cc/rev

high pressure relief valves available

through shaft with free shaft end or with coupling flange

SAE high pressure ports radial or axial

SAE mounting flange with ANSI or SAE spline shaft

plug-in version optional

speed sensor optional

double and tandem motor available

Controls:

H1 hydraulic stepless

H2 hydraulic 2-position

H4 hydraulic stepless Vmin= 0 cc/rev

E1 electro-hydraulic stepless

E2 electro-hydraulic 2-position

E4 electro-hydraulic stepless Vmin= 0 cc/rev

E6 as E4 with inverted shifting

EH1P-CA hydraulic stepless with pressure override and electric pressure selection
