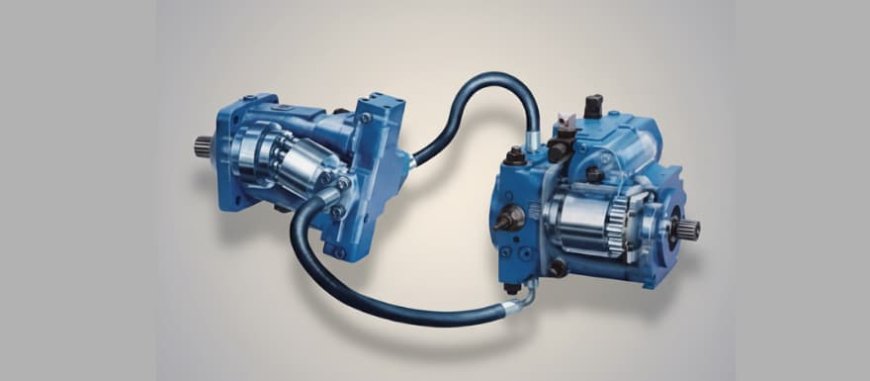

How Do Hydraulic Pumps and Motors Work Together in a Hydraulic System?

Ever wondered how the heavy machinery lifts massive loads, or makes an excavator arm that moves with precision? The unnoticed people who are responsible for this extraordinary control and power are typically two parts working perfectly in synergy: the motor and hydraulic pump. Although they sound like the same but they play distinct yet equally important functions in the hydraulic system. Imagine their functions as the heart, and muscular muscles that power the fluid.

Let's look at how these powerful partners collaborate to produce massive force and motion.

The Pump: The Heart of the System (Converting Mechanical to Hydraulic Power)

In its essence, it's focused on making flow. It's the device that transforms the mechanical power (usually generated by an electric motor or internal combustion engine) into hydraulic energy by means of pressured fluid flow.

Imagine a water pump at your home. It collects water from one location and then pushes it into another. A hydraulic pump performs something similar; however, it uses specially-designed hydraulic fluid (oil) and at greater pressures.

How does it work?

• The intake: The pump draws hydraulic fluid from the reservoir by suction lines.

• pressurization. Then, it uses an action that is mechanical (like vanes, rotating gears, and pistons) to push the water into the lines of hydraulics, thereby increasing its pressure.

• flow: The pressurized liquid is directed to the other components of the system, and is ready to work.

Without the pump, there would be no flow of fluid and consequently, there would be no power. It's the catalyst and the main motor that brings the hydraulic system up and ready to go.

The Motor: The Muscles of the System (Converting Hydraulic to Mechanical Power)

Once the pump has completed its work and sent an aqueous fluid to the pump, we require something that can actually complete the work and generate rotational motion. That's where the hydraulic engine is able to help. The hydraulic motor is basically it's a reverse pump. It uses the pressured hydraulic fluid and converts the hydraulic energy into mechanical energy, focusing on rotational speed and motion (torque as well as speed).

How does it work?

• Inlet Fluid from a pump that is pressurized pump is pumped into the motor hydraulic.

• For Generation, the incoming fluid at high pressure exerts pressure on the internal parts that make up the motor (gears, vanes, gears, or pistons), which causes them to spin.

• Outlet: Its fluid now with lower pressure leaves the motor and then returns to the reservoir through an exit line.

• Output: A rotating shaft from the hydraulic motor could then be connected to various mechanical components like wheels, conveyors, and winches for power.

The Symphony of Cooperation: Pump and Motor Together

The magic happens when you work in collaboration:

1. The pump pulls liquid out of the reservoir and then pushes it through the pipeline, resulting in high-pressure flow.

2. This high-pressure liquid flows through pipelines along with control valves.

3. When it is directed to the hydromotor, the pressure of the fluid works on the motor's internal mechanisms, making it's motor's output shaft turn.

4. The low-pressure fluid that has been pumped out is then released from the motor and is returned to the reservoir, where it will be cooled and filtered. It is then that the pump can draw it back in again.

This continuous cycle permits precise control of speed as well as torque and direction, which makes hydraulic pump-motor systems extremely versatile and efficient.

Applications Everywhere

You'll see this dynamic duo working in an array of applications:

• Construction Equipment: Excavators, bulldozers, cranes.

• Manufacturing Systems for conveying, presses Automation.

• Agriculture: Tractors, harvesters, loaders.

• Marine Thermosystems, Winches and Thrusters.

• Aerospace: Landing gear, flight control surfaces.

If you happen to observe a powerful machine in motion, think of the beautiful connection between the motor and hydraulic pump that is constantly changing energy into the right form to accomplish the task. They are the heart of industrial power today!
