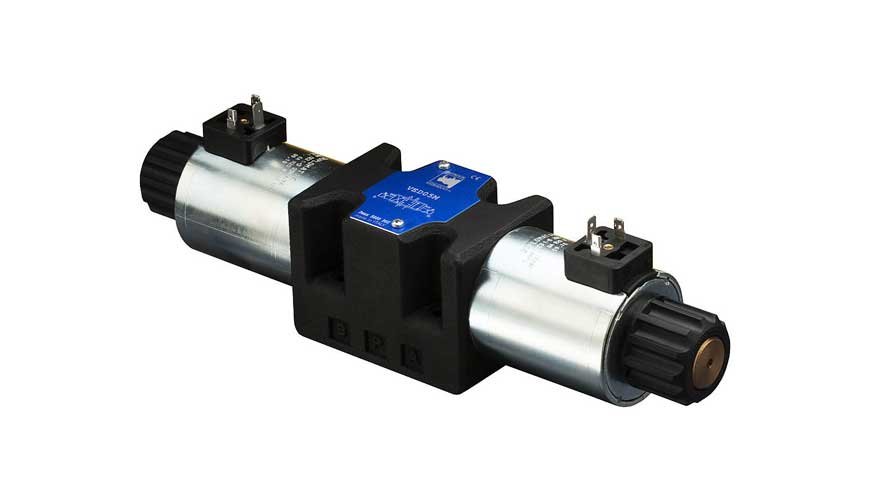

Continental VED-MX Servo - Proportional Directional Control Valve
Continental Hydraulics VED*MX, High Response 4-way proportional valve with precision lapped spool, dual position sensing LVDTs, and enhanced on-board digital amplifier. These valves conform to NFPA D05, D07, and D08 (ISO 4401) mounting standards.

Features and Operation
The VED*MX pilot operated 4-way proportional valves conform to NFPA and ISO 4401:2005 (CETOP RP 121H) mounting standards. The main spool position is controlled by a highly dynamic pilot valve in closed loop via a linear transducer LVDT for high precision, repeatability, and increased control.

Class-leading high-frequency response.

On-board digital control resulting in extremely low phase lag and high-frequency operation.

High-performance pilot valve.

High precision lap spools.

Dual spool position feedback.

High-flow pilot valve for high performance over a wider range of pilot pressures.

Mounting Surface: NFPA D05, D07, D08
Max Pressure: 5000 PSI (350 bar)
Flow Rate: Up to 105 GPM (400 lpm)
