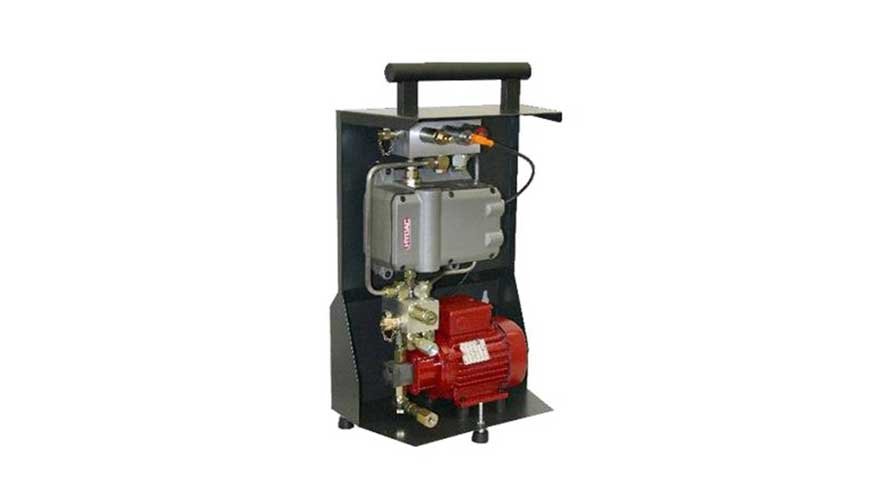

CSM 02 - Contamination Sensor Monitor

The CSM 02 multi-analysis system from Eaton monitors the hydraulic and lubrication systems’ fluids by determining the solid contamination and optional water saturation, temperature, viscosity and relative dielectricity. It can be used in stationary and mobile operations and operates in an off-line cycle independent from the system being measured.
Features
Optical particle counting with laser senor determines contamination classes
Upgrade with additional sensor modules to measure critical fluid parameters like water saturation, temperature, viscosity and relative dielectric constant
Ideal for analyzing foamed oils, e.g., in large gear boxes, test and flushing stands
Effective measurement system for verification of compliance of normative, commissioning, maintenance and quality control of hydraulic and lubrication systems for various industry fields
Measurement results are displayed on a touch panel Optional remote control via RJ45 interface (internet and intranet) Data transfer via RS 232 interface (optional with thermal printer)
Programmable alarm signals with switching contact and email alerts when limit values are exceeded
Internal storage of measurement results (20 x 250 measured values)
Applicable for mineral-oil based hydraulic and lubrication oils as well a natural (HETG) and synthetic esters (HEES)
