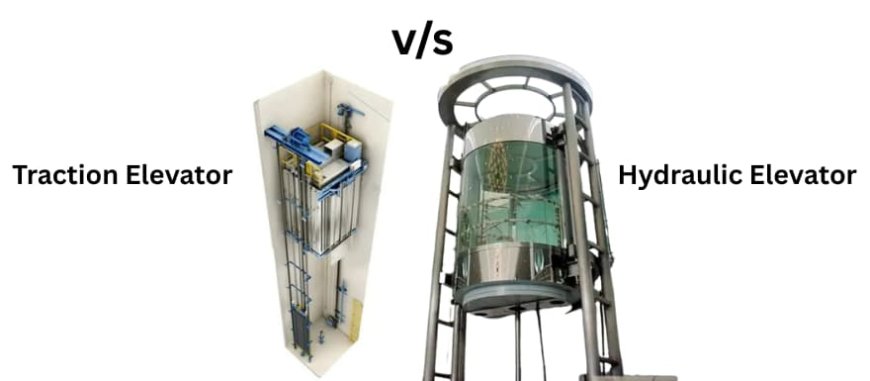

Elevator Showdown: Traction vs. Hydraulic

Imagine a world with no elevators. The climb to a 30-story structure would be an exhausting workout, and getting to higher floors in offices, hospitals, and even in homes is a slog. Elevators are often overlooked as the architects of the modern age, effortlessly and quietly moving us upwards and downwards.

Have you taken the time to think about how they operate? Beyond the stylish exteriors and polished surfaces, there are two main technologies competing to be the top vertical elevator: traction elevators and hydraulic elevators. The choice between them is crucial for any construction project, which affects everything from speed and cost to the efficiency of energy use and maintenance.

How They Lift - The Core Mechanics

The Traction Elevator: The Tug-of-War Master

Imagine the traction elevator as an elegant toss of war. This elevator is linked with belts or steel ropes, which are pushed over the wheel (called a sheave) sheave) located high above the hoistway. The sheave is powered by an electric motor that is powerful.

The most clever thing? The other end of these ropes is the counterweight made to match approximately the weight of the elevator car, plus 40-50 percent of its capacity. This balance means that the motor will only be able to exert enough force in order to overcome the differences between its weights, and not to lift the entire car or its passengers off the ground. It's remarkably efficient!

The Hydraulic Elevator: The Giant Syringe

Imagine the idea of a huge automotive jack or a huge Syringe. This is the way hydraulic elevators function. An electric pump pushes the hydraulic liquid (usually petroleum) from a reservoir into a piston. The fluid pushes a piston (or "jack") upwards and directly lifts the elevator car above. For the elevator to descend, a valve allows the liquid from the reservoir, and gravity then takes over the rest.

Important Differences: Traction and. Hydraulic Elevators

Here's the information for comparison, presented in a simple point-by-point format

Ideal Building Height

• Traction Elevator. It is ideal for Mid- to high-rise structures (7-plus stories, up in the direction of skyscrapers).

• Hydraulic Elevator Ideal for low-rise structures (2-7 stories, with a maximum height of 60').

Speed

• Traction Elevator From very fast to Rapid (typically 500feet per minute).

• Hydraulic Elevator: It is slow (typically about 25 to 200 feet per hour).

Energy Efficiency

• Traction Elevator: It is extremely efficient because the counterweight decreases the motor's workload.

• HA ydraulic Elevator has lower efficiency because it requires a lot of power to propel the hydraulic fluid up.

Installation Cost

• Traction Elevator: Higher Initial Cost.

• Hydraulic Elevator: Lower Initial Cost.

Ride Quality

• Traction Elevator: Generally Smoother and Quieter.

• Hydraulic Elevator Could become more sluggish and is often associated with pump noise.

Machine Room Location

• Traction Elevator: Most often machine-room-less (MRL) or requires an area for a machine room on the top of the Hoistway.

• Hydraulic Elevator. Most often, it requires an extra machine room located at its lower end (to accommodate the reservoir of fluid and the pump).

Maintenance

• Traction Elevator: More intricate components; however, it generally has fewer wear items.

• Hydraulic Elevator: The components are simpler. However, the hydraulic fluid requires regular checking and periodic replacement.

Environmental Risk

• Traction Elevator Risk-free (no Hydraulic fluid required).

• Hydraulic Elevator: The possibility of leaks of oil or problems with disposal (though the latest models are able to utilize Biodegradable Fluids).

The Deciding Factor - Which One is Right for You?

Selecting the appropriate elevator technology comes down to your specific building's needs and requirements.

Choose a Traction Elevator If:

• The building you are in is high (more than 7 stories) and must serve several floors with efficiency.

• You will require the speed of a jet engine for moving a large number of people swiftly (e.g., hotels, commercial offices, and hospitals, or residential high-rises).

• Efficiency in energy and a smooth, tranquil ride are among the most important aspects of users' experience.

• You prefer design that saves space, such as Machine-Room-Less (MRL) Systems.

• The initial cost is justified by the long-term operating savings and improved performance.

Choose a Hydraulic Elevator If:

• This building falls under a low-rise (residential homes, small businesses,s church, retail stores, or small apartments).

• You're on a smaller spending plan and don't require high speed.

• It is necessary to transport extremely heavy loads within small distances (e.g. or a designated vehicle elevator or a freight lift in the parking garage).

• The shaft's depth is an issue (no over-the-head machine rooms are required; however, an additional machine room in the basement is not uncommon).

The Future of Elevators: Smarter, Greener Lifts

The world of elevators is always changing. The latest traction technology, particularly MRL (Machine-Room-Less) design, is getting smaller and energy efficient, making them suitable for mid-rise applications. The technological advancements in hydraulics are making our pumps quieter and using biodegradable and environmentally friendly fluids, which reduces their environmental footprint.
