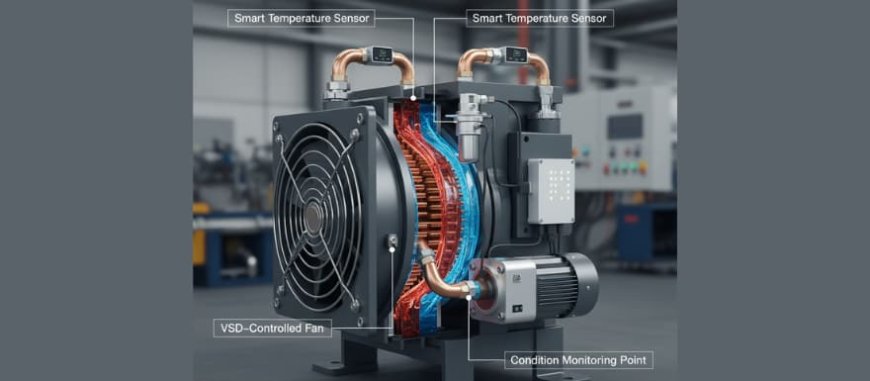

Smart Monitoring: The Key to Energy Efficiency in Hydraulic Heat Exchangers

Hydraulic systems are key to heavy machinery all across the globe, from construction cranes to factory presses. However, they are also very guzzlers, and heat is their greatest enemy. Heat means efficiency drops, wear and tear oftentimes will shorten the life of components, and the most significant concern is that energy consumption increases.

The old-fashioned way of cooling, is simply to turn the heat exchanger's fan on as high as it goes or depend on manual inspection corresponds to outdated, ineffective and wasteful traditions. The new alternative is Smart Monitoring delivers actual Energy Efficiency in hydraulic heat exchangers.

Why Standard Cooling is Energy Inefficient

Hydraulic heat exchanges cool off hydraulic oil to remove excess heat by using a fan and/or a cooling media (air or water). A traditional, non-monitored type of cooling system is an inordinate waste of energy due to the following points:

Constant Over Cooling: In the case of cooling with air, the fan is often running at 100% speed regardless of the temperature of the hydraulic oil or the ambient conditions; this runs up electricity costs unnecessarily and wears out components more quickly.

Delayed Action: In most situations, technicians only respond is they receive a temperature alarm and by then the system is already overheating and suffering damage due to the inefficiency cycle.

Poor Sensor Location: Sensors are sometimes mis-located so that the location of the temperature sensor gives a temperature reading that does not require cooling or too much cooling unless the water is boiling or frozen.

The Strength of Smart Monitoring and IIoT

Smart monitoring uses Industrial Internet of Things (IIoT) sensors and smart controllers to manage the heat exchanger actively, instead of passively. This transition changes the heat exchanger from a straightforward part to a smart, active efficiency tool.

1.Targeted Temperature Control

Smart systems use: Variable Speed Drives (VSDs): The motor for the bitumen exchanger fan is managed by a VSD so that it runs at whatever fan speed is required, and all read in real-time according to the oil's real-time temperature. If the heat exchanger oil temperature is only 1 degree over the setpoint, the VSD will only run the fan at 30%, meaning the energy used is much less than running the fan at 100%.

Predictive Algorithms: These systems don't just use the oil temperature, but rather predict how cool the air is compared to the current oil temperature. If the oil is 38 degrees, and the current rate of temperature drop is .25 degrees, it will be easy to predict a temperature. The algorithm will factor in the air temperature as well, which will create a much more accurate estimate of cooling required.

2. Condition-Based Maintenance (CBM)

Smart monitoring systems can provide several parameters, and not only temperature:
• Filter contamination — a higher pressure drop across the oil filter is an indication of being clogged, which increases friction within the fluid, whereas higher heat is a consequence of the increase in friction. The system prompts maintenance before a failure occurs.
• Cooling Element Performance- the oil temperature entering and leaving the heat exchanger can determine if the cooling element itself is becoming fouled (dirty or scaled) and losing ability.
• Vibration and Noise — monitoring of vibration and noise of the fan motor and pump can give indications of wear and allow maintenance to be scheduled during planned down-time, as opposed to after it traveled to failure

3. Data-Driven Energy Savings

Most significant, the ability to quantify savings. Smart systems maintain historical data, and can help managers to:
• Visualize Energy Usage: Assess the energy consumption of the cooling fan to the operational load of the hydraulic system.
• Optimize Setpoints: Use data trends to fine-tune the optimal operating temperature, which will yield improved hydraulic fluid viscosity and an increase in cooling power at a decrease in temperature.
• Justify Upgrades: Provide an ROI (Return On Investment) for new VSD motors and sensors through detailed and informative energy savings reports to encourage upgrades.

How to Achieve Smart Efficiency

If you want to enhance your hydraulic efficiency by applying smarter cooling, it will include some or all of these steps to kickstart the process:

Use Advanced Sensors: Install high-accuracy digital temperature sensors for the oil, coolant, and ambient air.

Use a VSD Controller: Swap standard fan motors for Variable Speed Drive technology.

Use a Gateway: Use a IIoT gateway to connect the sensor data into a cloud or your local monitoring dashboard.

Set CBM Alarms: Set smart alarms for temperature, pressure differential, and fan operational hours that only trigger when they truly need intervention.

Shifting from a reactive, brute force cooling approach, to a Smart Monitoring approach, will not only prolong the life of your hydraulic components, but can also convert a major energy liability into a tangible form of cost savings and sustainability. The future of hydraulics is not just powerful, it is also smart.
