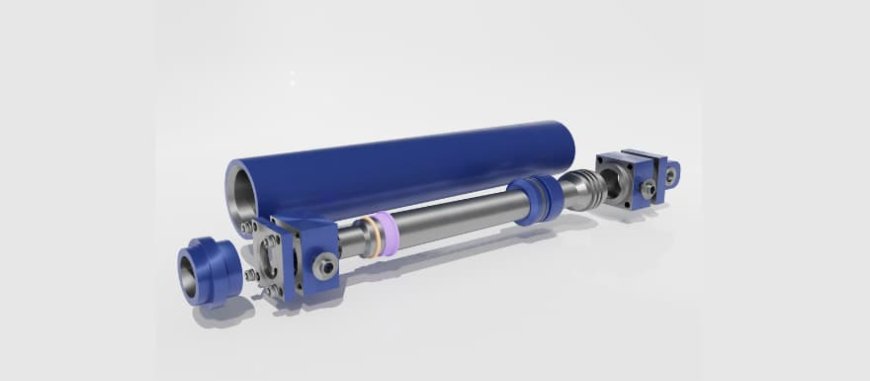

How to rebuild a hydraulic cylinder ?

Hydraulic cylinders serve as the mainstay of heavy equipment, from construction excavators and farm tractors. When they begin to leak and/or lose their power typically signifies that they're seals have worn out. Rebuilding a hydraulic cylinder - a process commonly referred to as "re-sealing"-is an economical, time-saving alternative to purchasing an entirely new one.

Although it takes patience and focus on the details While it requires a lot of patience and attention to detail, the DIY reconstruction is a breeze. This guide breaks the process into easy steps that can be easily managed.

Safety First! Essential Preparations

Before you handle any tool, make sure you remember these crucial precautions to be aware of:

• Depressurize: Ensure the hydraulic system is shut off and that any remaining pressure is removed from the lines as well as within the hydraulic cylinder.

• Clearness: Hydraulic systems are delicate. Make sure you work in the best environment for cleaning and completely clean the outside of the cylinder prior to taking it apart. The enemy is dirt! brand new seals!

• tools: Gather essential tools such as a big wrench, spanner wrench, a retaining band and seal picks and seal picks, and a sealing kit that is specific to the cylinder model you have.

• Information: Take pictures or keep notes while disassembling the cylinder. Being aware of the orientation of each seal is vital for reassembling.

Phase 1: Disassembly and Inspection

Step 1: Removing the Cylinder

Remove the cylinder safely from the machine and then place it in a sturdy vise, using jaws that are soft or a protective material to avoid any damage to the barrel of your cylinder.

Step 2: Removing the End Cap (Gland)

The cap at the end (or gland) is typically secured with the use of a large nut, retention ring, or it is threaded directly through the barrel.

• Utilize the spanner wrench or a larger special wrench for cylinders to loosen the gland.

• After it has been loosened, carefully take the gland off the rod.

Step 3: Removing the Piston

The piston is situated on the opposite side of the rod inside the barrel.

• Take all of the rod or piston assembly from the barrel.

• Place the rod into the vice (again by using jaws that are soft).

• The piston is fixed to the rod by a large bolt. Remove the nut and loosen it, then remove the piston from the rod.

Step 4: Inspection is Key

Inspect all metal surfaces thoroughly:

• Cylinder Barrel Examine the inside wall (bore) for marks, pitting, and deep scratches. In the event that the bore has been scored and pitted, rebuilding won't repair any leaks.

• Piston Rod: Examine for nicks, rust, or scratches, especially close to the point where seals are mounted. These scratches can ruin new seals very quickly.

• Piston as well as Gland: Check for cracks or wear that is excessive.

Phase 2: Replacing the Seals

It is an important aspect.

Step 5: Removing Old Seals

Utilizing a small sealing pick or an instrument that does not mar, take out all seals that are old O-rings and back-up rings, and rod wipers off the piston and the gland.

Be aware: Pay close attention to the direction and orientation of the seals. Certain seals (like U-cups) are directional and should be placed in the chamber of pressure.

Step 6: Cleaning and Preparation

Clean all the metal parts--the rod, gland, and the rod with the aid of a cleaner or solvent. Make sure there's no rust, debris, or metal shards found in any of the areas.

Step 7: Installing New Seals

• Lubrication: Clean all seals that are new and O-rings using clear hydraulic fluid. This eases the installation process and helps prevent tears.

• Setup: Carefully slide the new seals into the appropriate grooves. Make use of your fingers to press them lightly. Do not use tools that could scratch the seal.

• Piston Assembly: Reinstall the seals that were replaced onto the piston first. Then fix the piston to the rod using the retainer bolt.

Phase 3: Reassembly and Testing

Step 8: Reassembling the Cylinder

• Rod Insertion: Take care to move the rod and piston assembly back into the clean barrel of the cylinder that is clean. Be sure not to damage the rod seals when the rod moves through the opening in the gland.

• Glide Installation: The new seals should be installed on your gland (end cap). Lubricate the outer O-rings of the gland and then thread the gland back to the barrel. Make sure you tighten it to the specified torque of the manufacturer using a spanner wrench.

Step 9: Bench Test (Optional but Recommended)

If you are able If you are able, If you can, connect your rebuilt cylinder with the hydraulic pump in a bench to run it a couple of times, and then check for leaks prior to installing it back onto the machine.

Step 10: Reinstallation and Bleeding

Reinstall the cylinder onto the machine. When you've connected all the lines and allowed them to connect, slowly move the cylinder forward and back several times to eliminate all air from the system (a procedure known as "bleeding"). Air bubbles can trigger jerky movement and damage to cavitation.
