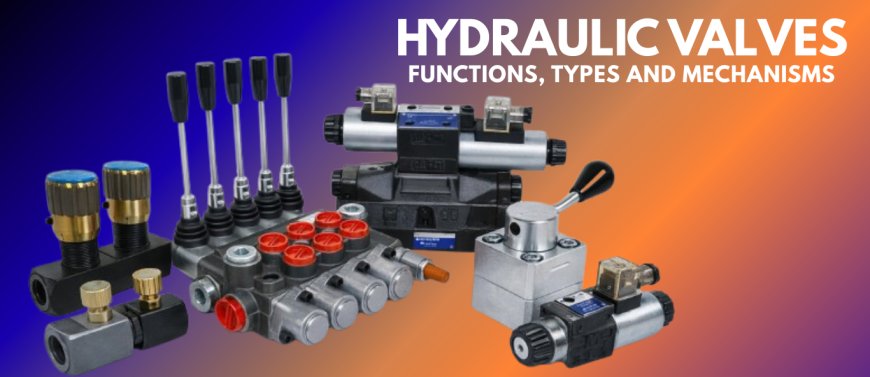

How Hydraulic Valves Work: Functions, Types & Mechanisms

The Gatekeepers of Power: How Hydraulic Valves Control the World

The hydraulic systems form the heart of modern equipment, supplying the enormous force needed by everything from excavators all the way to injection molding presses. However, power without control creates chaos. The true brains of any hydraulic system are inside its valves--the intricate parts that regulate the direction of the fluid, its pressure, as well as flow speed.

Understanding the role of hydraulic valves is crucial to understanding the power of fluid. Here's a summary of their primary functions, the main kinds, and the mechanisms that ensure high-pressure fluid is under exact control.

The Core Function: The Three Pillars of Control

Every hydraulic valve falls into three main functional categories. They determine how they control the flow of the pressurized fluid:

1. Directional Control Valves (DCVs)

• function: To start, stop, or alter the direction of flow.
• Scope: These are the gears and switches of the hydraulic system that determine the direction of movement of the actuator (e.g., the direction in which the cylinder retracts or extends, or whether a motor spins either clockwise or counterclockwise).

Key Types:

• Check Valves: Two-port, simple valves that allow for flow in only one direction and prevent backflow.
• Spool Valves: The most commonly used type. They comprise a spool that is cylindrical and slides inside the bore (the valve body). When the spool's position is changed, various internal passages are opened and closed, which directs the flow of fluid towards the intended port.

2. Pressure Control Valves (PCVs)

• The purpose of HTML0 is to control and limit the pressure of fluids within the system or in specific components of a circuit.
• Scope: They protect components from damage resulting from pressure and ensure that actions are performed at pressure thresholds.

Key Types:

• Relief Valves: This is the safety valve of your system. It's normally shut; however, it will open automatically if the system pressure exceeds a set threshold, directing excess fluid back into the reservoir (tank).
• Reducing Valves The valves are normally open and keep the pressure lower than normal on one particular segment of the circuit, regardless of changes in the principal line's pressure.
• Sequence/Counterbalance Valves: Used to ensure a sequence of operations or to prevent a heavy load from running away (uncontrolled descent).

3. Flow Control Valves (FCVs)

• Function: To modulate the flow rate of fluid.
• The purpose of HTML0 is that the rate of a hydraulic actuator (like motors or cylinders) will directly correlate with its velocity of flow, and valves determine the rate of movement.

Key Types:

• Throttle/Needle Valve: Basic valves to limit the size of the passageway (the orifice) with a manual adjustment screw or a tapered needle. The result is a drop in pressure and controls how much flow is allowed.
• Pressure-compensated valves are advanced valves that automatically alter the orifice's size to maintain an unchanging flow rate regardless of whether the load pressure (and consequently the pressure in the system) is changed.

The Mechanisms of Control

When it comes to valves, they are classified by their purpose and function. The physical mechanism controlling the fluid's movement typically includes one of two major types: poppets or spools.

1. Poppet Valves

• Mechanism Poppets (a cone, ball, or disc) are placed on a valve seat fixed by a spring or pilot pressure.
• What it does: To open the valve, it requires an external force (like system pressure or an electronic solenoid)that causes the poppet to fall off its seat, which allows fluid to flow. Once the force has been removed, the poppet is reseated and creates a perfect leak-proof seal.
• used for: Check valves and the majority of pressure relief valves depend on poppet designs to provide robust, leak-proof shutoff capabilities.

2. Spool Valves

• Mechanism: An intricately machined round spool moves around inside the bore of a valve.
• How it works: The spool has the lands (large segments with a large diameter) along with grooves (small sections with smaller diameters). As the spool changes, it blocks the land ports, and grooves join with others and create new flow paths.
• It is used for: The vast majority of directional control valves utilize spools since they are able to effectively handle several ports (like the four ports of a 4-3/valve) and complicated flows with a single linear movement.

Actuation: How Valves are Moved

The mechanism of the valve (spool or poppet) is controlled through the actuator. The way of actuation determines how the valve is controlled:

Hydraulic valves are a crucial control element in any power system that uses fluids. When you master the principles regarding direction, pressure, and control of flow, you are able to determine the cause of circuit problems and develop equipment that is capable of carrying out intricate, accurate, precise, and effective tasks.
