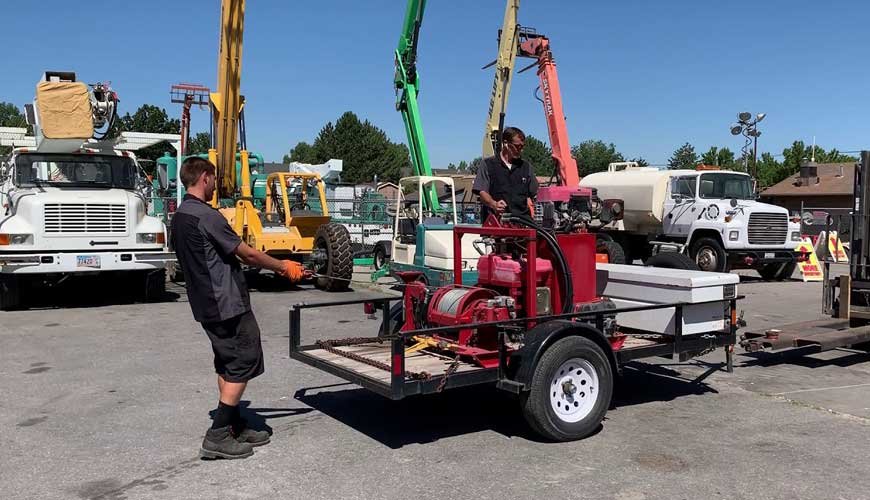

Hydradyne Tower Erection Hoists

Hydradyne Tower Erection Hoists
From more than 50 years Hydradyne is fabricating winch systems, Hydradyne has earned a reputation for the quality of our fabricated winch systems and packages. Hydradyne’s standard 24hp, 50hp, 90hp, or 115hp units can handle most tower hoist needs. These units feature high efficiency hydraulic systems and planetary winches with failsafe braking. The 50hp, 90hp, and 115hp units also include operator selectable high/low hydraulic speed control as a standard feature. All of Hydradyne’s tower erection hoist systems meet the safety requirements of Occupational Safety and Health Administration, OSHA , and include all necessary documentation.
Hydradyne 50hp Hoists
50hp water cooled diesel engine (environmentally certified worldwide)
12 volt electric start
Engine controls include keyed ignition switch, tach/hour meter, oil pressure
coolant temp gauges, amp meter
2 volt battery in DOT approved battery box with cover and pad lockable hasp
20 gallon diesel fuel tank with DOT approved filler-breather cap and sight level
gauge
Open loop 2-section vane type hydraulic pump
2-speed "high-low" hydraulic system
<85 gallon hydraulic oil reservoir, shock mounted (hydraulic oil included
10 micron cartridge type return filter with visual clogging indicato
Metering type directional


Hydradyne 90hp Hoists
90hp water cooled diesel engine (environmentally certified worldwide)
12 volt electric start
Engine controls include keyed ignition switch, tach/hour meter, oil pressure & coolant temp gauges, amp meter
2 volt battery in DOT approved battery box with cover and pad lockable hasp
40 gallon diesel fuel tank with DOT approved filler-breather cap and sight level gauge
Open loop 2-section vane type hydraulic pump
-speed "high-low" hydraulic system<
10 gallon hydraulic oil reservoir, shock mounted (hydraulic oil included)
10 micron cartridge type return filter with visual clogging indicator
Metering type directional control valve
