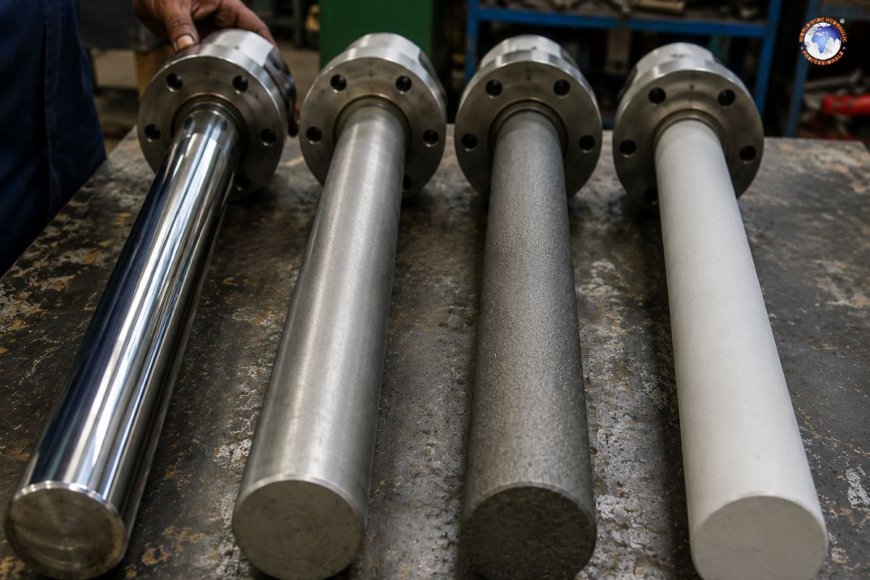

Types of hydraulic cylinder piston rod coatings and applications

The coatings on the piston rod of a hydraulic cylinder protect the rod's surface from wear, corrosion, and environmental damages. The most commonly used types are electroless nickel, thermal spray coatings (HVOF), ceramic coatings, and induction-hardened stainless steel. Each coating type is suited to specific operating environments ranging from offshore and marine to forestry, mining, and food processing.

What is the significance of piston rods' gouging?

It is among the most chemically and mechanically stressed components of any hydraulic piston. In operation, it constantly expands and retracts via the seal of the rod, which is exposed to both the hydraulic fluid in the cylinder and the external environment. This external environment may include salt spray, moisture, abrasive particles, chemical substances, and extreme temperatures, as well as mechanical impact.

In the absence of adequate protection for the surface, rods will get corroded, pitted, and form surface imperfections that can accelerate wear of seals. A corroded or scored rod will cause damage to seals quickly and cause contamination, leakage, and even cylinder failure. In hydraulic systems, where reliability is essential, such as mobile equipment, offshore platforms, agricultural machinery, and industrial presses, rod failure is not an issue of minor importance.

The proper coating selection will extend the lifespan of rods, is a good choice to protect seals, improves the control of contamination, and decreases the total cost of maintenance over the course of the system's life. Understanding the different characteristics of coating types is vital when selecting cylinders for a project or the rebuild.

Hard chrome plating

The plating process of hard chrome has been a standard in the industry for piston rods that are hydraulic for many years. The process employs electroposition for the application of a chromium layer generally 0.02 millimeters to 0.1 millimeters in thickness -- to the steel substrate. The result is a tough surface (typically between 850 and 1,000 HV according to the Vickers scale) with low friction properties and excellent resistance to corrosion in moderately challenging environments.

Hard chrome is a great choice for general industrial applications, including the construction industry, agricultural equipment, and presses for manufacturing. Its low surface energy helps reduce friction at the seal's interface and extends the seal's life and increases rod wiper efficiency.

However, it has documented drawbacks. The corrosion resistance of the coating is sufficient in a variety of settings but not sufficient for offshore or marine environments that do not have the additional protection. It is brittle and vulnerable to micro-cracking during stress or flexural loads. From a regulatory and manufacturing standpoint, the hexavalent chromium (Cr⁶⁺) that is used as a plating solution is a dangerous substance subject to increasingly strict environmental regulations, particularly within the REACH framework in Europe. This pressure from regulators has increased industry acceptance of alternate coatings in the last decade.

Electroless nickel plating

Electroless nickel (EN) plating deposits a nickel-phosphorus alloy on the surface of the rod using the process of chemical reduction instead of electrodeposition. Since no electric current is present, the coating's thickness is very uniform even on complex geometries, recessive features, and cross-holes. The typical thickness ranges from 0.025 millimeters to 0.075 millimeters.

The amount of phosphorus in the alloy is a factor that determines its hardness and corrosion resistance. A high amount of phosphorus EN coatings (10-12 percent P) have excellent corrosion resistance and are amorphous in their structure, which makes them impervious to pitting. After plating, heat treatment can increase the hardness of approximately 900-1,100 HV, which is comparable as hard chrome.

Electroless nickel is a popular choice for food-grade hydraulic cylinders and pharmaceutical equipment, as well as chemical processing processes in which corrosion resistance and cleanliness of the surface are important. It is also utilized for rods with complicated geometries, where uniform coverage is essential. EN coatings work with the majority of hydraulic seal materials and don't need post-grinding in a lot of cases.

HVOF thermal spray coatings

The High Velocity Oxygen Fuel (HVOF) thermal spray is being increasingly utilized as the most preferred method of hard chrome plating in a variety of applications. In the HVOF process, powder feedstock—typically tungsten carbide-cobalt (WC-Co) or tungsten carbide-cobalt-chrome (WC-Co-Cr)—is combusted at very high velocity and sprayed onto the rod surface. The resulting coating is very dense and tough (1,200-1,500 HV) and has much less porosity than older plasma spray techniques.

HVOF coatings are superior to hard chrome in terms of wear resistance and corrosion resistance. They can be greatly improved with the application of sealants after spraying. Because HVOF does not make use of hexavalent chromium, HVOF has been the preferred coating preferred by military, offshore, aerospace, and other industries in which environmental compliance is required.

When it comes to hydraulics, the HVOF-coated rods are used in offshore drill cylinders, crane cylinders, heavy mining equipment, as well as marine decking equipment—anywhere where high wear resistance and strong corrosion protection need to be able to coexist. The coatings are more dense and tougher than chrome; however, they require more precise polishing and grinding after spraying to get the perfect surface finish to ensure seal compatibility.

One point to remember: HVOF coatings require careful control of the rod's surface temperature while spraying. If the process isn't correctly managed, residual stresses could affect rod straightness and dimensional precision.

Ceramic coatings

Ceramic coatings, particularly chrome oxide (Cr₂O₃) and aluminum oxide-titania (Al₂O₃-TiO₂), are applied using a thermal spray and have extreme hardness (up to 220 HV) as well as outstanding protection against chemical attacks. They are non-conductive electrically and can stand up to higher temperatures as compared to metallic coatings.

In hydraulic cylinder applications ceramic coatings are employed when chemicals, high temperatures, and electrical insulation are major issues. This includes hydraulic systems found in chemical manufacturing plants as well as high-temperature industrial presses as well as some military equipment that is specialized. Ceramic coatings are also present on rods in areas that contain acidic solvents or aggressive solvents that could harm metallic surfaces.

The primary drawback for ceramic coatings lies in their brittleness. They are not able to withstand impact and rod deflection, and they can break down when the bond between the substrate and the coating is not established properly. This is why ceramic is not the most popular option in mobile equipment, especially when rods encounter lateral load or the impact of debris.

Induction hardening and nitriding

Some rod surface treatments do not include an applied coating. Nitriding and induction hardening can be described as surface modifications that alter the metallurgical structure of the rod's material.

Induction hardening warms the surface of the rod quickly using electromagnetic induction. It then quashes it to form an elastomeric layer. This process is restricted to the steel grades that react in response to heating treatment. The resultant hardness typically ranges between 55 and 62 HRC (Rockwell C), which is sufficient for a wide range of general-purpose applications.

Nitriding, particularly plasma (ion) nitriding, releases nitrogen into the steel surface at high temperatures, creating hard nitride compounds. Case depths ranging from 0.2 millimeters to 0.6 millimeters are normal, and the process isn't likely to alter the rod's shape because there is no quenching involved. Nitrided surfaces provide excellent wear resistance as well as moderate resistance to corrosion as well as the residual stress layer that enhances the performance of fatigue.

These kinds of processes are typical in all industrial cylinders, agricultural equipment, and machine instances where the cost of production is the main driver, and the working environment is not particularly hostile.

Selecting the right coating for the application

A good match between the coating and the specific application conditions is essential. The table below summarizes essential selection criteria

Environments offshore and marine need HVOF and electroless nickel that have added protection against corrosion. Salt spray and humidity degrade hard chrome quickly, and rod pitting within these conditions leads to seal failures that are rapid.

Construction and mining industries are able to benefit from HVOF due to its high wear resistance as well as a high degree of impact resistance. Abrasive particles that are found in the environment outside are one of those that cause the greatest damage that can be found on road surfaces that are exposed.

Pharmaceutical and food applications demand coatings that are not toxic and easy to clean and are resistant to chemicals that sanitize. Ceramic and electroless nickel coatings are the preferred choice. The use of hard chrome is usually not recommended due to the toxicity issues with hexavalent chromium compounds.

Equipment for agriculture and forestry typically employs induction-hardened rods due to the cost-benefit ratio and moderate corrosion exposure and wear requirements.

Piston rod coating selection is not a trivial specification decision. The coating type directly affects seal life, system contamination risk, rod service intervals, and total cost of ownership. Hard chrome remains widely used for its cost-effectiveness in standard environments, but HVOF thermal spray has emerged as the engineering-preferred alternative for demanding applications where wear, corrosion, and regulatory compliance converge. Electroless nickel fills a distinct niche in chemically aggressive or hygiene-sensitive environments, while ceramic coatings address specialized high-hardness or chemical resistance requirements.

When designing or rebuilding hydraulic pistons, the operational environment must guide the choice of coating and not only initially the cost of each rod.
