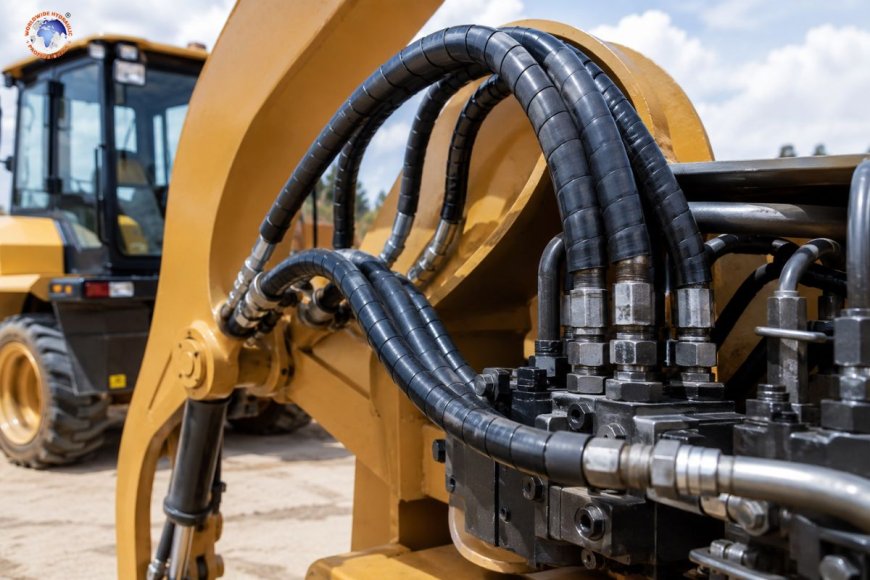

How Do Mobile Hydraulic Systems Benefit from High-Flexibility Hoses?

High-flexibility hydraulic pipes benefit mobile hydraulic systems because they reduce bend radius requirements and reduce routing conflicts in tight chassis spaces, decreasing the amount of maintenance and installation work and eliminating fatigue failures at fittings that are subject to continuous articulation. Instead of standard hoses specifically designed to contain pressure, the high-flexibility models make use of finer wire braids or spiral configurations and more flexible cover compounds to withstand constant twisting, flexing, and vibration that is typical of excavators, cranes, loaders, and agricultural equipment—increasing service life and making design simpler around moving parts.

Mobile equipment poses a completely different problem than stationary hydraulics for industrial use. The injection molding or pressing machine maintains its hose runs in place after they are installed. An excavator boom, skid steer loader arm, and telehandler mast, for instance, move continually through thousands of cycles every day, pushing parts of hoses through repeated flex cycles, twists, and vibration. This is the reason high-flexibility hose is now an entirely separate engineering category than a marketing term and why deciding on the wrong type of hose for a moveable application can lead straight to failure that is premature.

What is the criterion for a hose to be "high-flexibility"?

The flexibility of an hydraulic hose is a result of its construction, not only its outer diameter. Three elements determine the ease with which a hose bends and does not lose its pressure capacity.

Reinforcement layer design

Standard braided hose is made up of rather fine wire braid layers designed for strength in bursts and moderate flexibility. High-flexibility hose typically has finer-gauge wire for braiding, or switches to a spiral-wound arrangement with many wire layers with a smaller diameter, which distributes the bending tension across a wider number of wire strands. This decreases the strain an individual wire is subject to during a flexing cycle, which in turn extends the life of the fatigue.

Tube compound and cover

The cover's outer layer can affect both abrasion resistance and bend resistance. Covers that are more elastic and soft materials are more flexible; however, they must also be able to withstand UV exposure and abrasion to components of the chassis—an extremely common cause of failure for mobile equipment, where hoses are pushed against frame rails or other hoses in the course of boom movement.

Bend radius rating

Every hose is required to meet the minimum bend radius requirement. High-flexibility hoses can achieve significantly smaller minimum bend radii—usually 30-40% less than their standard counterparts at identical pressures—and is the most useful specification for routing engineers operating within a restricted chassis.

What makes mobile equipment behave differently in comparison to industrial systems?

Continuous cycles of articulation

A stationary press may rotate a hose assembly a couple hundred times per shift, with only a slight directional change. The boom, arm, and bucket cylinders stretch their supply hoses in full-range movement for thousands of times per day. Every flex cycle puts an overload on the wire reinforcement. A standard hose, which is too small in the flexibility required for this job, is able to work harden and wears out at a quicker rate and is most likely to fail initially in the fitting crimp, which is where stress is concentrated.

Space constraints in moving components

The design of mobile equipment chassis is constantly a battle between the strength of the structure, weight, structural strength, and the available space for routing. The articulation joints, booms, and counterweights create narrow channels for the hose to run. A hose with an ideal bend radius requires either a more extended routing path or additional fittings to redirect flow or physical contact with moving components—all of which can increase the risk of failure and complexity of maintenance.

The shock load and vibratory vibration

Construction equipment and off-road vehicles generate constant vibrations from the engine's operations, rough terrain, and the impact load when digging or lifting. This vibration adds to the strain on the body already imposed by the flex cycle. Hose assemblies on mobile equipment require reinforcement that can handle strain fatigue from bending and fitting loosening caused by vibrations.

Practical benefits of design of mobile hydraulic systems

Simpler routing

The smaller bend radius achievable allows engineers to direct hoses more precisely by following the natural course of the chassis's geometry instead of using a hose's bend limits. This can reduce the total number of fittings required, because fewer directional adapters are needed to maintain bends within a hose's maximum radius.

Lower installation labor

Technicians routing hoses that are flexible through tight spaces such as around cylinder mounts, frame cutouts, and close to pivots -- have to spend less time pushing the hose into place or battling stiffness when assembling. This is a significant cost of labor for OEMs who build equipment for production lines in which hose routing is a cost that will be recurring for every unit that is built.

Extended service life in the load of cycles

Since those with high flexibility are designed to withstand repeated bending without concentrating stress on one point, they are more likely to fail. The time between failures in articulating circuits generally improves as compared to hoses that are pressed into the same purpose. This is particularly true in applications with high cycles, such as excavator boom circuits as well as loader arm circuits as well as crane luffing systems, where replacement of hoses requires the equipment to be down for a period of time and is often in awkward positions on the chassis.

Compatibility with fittings that are not welded

Mobile equipment is increasingly using non-welded, reusable, or press-fit fitting systems to accelerate field service. High-flexibility hoses are a natural fit with these fitting methods because the less bend tension at the transition point implies less stress is placed on the press or crimp connection throughout the assembly's service time, which enables more secure long-term sealing.

High-flexibility hoses provide the greatest value

The hydraulic circuits on mobile equipment require the highest flexibility. Fixed supply lines that run along straight frame rails are not very beneficial and might not justify the more expensive costs of high-flexibility structures. The areas where expenditure is the most clear are:

• Arm and boom circuits on backhoes, excavators, and telehandlers. parts of hose assemblies move through the entire range of articulation
• Control circuits for steering and implements on agricultural machinery that operate continuously in fields that have high-vibration
• Hoist and crane luffing circuits in which hoses must be able to accommodate both the change in angle of the boom and loads-induced flex
• Smaller equipment such as mini excavators and skid steers in which space for the chassis is often limited and radii for tight bends are usually mandatory rather than optional

Considerations for selection that are beyond the flexibility

Flexibility shouldn't be analyzed independently of temperature range, pressure rating, and compatibility with fluids. A hose designed for bend radius but not rated for system pressure presents another risk of failure. Engineers who select hose for mobile applications usually start with the temperature and pressure specifications of the circuit. They then narrow to the flex class that is required for the specific route and duty cycle and make sure that the finer-braid or spiral construction is still in line with the necessary tension and the impulse ratings for the application.

High-flexibility hoses exist because mobile hydraulic equipment creates the duty cycle that traditional hose construction was not designed to absorb for a long time. It distributes bending strain across smaller reinforcement layers, achieving smaller minimum bend radii and reducing strain at the fitting connections. High-flexibility hose tackles the limitations of routing as well as vibration exposure and continuous articulation, which characterize mobile equipment's operation. For maintenance and engineering teams that work on excavators, cranes, loaders, and agricultural equipment, coordinating the hose flexibility class with the actual operating cycle can be among the most straightforward methods to decrease the amount of unplanned downtime due to hose malfunction.

1. What's the major distinction between regular hydraulic hoses and high-flexibility hydraulic hoses?

The standard hose reinforcement has been designed specifically for pressure control with moderate bendability, and high-flexibility hose employs more fine wire braids or layers of spirals to spread bend strain more evenly, achieving the tightest minimum bend radius while maintaining a comparable pressure rating.

2. Why should I select the hose with high flexibility over the standard hose for mobile devices?

High-flexibility hose is especially useful in circuits that have continuous articulation or a restricted route space, such as boom, arm, and steering circuits. Standard flexible hoses would require a more extensive routing route or fittings to remain within the limits of their bend radius.

3. Does a hose with high flexibility compromise the durability or pressure rating?

In essence, high-flexibility hoses are designed to fulfill exactly the same pressure requirements and energy specifications as standard hoses for a specific class of application; however, the pressure rating must always be checked against the product's specific specification sheet, rather than based on the designation of flexibility alone.

4. How does hose flexibility impact the failure rate of fittings?

The reduction in bend stress at the hose-to-fitting transition reduces the strain on the crimp or press connections through repeated flex cycles, which is among the most common problems with mobile equipment and hose assembly.

5. Does high-flexibility hose warrant the additional cost to each hydraulic circuit?

There are no fixed straight-run supply lines that do not flex during operation. They benefit very little from constructions with high flexibility, which is why the expense is most appropriate for circuits that have genuine articulation and exposure to vibrations or strict routing restrictions.
