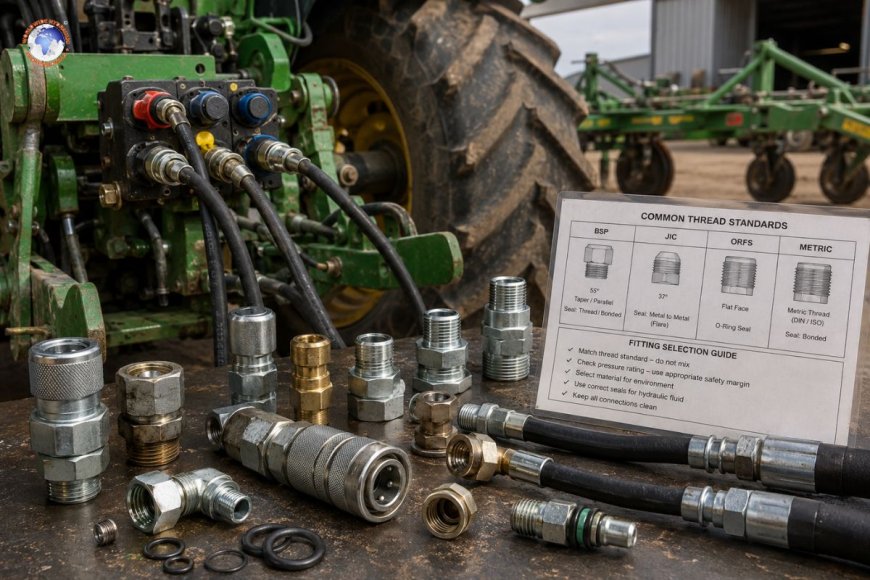

Agricultural hydraulics: choosing fittings for farm machinery

Modern farm machinery operates on hydraulic power. From the arm loaders on an agricultural tractor to the folding wings of a sprayer with a wide span, nearly every function is dependent on the pressurized flow of fluid that moves efficiently through a network of hoses, cylinders, fittings, valves, and other components. The fitting—that tiny connector with a threaded thread or push-on—is the point where the system holds together or falls apart. If you do it correctly, a machine can run every season without a hitch. If you don't, you'll be dealing with fluid spills on the field, the loss of working days in a crucial harvest window, and risks to safety associated with the injuries caused by hydraulic injections.

The selection of fittings for agricultural equipment is not merely an issue of fittings that match the thread sizes. It requires understanding the operating conditions, the pressure demands of particular circuits, the fluids used, and the actual aspects of field maintenance.

The reason agricultural hydraulics pose a particular challenge?

Farm machinery works under conditions that are tough on each component. Dust or grit, crop residue, fertilizer sprays, water immersion, and large temperature fluctuations are everyday realities. Machines are able to flex when they traverse uneven terrain. Attachment and detachment of implements happen many times throughout the year, typically by people under pressure of time who do not have the expertise of hydraulic experts.

The factors mentioned above make hydraulic fittings more difficult than industrial applications. A fitting that is able to perform in a controlled factory setting can corrode, become loose, or undergo loss of seals in one season of harvesting for the combine harvester. The criteria for selection must be more than the specifications in the catalog and reflect actual field conditions.

Safety margins and ratings for pressure

Hydraulic systems in agriculture have become much more powerful in the last two decades. Main tractor circuits typically run between 200 and 250 bar, with certain implement and loader circuits operating at constant pressure during long, hard working days. Auxiliary circuits for remotes, trailer brakes, and front linkages add additional complexity.

Each fitting within a circuit has to be rated higher than the maximum pressure for the circuit, and an appropriate safety margin of generally four times one burst pressure against working pressure must be kept. This is crucially critical at connections where hose assemblies connect to valve blocks or cylinders because these joints are exposed to both bending and pressure stress at the same time.

Incorrect fittings can be a major reason behind field failures. When a machine is fixed using any fitting available in a farm workshop, the wrong pressure ratings are often under the radar until a seal breaks or the body swells when under stress. The requirement of fittings to be specified by pressure class, not only thread size, can prevent this.

Thread standards for agricultural equipment

Thread compatibility is among the main causes of confusion in hydraulics for farms. There are a variety of standards that appear on machines used daily and are usually not interchangeable, despite the superficial similarities.

BSP (British Standard Pipe) fittings are widely used on older European machines and are still used on the attachments and implements of UK or European manufacturers. BSP makes use of the taper or parallel thread that has a 55-degree angle. Parallel BSP fittings are sealed on the face or O-ring, whereas tapered BSP is based on sealant thread engagement.

JIC (Joint Industry Council) fittings utilize the 37-degree flare seat and are the most popular in North American equipment as well as many tractor brands that conform to SAE standards. The flare seal made of metal to metal is durable and reliable when properly assembled; however, it is dependent on unaffected seating surfaces.

ORFS (O-ring face seal) fittings have been the preferred choice for high-pressure agricultural circuits that are used on modern machines. The O-ring seal that has a flat face is extremely durable, can withstand slight variations in surface finish, and resists loosening from vibration better over flared fittings. Numerous manufacturers are now recommending ORFS for the main hydraulic circuits of tractors that exceed 150 horsepower.

Fittings made of metric thread, based on DIN as well as ISO specifications, have become used on German and most of the continental European equipment. Confusion of metric threads with BSP is not difficult to accomplish visually; however, the differences in pitch and angle of the thread can cause leaks and cross-threading. inevitable as a result of mixing the two.

When repairing or maintaining equipment, be sure to identify the thread standards from the original documentation for the equipment instead of relying solely on the visual estimate or feeling.

Selection of materials for agriculture

Carbon steel is one of the most widely used fitting materials. It is suitable for the majority of hydraulic circuits for implements and tractors in which the fittings are shielded from direct exposure to weather. But carbon steel in its untreated state will quickly corrode in the presence of fertilizer spray, slurry, or prolonged periods of humidity. Zinc plating offers basic protection, but it's not enough for the harsh chemical environment.

The stainless steel fittings are the ideal choice wherever corrosive agrochemicals or saltwater or slurry contact is most likely. They also work well for fittings that are frequently pressure washed. The higher cost of carbon steel is justifiable by the long-term service benefit in these conditions.

Brass fittings are often used in lower pressure points, return lines, and case drain connections, as well as sensing circuits. Brass is resistant to corrosion and is simple to handle when it comes to repairs in the field. However, it shouldn't be employed in high-pressure circuits, as the lower tensile strength of the brass is a limitation.

Do not mix materials within the fitting assembly whenever you can. For instance, results in an electrogalvanic couple, which accelerates corrosion when wet.

Quick-release couplings that allow for attachment to implements

Agricultural hydraulics is heavily dependent on quick-release couplings in the interface between tractor and implement. These couplings permit operators to connect and disconnect hydraulic circuits with no tools and, in most cases, without major loss of fluid.

Flat-face couplings have mostly replaced the old poppet-style couplings that were used on the latest equipment. The flat-face design minimizes the possibility of spillage of fluids during connection and disconnection, minimizes contamination, and also handles more trapped pressure. These are the current standard for the majority of connection points for tractor remotes across Europe and are becoming more common across other countries.

The size of the coupling must be in line with the specifications of the circuit's flow. A coupling that's too small to accommodate the flow requirements of the circuit results in an excessive drop in pressure and heat, which can reduce the efficiency of circuits and put stress on seals. Making sure that quick-release couplings are sized to the hose bore as well as the valve size of the circuit is vital for high-flow circuits like the ones that power hydraulic motors for harvesters and grain augers.

Seals and coupling bodies need to have the right compatibility with the fluid that is in use. Equipment that runs biodegradable or fire-resistant hydraulic fluids needs couplings that have seals specifically designed specifically for these types of fluids. Seals made of nitrile, which are used on couplings that come by the manufacturer, do not always work for HEES (environmentally suitable hydraulic fluid) or water-glycol fluids.

Fittings for the end of the hose and assembly high-quality

A fitting is only as secure as its connection. End fittings for hoses—whether made of reusable screws or crimped—should be aligned to the hose's construction and then assembled according to the specifications of the manufacturer. A fitting that is designed for one type of hose on a different type of hose is a common cause of pull-off fitting failures, especially at high pressure.

Crimped assemblies of hose are the norm for agricultural use. The factory-crimped assemblies that meet ISO 18752 or equivalent standards ensure consistent quality and are highly advised over fittings that are field-assembled, except in emergencies. In the event of replacing an assembly with hoses, ensure that the new assemblies meet the pressure class that was originally used in the circuit.

Reusable fittings are a good option in the workshop assembly process and return circuits with low pressure; however, they need careful cleaning of the bore of the hose prior to assembly and also a check of the fitting's body for wear prior to reuse.

Contamination control at the fitting connections

Every time a connection to a hydraulic system is repaired and broken, there is a chance of contamination getting into the system. The hydraulic systems of agricultural machinery are especially vulnerable since disconnecting and connecting occurs frequently, especially in areas that have the presence of dust from the air and other crop debris.

Close all ports open when you disconnect hose assemblies. Don't leave ports open, lying on the floor or in the dirt. Examine the O-rings and sealing surfaces before reconnecting them. Replace any seal showing cracking, flattening, rust, or any other signs of contamination embedded within the surface. One O-ring that is hardened and passed over during an easy field repair can be the beginning of a process that eventually damages the hydraulic valve or pump.

An approach that is practical for fitting the right selection

The most efficient approach for anyone who is responsible for maintaining or constructing hydraulic systems for agricultural use is to follow the original equipment manufacturer's part documents for thread and pressure class, ensure that the specification of the material is in line with the environment in which it is used instead of using the material that is in stock, ensure that the seals are suitable to match the type of fluid in use, and then invest in quick-release couplings with a flat face at all interfaces to implement.

The hydraulics of agriculture do not reward any shortcuts in fitting. The expense of a properly specified fitting is minimal in comparison to the expense of an exploded hose at the beginning of harvest, an unclean pump assembly, or, perhaps most notably of all, the injury caused by a hydraulic injection to the operator. Fittings require the same care and specification as every other part within the system.
