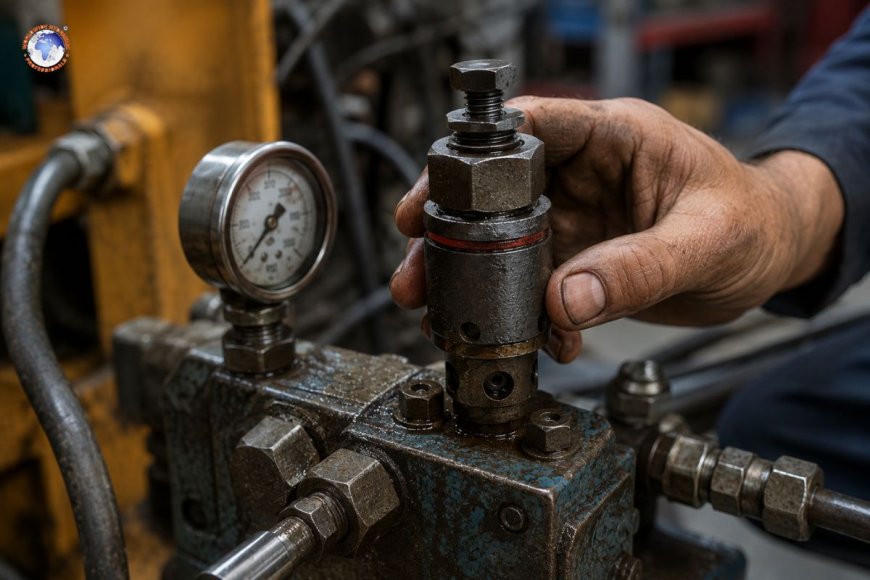

How do you know if a hydraulic relief valve is bad?

A damaged relief valve for hydraulics typically manifests as irregular system pressure, high heat production, slow or irregular actuator movement, strange chattering or whining sounds, and even fluid discharge while the valve is operating under normal loads. These indicators point to damaged seats, weak or broken springs, dirt stuck in the valve, or an inoperative poppet that does not seal properly. To confirm the diagnosis, you must isolate the valve, testing the readings of pressure against the setpoint of the system using a calibrated gauge and then examining the internals of the valve for signs of wear, scoring, or any other debris.

Relief valves provide the security net in every hydraulic circuit. When they are degraded quietly, and they often do, the rest of the system takes the consequences, including an overly hot fluid, actuators that stall, and pumps operating more than they ought to. Identifying early warning signs can prevent a complete system failure later on.

What exactly does a relief valve do?

A relief valve for hydraulics is in place to safeguard the circuit from excessive pressure. It is closed during normal conditions of operation, but it opens when the system pressure is above the threshold set by the manufacturer, directing excessive flow back into the reservoir. When pressure falls back to within the range, the valve closes again, and the flow resumes its normal course.

This process is ongoing in a system that is operating most of the time without even noticing. When a valve for relief cannot hold its setpoint precisely—whether it is opening at the wrong time or not closing properly or not properly reseating—each downstream component begins compensating in ways that reduce the life of their components.

Signs of a failing relief valve

1. Pressure that doesn't stay steadily

The most evident sign of this is a gauge of pressure that fluctuates rather than maintaining the same reading at a constant load. A properly functioning relief valve keeps the pressure of the system within a safe and predictable range. If you notice the needle shift, spike, or dip erratically, the valve's nut or seat is likely to be worn, which prevents a stable seal.

2. The system is overheated.

If a relief valve leaks internally—allowing fluid across the seat, even though it is supposed to be shut completely—the flow transforms into energy wasted, and that wasted hydraulic energy is transformed into heat. If your return line is noticeably hotter than normal without a shift in the duty cycle or the ambient temperature, the relief valve that bypasses fluid is among the first items to check.

3. Poor or slow actuator performance

Cylinders that are extending faster than usual or motors losing torque when they are under stress are usually the result of an open relief valve that has cracked in a hurry. Instead of directing all fluid to an actuator, the valve diverts part of it back into the tank before the actuator is able to get the amount of pressure required to work.

4. Chattering, whining or buzzing sounds

A valve that has a damaged or worn-out spring or is afflicted by a contaminant in the seat is more likely to squeak by opening and closing in smaller increments instead of smoothly adjusting. The result is a loud, low-pitched sound that's different from the normal pump sound. Chattering is a clear sign that the internals require inspection.

5. Fluid discharge under normal load

If liquid is returning to the tank via the relief line in normal non-peak operation, then the valve is open below the setpoint it was intended to reach. This is in contrast to the quick relief that's anticipated during a spike in pressure, and a continuous discharge in steady-state conditions suggests the valve isn't holding its pressure that cracks.

6. System can't meet rated pressure

In a few failure situations it's the reverse that the valve stays open or the spring has been weakened to the point where it isn't able to build back up to the pressure of design in any way. The system seems weak across the board even though the pump and components are tested fine independently.

Common root causes

Breakage or fatigue of springs. Springs lose tension over time, particularly when used in high-cycle situations. A stressed spring decreases the pressure of cracking below specifications, which causes the spring to fail or not fully release.

Contamination. Particulate that is trapped between the seat and poppet is among the main causes for the relief valve's behavior becoming unpredictable. Even a small amount of contamination could prevent the valve from sealing completely and cleanly and cause internal leakage or pressure stability.

Wear and tear on the seat or scoring. The repeated cycling, especially in high pressure or when there is an abrasive substance, creates grooves in the seat surface. After the seat is scored, it is no longer able to form an enveloping seal, regardless of the spring state.

Adjustment drift. For adjustable relief valves, the setting could shift because of vibration or a misplaced lockdown following an adjustment made prior to it, causing that valve to function beyond the range of operation it was intended to operate within, without internal damage.

Elastomer or seal degradation. When valves have seals with secondary sealing, temperature and incompatibility could cause expansion, hardening, or cracking and compromise the valve's capacity to hold pressure.

How do you confirm the diagnosis?

Noise and visual symptoms will point you towards the correct direction; however, to confirm a damaged relief valve, a couple of specific inspections are needed:

• Separate the valve from the other circuits when feasible, and then test the valve's behavior in particular, not the entire system.
• Utilize a pressure gauge calibrated in the valve's testing port to check the pressure at which cracks are occurring against the manufacturer's setpoint. Any deviation greater than a tiny percentage from the specifications is a signal to be concerned.
• Examine the seat and the poppet for pitting, scoring, or embedded debris after the valve is taken off. Minor surface damage to the sealing area can be enough to trigger leakage for a long time.
• Verify the length of the spring in relation to squareness and length against OEM specifications, if the valve's design permits disassembly. If a spring is compressed less than the specifications, it has probably been the form of a set that is permanent.
• Examine the cleanliness of the fluid through the ISO cleanliness test. Valves that fail several times in the same process often suggest a contamination issue instead of a single component issue.

What is the best time to change vs. rebuild

Relief valves made of cartridges are usually more affordable to replace entirely, especially in mobile devices in which downtime expenses exceed the cost of the purchase of a new cartridge. Industrial relief valves that are larger and have poppets and seats that can be replaced and springs are often rebuilt with OEM kits if the valve's body isn't cracked or showing excessive wear. If a valve fails more than once within an extremely short time frame, you should look into the system's pollution control as well as pressure spikes, rather than changing out a valve similar to the one you have.

Does a damaged relief valve cause damage to any other component of hydraulics?

Yes. A relief valve that has become stuck in a leaky or partially open condition can lead to prolonged overheating, which can cause the wear of seals, pumps, and hoses across the circuit.

What is the frequency at which valves that relieve pressure should be inspected?

Most maintenance programs for industrial use test the valve's settings for relief in the course of scheduled preventive maintenance. This usually happens once every three to six months or whenever unsolved performance issues occur.

Does chattering mean that the valve is not working?

Chattering could also be the result of an insignificant setpoint that's not enough to match the valve's compensator settings or due to air entrainment within the fluid. It's important to rule out these causes before blaming the valve.

Does contamination cause the valve to fail?

Yes. Fine particulate accumulation between the seat and the poppet is among the main causes for irregular relief even when the valve's mechanical parts are in good shape.

Is a slightly incorrect pressure setting equivalent to an unfit valve?

Not necessarily. A setting that is not in compliance with the specifications due to adjustment drift is often corrected without replacing the component, while wear or scoring, or even spring fatigue, will require replacement or rebuilding.
