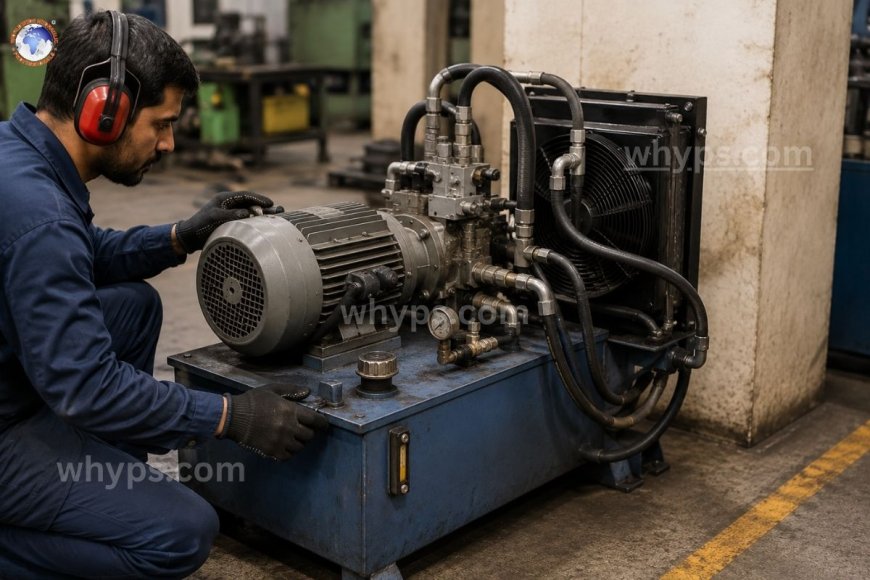

How do you reduce noise in hydraulic power packs?

Noise from the hydraulic power pack can be decreased by addressing all three major sources at the same time: the noise generated by the pump (cavitation as well as aeration and the pulsation), the mechanical vibrations that are transmitted through piping and mounts, and also the noise that is carried through lines and hoses. The most efficient strategies are selecting low-noise pumps, separating the motor and reservoir from the rest of the structure, putting in an acoustic enclosure and utilizing flexible hose connections instead of rigid piping around the pump, and ensuring that the fluid is in a well-conditioned condition to prevent cavitation. Combining several of these strategies generally reduces noise levels by 10 to 15 dB(A), which represents a significant reduction in the perceived level of volume.

Power packs with hydraulics are vital for a variety of industrial processes; however, their sound output can be a problem for floors in plant rooms and mobile equipment cabs and any other place where workers are working close to the machine. A power pack that is running between 85 and 95 dB(A) isn't only a nuisance—it's also a danger to your hearing that can cause fatigue of the operator and frequently is a sign of underlying mechanical stress that can reduce component life. Recognizing where the noise comes at the beginning is the key in controlling it.

Why are hydraulic power packs noisy?

The sound produced by a power pack isn't just one thing. It's a combination of several distinct components that each need a unique solution.

Noise generated by pumps

The pump is typically the primary source of noise. Pumps that generate noise are caused by gear teeth that mesh and pressure pulsations because fluid gets trapped and released between the gear teeth and housing. Vane pumps create noise via vane-slot contact as well as ripples when chambers are opened and closed. Piston pumps, although generally quieter with a certain flow rate, can generate high-frequency sound from the piston-to-swashplate connection and flow ripple, particularly when operating at high speeds.

Aeration and cavitation

Cavitation happens when the pressure at the inlet of the pump decreases below the vapor pressure of the fluid, which causes vapor bubbles to form and then collapse violently as they enter higher-pressure zones. This creates a loud and rattling sound that's commonly thought to be mechanical damage. When it's not addressed, the damage can be permanent to the internals of the pump. Aeration, in which air is introduced into the fluid instead of making vapor bubbles, results in an identical but generally soft noise. It also reduces the stiffness of the fluid and reduces system performance.

Resonance and mechanical vibration

A well-designed pump can transmit some of its vibrations into its structure for mounting. If the frame of the power pack reservoir, frame, or mounting brackets have an intrinsic frequency similar to the frequency of operation of the pump as well as its harmonics, the resonance transforms this vibration to create audible sound that is usually higher than the pump's actual noise output.

Fluid-borne noise

Pressure pulsations produced by the pump aren't contained within the pump. They move across the hydraulic fluid as well as through piping with rigidity and emitting noise from every surface they travel through, including valves, blocks, and cylinders and even the frame of the machine the system is attached to.

Noise reduction strategies

Begin with pump selection and the design.

The biggest chance to reduce noise is selecting the correct pump for your purpose. Variable-displacement piston pumps generally run quieter than fixed-displacement gear pumps at equivalent flow because they can operate at lower pressure differentials when full flow isn't needed. Pumps with odd numbers of pistons or specifically shaped geometries for cams and swashplates are designed to eliminate pressure ripple and decrease that tonal "whine" that's most fatiguing to listen to. Operating the pump at a lower speed, when possible, will also lessen noise because noise output generally is proportional to the speed of the shaft in a cube.

Remove the motor and reservoir.

Direct-bolted, rigid mounting between the motor/pump assembly and the frame, or reservoir, is among the most frequent sources of excessive noise since it provides vibration an immediate structural pathway to radiate out from. The isolation mounts made of rubber or elastomeric material between the motor pump group and the frame absorb vibrations before they can join into the structure. A flexible coupling between a motor shaft and the electric motor is superior to a rigid coupling, which keeps minor misalignments from generating more noise and vibration.

Make use of acoustic enclosures.

When isolation and selection of the pump aren't enough for you, an acoustic enclosure is usually the best solution. An appropriately designed enclosure will combine mineral wool or sound-absorbing foam liner with a solid outer shell and baffled or acoustic louvers, which allow for sufficient cooling airflow but not letting sound escape straight. The enclosures can cut down on the sound by about 15 dB(A) by themselves, but they also add cost as well as size. They also need care in distributing heat so the reservoir won't get too hot.

Rethink the design of hoses and pipes

The rigid metal pipe is able to transmit pulsation noise from fluids and also transmits mechanical vibration over large distances. Removing rigid pipe runs close to the pump's outlet with flexible hose sections breaks the transmission pathway. The length of the hose and the routing are important: cutting a hose to resonate with the frequency of the pump's pulsation can amplify noise instead of reducing it; therefore, routing should be avoided for long straight lines at the resonance length whenever it is feasible. Silencers for hydraulics in-line (essentially pulsation dampeners that are based on accumulators) can also be effective in taking pressure ripples off prior to them spreading downstream.

Maintain fluid in a well-conditioned condition.

As cavitation, as well as air aeration, can be major noise generators, fluid conditioning can be an effective noise control measure, as well as a maintenance option. Inlet lines should be constructed well and should be kept short with minimal bends to reduce pressure levels, which trigger cavitation. Reservoirs require a sufficient time to dwell, and baffles that are properly placed allow air trapped in the reservoir to escape prior to the fluid being returned to the pump. Making sure that the fluid is of the right viscosity to operate at the right temperature will avoid the excessive turbulence and pressure loss that a thin or overheated fluid could create at the pump's inlet.

Take care of the structural resonance.

If the sound is louder relative to the pump's sound output, then resonance is likely to be the reason. The addition of stiffening ribs or mass to the panels of reservoirs alters their frequency naturally and could shift it out of the range of operation of the pump. In cases of extreme difficulty, the use of a vibration analysis to determine the frequencies that are actually resonant to the frame and panels is more efficient than the trial-and-error method of damping.

Monitoring and measuring noise

The sound pressure level is determined by dB(A) at the standard distance (commonly one meter) from the device, which is the most widely used benchmark to compare power packs and make sure that improvements are confirmed. Since the decibel scale is logarithmic, a three dB(A) reduction is the reduction of sound energy by halving, although it may not be a significant difference to the ear. It's an important reminder that the combination of numerous small improvements will result in an incredibly noticeable effect. In the case of plants that have multiple power packs, regular sound level monitoring could be used as a low-cost predictive maintenance tool, as the increase in noise levels on a particular unit typically is a sign of wear or damage.

Choosing components for quieter operation

When specifying new equipment or replacing a pump, look for manufacturer-published sound pressure ratings at the intended operating pressure and speed, not just a single best-case figure. Variable-displacement pumps, helical or odd-count gear designs, and pumps explicitly marketed as "low-noise" or "silent" typically use internal design features—such as pre-compression porting—specifically engineered to smooth pressure transitions and reduce pulsation-driven noise.

The primary cause of the sound in a power pack hydraulic?

The pump is generally the primary source of energy, via meshing of vane or gears or pressure pulsation. when the inlet is blocked or the fluid has been degraded, cavitation that produces an unmistakably loud noise, like a rattling.

What is the cost to have an enclosure that is acoustic to reduce the sound of hydraulics?

An acoustic enclosure that is well-designed and has an absorptive liner and baffled ventilation will typically decrease noise by about 15 dB(A); however, the actual results will depend on the enclosure design and the proper cooling airflow.

Does the pump type impact the level of noise significantly?

Yes. Variable-displacement piston pumps generally run quieter than fixed-displacement gear pumps at comparable flow rates, and pump geometries designed to smooth pressure ripple reduce the tonal whine that's most noticeable to the ear.

Does cavitation sound like a noise, and is this a sign the damage is happening?

Cavitation causes an audible or rattling sound at the pump. If ignored, it could create physical damage to the pump internals over time, so it is important to investigate it immediately rather than thinking it is normal operation noise.

Are flexible hoses more effective than rigid pipes in terms of reducing noise?

Flexible hoses close to the outlet of the pump help to break the pathway that pulsation from fluids and mechanical vibration take to travel through rigid pipes and structures, which makes them an easy and efficient noise-reduction option compared to rigid pipes.
