How do you test or inspect a hydraulic accumulator safely?

To test or inspect a hydraulic accumulator safely, isolate and fully depressurize the hydraulic side, lock out and tag out the system, confirm zero hydraulic pressure, and only then check the gas precharge with a proper gauging kit using nitrogen and the manufacturer's procedure. Pair this with a visual inspection, leak checks, and documented periodic testing by qualified personnel. Never disassemble, weld, or drill an accumulator that may still hold stored energy. Hydraulic accumulators store energy in the form of pressurized gas and fluid. That stored energy is exactly what makes them useful for smoothing pulsation, absorbing shock, and providing emergency power, and it is also what makes careless inspection dangerous. A pressure vessel that is mishandled can release energy violently. This guide walks through a practical, safety-first approach to testing and inspecting accumulators in industrial and mobile hydraulic systems.

Why accumulator inspection matters?

An accumulator holds two things at once: pressurized hydraulic fluid and a gas cushion, usually nitrogen. Even after the pump stops, the gas side can keep the fluid pressurized. If a technician opens a fitting on an accumulator circuit assuming it is dead, the result can be a high-pressure fluid injection injury, a flying component, or a ruptured shell.

Regular inspection also protects performance. A drop in precharge reduces the volume of fluid the accumulator can deliver, which can cause pump overwork, pressure spikes, noisy operation, and premature wear in bladders, pistons, and seals. Catching these issues early is far cheaper than a failed component or an unplanned shutdown.

Before you start: Preparation and safety basics

Good preparation prevents most accumulator incidents.

Confirm who is qualified

Only trained and authorized personnel should test, charge, or service accumulators. Pressure vessel rules vary by country and region, so confirm what your local regulations and your insurer require.

Gather documentation

Locate the accumulator nameplate and the manufacturer's manual. You need the maximum allowable working pressure, the specified precharge pressure, the gas type, the serial number, and the inspection history. Never exceed the rated pressure printed on the nameplate.

Use the right equipment

• A gas charging and gauging kit designed for your accumulator's valve type
• Pressure gauges in the correct range and in calibration
• Appropriate PPE: safety glasses or face shield, gloves, protective clothing, and safety footwear
• Lockout/tagout devices and a documented isolation procedure

Plan for the worst case

Assume the accumulator is charged until you prove otherwise. Keep bystanders clear, and make sure the person performing the work knows where the isolation and bleed points are.

Step 1: Perform a visual and external inspection

Begin with a look-and-listen inspection while the system is in its normal safe state before touching any valves.

Check the shell. Look for dents, deep scratches, corrosion, pitting, bulging, or heat damage. Any visible deformation on a pressure vessel is a reason to take it out of service and consult the manufacturer.

Check the nameplate. It should be legible and securely attached. A missing or unreadable nameplate is a compliance problem and a safety risk, since you can no longer verify ratings.

Check fittings and connections. Look for oil weeping around ports, adapters, and the gas valve. External leakage points to seal or connection problems.

Check mounting hardware. Brackets, clamps, and straps should be tight and free of cracks, rust, or vibration wear. A loose accumulator can become a projectile if something fails.

Check safety devices. Confirm that the safety relief valve and any isolation or bleed valve are present, unobstructed, and show no signs of tampering.

Step 2: Isolate and depressurize the hydraulic side

Before any gas-side work, the hydraulic side must be safely isolated and relieved.

1. Shut down the pump and follow your lockout/tagout procedure.
2. Operate the manual bleed or dump valve, if fitted, to release fluid pressure back to the tank slowly and in a controlled way.
3. Watch the system pressure gauge until it reads zero. Do not rely on a single gauge alone; confirm with a second indication if available.
4. Leave the isolation in place for the duration of the work.

If your accumulator circuit has no dependable way to discharge fluid pressure, treat that as a design deficiency and address it. Never loosen hydraulic fittings to bleed pressure.

Step 3: Check the gas precharge safely

The gas precharge is the most important performance parameter of an accumulator, and checking it is a routine task when done correctly.

Use nitrogen only.

Use dry nitrogen only. Never use compressed air or oxygen. Oxygen combined with hydraulic oil under pressure can cause a fire or explosion, and air can promote oil oxidation and diesel-type combustion inside the vessel.

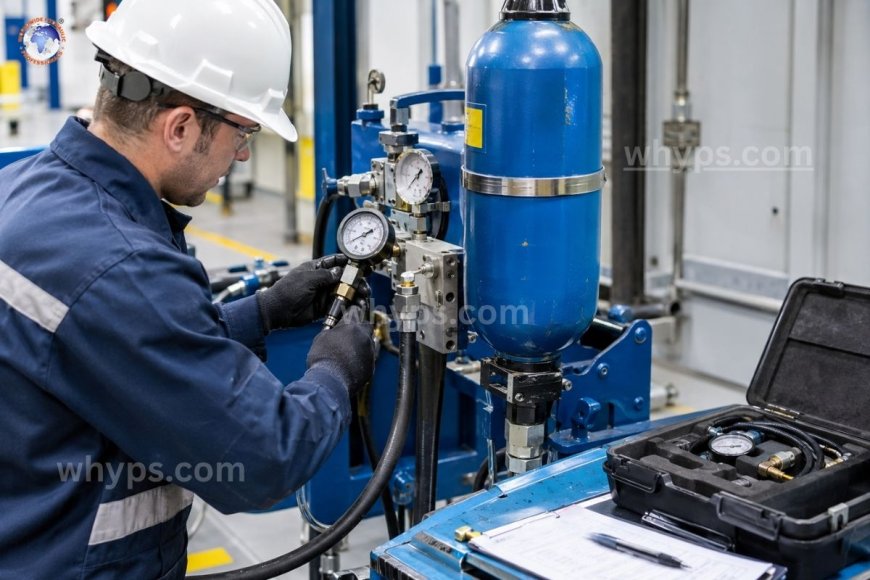

Measure with a gauging kit

With the hydraulic side fully relieved, attach the charging and gauging kit to the gas valve following the manufacturer's instructions. Open the valve slowly so that the gauge reads the current precharge pressure. Compare the reading with the specified value on the nameplate or in the manual.

Precharge is commonly set as a percentage of the minimum working pressure, often in the range of 80 to 90 percent, but the correct figure depends on the accumulator type and the application. Always follow the manufacturer's specification rather than a rule of thumb.

Account for temperature

Gas pressure changes with temperature. A precharge measured on a cold morning will read lower than the same charge at full operating temperature. Record the ambient or fluid temperature when you take the reading, and use the manufacturer's correction guidance where required.

Adjust carefully

If the precharge is low, top up slowly in small steps with a regulated nitrogen supply, pausing to let the pressure settle and checking the gauge frequently. If it is too high, release gas gradually through the kit. Never exceed the specified precharge, and never use an unregulated cylinder directly on an accumulator.

If you find the precharge dropping repeatedly, do not simply keep topping it up. A recurring loss usually means a leaking gas valve, a damaged bladder, diaphragm, or piston seal, or a cracked shell, and the cause needs to be found.

Step 4: Check operation in service

Some problems only show up when the system runs. During normal operation, watch for:

• Pressure behavior: unusual pressure spikes, slow pressure recovery, or erratic cycling
• Pump cycling: a pump that loads and unloads more often than usual can indicate lost precharge
• Noise and vibration: hammering or chatter that was not present before
• Temperature: excessive heat on the shell or at the connection can suggest internal friction or gas compression problems
• Response time: actuators that no longer respond promptly during emergency or backup functions

A change in any of these should prompt a precharge check and, if necessary, deeper inspection.

Step 5: Periodic pressure testing and recertification

Beyond routine checks, accumulators are pressure vessels and may be subject to formal periodic inspection and hydrostatic or pressure testing. Requirements depend on the vessel's design code, size, pressure, and your jurisdiction, so rely on the manufacturer's guidance and the applicable regulations.

Hydrostatic and proof testing should be performed only by competent test facilities or qualified service technicians with proper containment and procedures. This is not a task to improvise on the shop floor. Keep certificates and test records with the equipment file.

Practical do's and don'ts

Do:

• Depressurize and verify zero hydraulic pressure before gas-side work
• Use nitrogen and calibrated, correctly rated equipment
• Record precharge, temperature, date, and technician for every check
• Replace damaged or suspect accumulators rather than repairing shells

Don't:

• Weld, drill, grind, or machine an accumulator shell
• Disassemble a unit that has not been fully depressurized on both sides
• Exceed the nameplate pressure for any reason
• Ignore corrosion, dents, or weeping at the gas valve

How often should you inspect?

A common approach is a precharge check shortly after commissioning, again within the first weeks of service, and then at regular intervals, such as every few months to annually depending on duty. Accumulators in severe, high-cycle, or safety-critical applications warrant more frequent checks. Let the manufacturer's recommendations and your risk assessment set the schedule, and tighten it if you see precharge loss.

Safe accumulator testing comes down to respecting stored energy. Isolate, depressurize, verify, and only then measure. Use nitrogen, follow the manufacturer's procedure, keep good records, and leave pressure testing and repairs to qualified people. A disciplined routine protects your technicians, extends component life, and keeps your hydraulic system performing as designed.

1. How do you check the precharge pressure of a hydraulic accumulator?

Fully relieve the hydraulic side, connect a gas charging and gauging kit to the gas valve, open the valve slowly, and read the pressure. Compare it with the nameplate or manual specification and note the temperature at the time of the reading.

2. Can you check an accumulator while the system is running?

Precharge should be measured with the hydraulic side relieved so the reading reflects gas pressure only. You can observe pressure, noise, and pump cycling while the system runs, but gas-side work should be done only after isolation and depressurization.

3. What gas should be used in a hydraulic accumulator?

Dry nitrogen only. Compressed air and oxygen are dangerous because they can cause oil combustion, fire, or explosion under pressure.

4. What are signs of a failing accumulator?

Repeated precharge loss, oil at the gas valve, erratic pressure, frequent pump cycling, unusual noise, shell damage, or corrosion all indicate a problem that needs investigation.

5. How often should a hydraulic accumulator be inspected?

Follow the manufacturer's schedule and local regulations. Many operations check precharge soon after installation and then every few months to annually, with more frequent checks for demanding or safety-critical duty.
