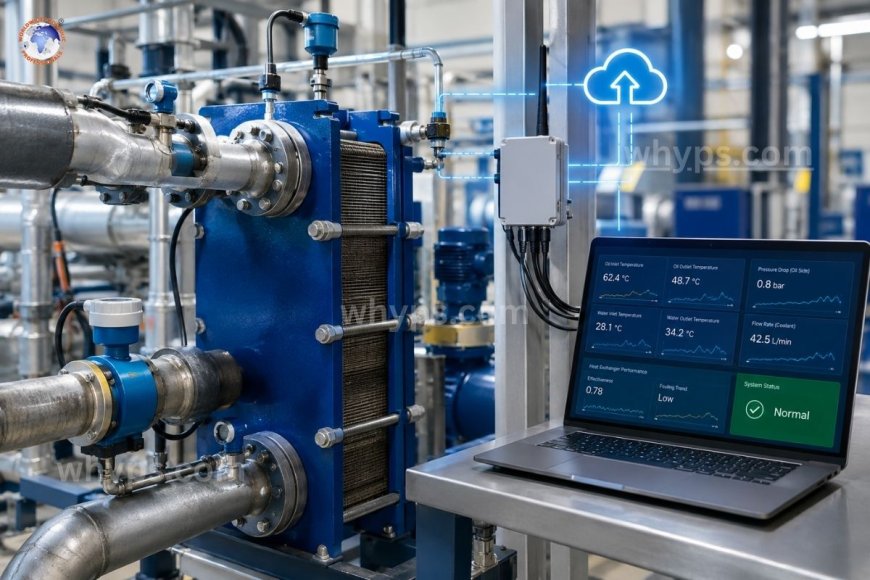

Are there any IoT-based or smart monitoring systems for hydraulic heat exchangers?

Yes. IoT-based and smart monitoring systems for hydraulic heat exchangers are available and increasingly practical. They combine temperature, pressure, and flow sensors (and sometimes vibration or fluid-quality sensors) with edge gateways and cloud or on-premise analytics, so operators can track thermal performance in real time, spot fouling and leaks early, and service the exchanger based on actual condition rather than a fixed calendar. Hydraulic heat exchangers are easy to forget until something goes wrong. They sit quietly in the return line or a cooling loop, removing the heat that pumps, valves, and relief events constantly add to the oil. When a plate pack fouls, a tube bundle clogs, or a water-side flow drops, the oil temperature creeps up, viscosity falls, seals age faster, and the whole system loses efficiency. Smart monitoring turns that slow, hidden decline into data you can act on.

Why heat exchangers are worth monitoring?

Hydraulic oil has a working temperature window. Running hotter than that window accelerates oxidation, thins the oil, increases internal leakage in pumps and valves, and hardens elastomer seals. As a common rule of thumb, oxidation rate roughly doubles for every 10 °C rise above the oil's recommended operating range, so even modest cooling losses shorten fluid and component life.

Traditional practice relies on a gauge or thermometer checked during rounds, plus scheduled cleaning. Both have weaknesses. A manual reading is a single snapshot, and a fixed cleaning interval either services a clean exchanger too early or misses one that fouled quickly. Continuous monitoring closes that gap.

What a smart monitoring system measures

Most systems are built around a small set of measurements that together describe how well the exchanger is working.

Temperature

Inlet and outlet temperature sensors on both the oil side and the cooling-medium side (water, glycol, or air) are the foundation. From these you can calculate the temperature drop across the exchanger and the approach temperature, which is the gap between the oil outlet and the coolant inlet. A widening approach temperature is one of the clearest signs of declining performance.

Pressure and differential pressure

Pressure transmitters on the inlet and outlet of each circuit give you differential pressure. A rising differential pressure on the oil side often points to fouling, sludge, or varnish buildup. On the water side, it can indicate scaling, debris, or a partially blocked strainer. A falling differential pressure combined with poor cooling may suggest bypassing or an internal leak.

Flow rate

Flow meters, or flow switches in simpler setups, confirm that both fluids are actually moving at the expected rate. Heat transfer depends directly on flow, so a drop in coolant flow can look like an exchanger problem when the real cause is a pump, valve, or strainer upstream.

Fluid condition and leak detection

Some installations add inline sensors for oil moisture, particle count, or fluid properties, and conductivity or moisture sensors on the cooling side to catch cross-contamination. Because plate and tube leaks can let water into oil (or oil into a cooling loop), this layer provides early warning before contamination spreads through the hydraulic system.

Vibration and acoustic signals

Where the exchanger is paired with a fan, motor, or circulation pump, vibration sensors can flag bearing wear, imbalance, or cavitation that would otherwise reduce cooling capacity.

How the technology works

A typical architecture has four layers.

1. Sensors collect temperature, pressure, flow, and condition data. Many modern units output a standard 4–20 mA signal or communicate digitally through protocols such as IO-Link.
2. An edge gateway or PLC gathers the signals, filters noise, and performs basic calculations locally. Edge processing keeps critical alarms working even if the network goes down.
3. Connectivity moves data to a supervisory system using common industrial protocols such as Modbus, OPC UA, or MQTT over wired Ethernet, cellular, or Wi-Fi.
4. Analytics and dashboards store the data, display trends, trigger alerts, and, in more advanced setups, apply machine-learning models to predict problems.

Importantly, this does not require replacing the exchanger. Most systems can be retrofitted onto existing equipment by adding sensors at the ports and a gateway nearby.

Key metrics the system calculates

Raw readings become useful once they are turned into performance indicators.

• Heat duty: estimated from flow rate, fluid specific heat, and temperature change, showing how much heat the exchanger is actually removing.
• Effectiveness: the actual heat transfer compared with the maximum possible, tracked over time to reveal gradual decline.
• Fouling trend: a combination of rising differential pressure and a widening approach temperature, normalized for load and flow.
• Thermal margin: how close oil temperature is to its upper limit under current conditions.

Trending these values matters more than any single reading. A slow, steady drift in effectiveness is a reliable signal that cleaning is due, even if no alarm threshold has been crossed.

Benefits of smart monitoring

• Condition-based maintenance. Clean or replace the exchanger when data says it is needed, not on an arbitrary schedule.
• Earlier fault detection. Leaks, blockages, and flow problems appear in the trend before they cause shutdowns.
• Longer oil and component life. Holding oil in its target temperature range reduces degradation and seal wear.
• Less unplanned downtime. Alerts reach maintenance teams before a thermal trip stops production.
• Energy savings. Fans and cooling pumps can be controlled by actual demand instead of running at full output.
• Better records. Logged data supports root-cause analysis, warranty discussions, and audits.

Where these systems are used

Smart heat exchanger monitoring is most valuable where hydraulic systems run hard or where downtime is expensive. Typical examples include injection molding and press lines, steel and metals processing, power generation, marine and offshore equipment, wind turbine gearboxes and hydraulic units, mining machinery, and large centralized hydraulic power units serving several machines. Remote or hard-to-reach sites benefit especially, since data can be reviewed without a technician visiting.

Challenges to plan for

Smart monitoring is not plug-and-forget. A few practical issues are worth considering.

• Sensor placement and quality. Poorly located or uncalibrated sensors produce misleading trends. Temperature sensors need good thermal contact or properly installed thermowells.
• Data security. Connecting industrial equipment to networks introduces cybersecurity considerations, so segmentation, authentication, and encrypted communication matter.
• Alert fatigue. Thresholds set too tight create nuisance alarms that people learn to ignore. Start with conservative limits and refine them with real operating data.
• Integration effort. Matching protocols and fitting data into an existing control or maintenance system takes planning.
• Baseline needs. Predictive models need clean reference data from a known-good exchanger, so capture a baseline right after commissioning or cleaning.

How to get started

A sensible approach is to start small. Install temperature and differential pressure sensors on both sides of a critical exchanger, connect them to your existing PLC or a simple gateway, and record a baseline during normal operation. Set alerts for approach temperature and differential pressure, then review the trends for a few weeks before adding flow metering, fluid-condition sensors, or analytics. Once the value is proven on one unit, the same design can be repeated across other exchangers.

The future: Digital twins and predictive analytics

The direction of travel is toward systems that do more than alert. Digital twins, which are virtual models of the exchanger fed by live data, can compare expected and actual performance and estimate remaining time before cleaning is needed. Machine-learning models can recognize failure signatures from the combined behavior of temperature, pressure, and flow. As sensors become cheaper and connectivity more reliable, these capabilities are moving from large plants to smaller hydraulic installations.

IoT-based and smart monitoring systems for hydraulic heat exchangers do exist, and they give maintenance teams something manual checks cannot: a continuous, trendable view of cooling performance. By tracking temperature, pressure, flow, and fluid condition, they help prevent overheating, extend oil and seal life, and cut unplanned downtime. For most operations, a phased, retrofit-friendly rollout is the lowest-risk way to begin.

1. Can I add IoT monitoring to an existing hydraulic heat exchanger?

Yes. Most systems are retrofitted by adding temperature, pressure, and flow sensors at the exchanger ports and connecting them to a PLC or edge gateway. The exchanger itself usually does not need to be modified or replaced.

2. What are the most important parameters to monitor?

Start with oil and coolant inlet and outlet temperatures and the differential pressure across each side. These reveal fouling, flow problems, and declining heat transfer. Flow rate and fluid-condition sensors can be added later.

3. How does smart monitoring detect fouling?

It looks for a rising differential pressure together with a widening approach temperature, normalized for flow and load. Tracking these trends over time shows gradual fouling well before oil temperature becomes a problem.

4. Does smart monitoring reduce maintenance costs?

It can. Condition-based servicing avoids unnecessary cleaning and catches problems before they cause damage or downtime. The actual savings depend on how critical the equipment is and how well alerts are configured.

5. What protocols do these systems use to send data?

Common options include 4–20 mA analog signals, IO-Link, Modbus, OPC UA, and MQTT, carried over Ethernet, cellular, or Wi-Fi. The best choice depends on your existing control system and site network.
