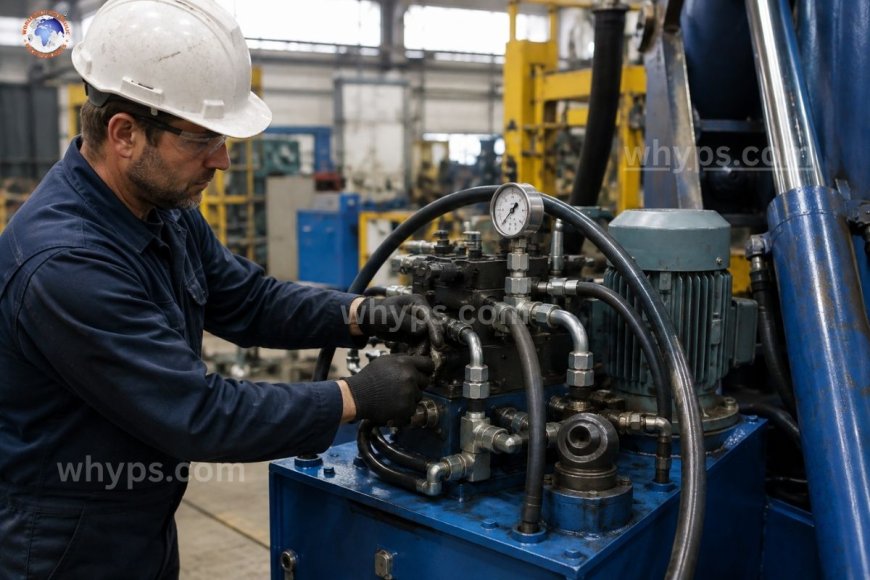

What is fluid power in a hydraulic system?

The term "fluid power" refers to the process that transmits and controls energy using a pressurized fluid that is typically hydraulic oil that is moving through a closed system of valves, pumps, hoses, and cylinders. In a hydraulic system fluid power transforms electrical energy to hydraulic power through the pump and then transforms it to mechanical energy via the actuator, which allows the small force input to create a greater output force.

The power of fluids is the underlying base of the majority of industrial hydraulic equipment use in the present, from excavators to injection molding presses to aircraft landing gears and press brakes manufactured by factories. Knowing how it functions is vital for anyone who's designing maintenance and repairing, as well as troubleshooting the hydraulic system.

The fundamental principle that drives fluid power

Fluid power is based on an easy but incredibly important scientific concept called Pascal's Law, which states that pressure applied to contained fluid is distributed equally throughout the fluid. Since liquids are incompressible, the pressure can be used to accomplish important mechanical tasks with low energy losses.

Practically this means that the hydraulic system is able to utilize a tiny force that is applied to a tiny area and then multiply it to an even greater force across a larger area. This is why a small hydraulic cylinder can support many tons, or the reason an hydraulic press is able to produce crushing force using the power of a small electric motor.

Two fluid-powered branches

The power of fluids is usually divided into two types:

• Hydraulics makes use of liquid (usually synthetic or petroleum-based fluid) as the medium of operation. Hydraulic systems are highly regarded because of their capacity to produce powerful force even in small packages.
• Pneumatics uses compressed gas or air as a working medium. Pneumatic systems tend to be quicker and cleaner; however, they generate less force than hydraulic systems.

This article is focused on hydraulic power, which is the predominant force in mobile, heavy industrial, and off-highway equipment where large force density and precise control are required.

What is the role of fluid power in the hydraulic system?

A hydraulic device converts and transfers energy in a predictable cycle. By breaking this cycle down into stages, it allows you to better understand the origins of fluid power and how it's used.

1. Mechanical energy is introduced into the system.

The process starts with a prime mover, usually an electric motor or diesel engine, which turns the shaft of the hydraulic pump. This is the point where mechanical energy is first introduced into the equation of fluid power.

2. It converts the mechanical power into hydraulic energy.

The hydraulic pump pulls liquid from the reservoir and introduces it to the pump through the system, causing flow. It is important to understand that pumps create flow and not pressure. Pressure will only be created when the flow is in opposition to resistance, for example, a cylinder being loaded or a restriction on the valve. This is a source for confusion within the industry, and understanding it is crucial in identifying issues with performance.

3. Valves direct and regulate the flow of the fluid.

After fluid is flowing, valves are able to take over the control. Directional control valves direct fluid to the right actuator and also determine which direction it is moving as pressure valves shield the system from high pressure. Flow control valves control the motion of the actuators by measuring how much fluid is passing through at any certain period of time. Together, these valves provide an operator a precise command of how the actuator operates and when it does so.

4. The actuators convert the hydraulic energy to mechanical energy.

The final phase of the cycle occurs at the actuator, which is often a hydraulic cylinder (also known as a hydraulic motor). The pressurized fluid is pushed on a piston, which converts energy from hydraulics back into mechanical force or a rotational motion. A cylinder creates the force of linear motion that is perfect in lifting or pressing or pushing. A hydraulic motor creates continuous rotary output that is useful to turn winches, augers, or wheels.

5. The reservoir's fluid returns.

After the process is completed and completing its work, the fluid flows through the system back to its reservoir. There, it's cleaned, cooled, and then re-routed to the pump. This closed-loop return lets hydraulic systems continue to run without the need for new fluid.

The reason fluid power is beneficial for industrial use?

Fluid power has many advantages that make it a preferred option for high-precision, high-force industrial equipment.

Large force-to-size ratio. Since hydraulic fluid is almost incompressible and is capable of being compressed to extreme quantities, the hydraulic parts could be much smaller and lighter than pneumatic or mechanical components capable of producing the same force.

Precision, flexible control. By altering the valve's settings, displacement of the pump, or pressure in the system, users can adjust the force output and speed with an accuracy that is hard to duplicate using only mechanical drivetrains.

Smooth power transmission. Fluid power systems can absorb shock loads efficiently since the fluid itself has an effect of cushioning, which minimizes mechanical wear and helps protect downstream components.

Flexible layout of the system. In contrast to rigid mechanical links, hydraulic tubing and hoses can transfer power over obstacles and distances, giving engineers more design freedom.

Reversibility and force of holding. Hydraulic actuators are able to hold a weight in place when pressure is applied without the need for additional energy input, which is useful for clamping and lifting applications.

Common applications for fluid power

Fluid power is found in many industries due to its unparalleled combination of control and force:

• Equipment for earthmoving and construction, such as excavators and loaders, as well as cranes
• Production presses, injection molding machines, and equipment for metal forming
• Machinery for agriculture, such as combiners, tractors, and implement lifts
• Materials handling equipment, which includes forklifts as well as industrial lifters
• Aerospace systems, for example, landing gears and flight control actuators
• Marine and offshore equipment that needs small, high-force actuation

Maintaining efficiency of the fluid power system

Since the entire system relies on the state that the fluid is in, ensuring fluid quality is crucial for ensuring the power of the fluid. The presence of contaminants, be it from water, particulates, or degraded additive packaging, is the primary reason for component wear and unplanned downtime for hydraulic systems. Routine fluid analysis, proper filtration, and adherence to manufacturer-recommended fluid specifications all help ensure that a system continues to transmit power efficiently over its service life. It is equally important to monitor for internal leakage since any leakage that is minor past seals or valve spools may subduedly reduce pressure in the system and decrease the power delivered to the actuator.

The fluid power system is the invisible motor behind a huge portion of the mobile and industrial equipment that keeps modern businesses running. In converting electrical energy to pressurized flow and back to mechanical energy, hydraulic machines attain the combination of precision, power, and compactness that very few technologies can achieve. For technicians, engineers, and procurement personnel working with hydraulic equipment, having a well-informed understanding of basic concepts of power flow is the foundation for a more intelligent selection of components and more efficient troubleshooting and a longer service life.

What's the main difference between hydraulic power and fluid power?

Fluid power is the broad word that encompasses both hydraulics and pneumatics, as both employ the liquid medium (liquid or gas) to transfer energy. The term "hydraulic power" refers to the usage of liquids, generally hydraulic oil, as a working medium.

Does the hydraulic pump generate pressure?

No. A hydraulic pump produces flow. The pressure is generated only when the flow is confronted with resistance caused by an obstruction, valve, or any other restriction within the system.

Why is a hydraulic fluid that is nearly incompressible vital for powering fluids?

Incompressibility permits pressure that is applied to a single point of the device to be transferred quickly and completely throughout the fluid. This is the key to making precise force multiplication as well as control feasible.

Which are the primary elements of a fluid power system?

The main components include an apex reservoir, a pump and control valves (directional pressure and pressure, as well as flow), as well as actuators (cylinders or motors) and the hydraulic fluid, together with other supporting elements such as coolers, filters and hoses.

What causes a hydraulic system to lose energy with time?

The majority of power loss is due to internal leakage over worn valve components or seals and fluid contamination, degraded viscosity, or fluid retention, all of which affect the system's capacity to efficiently transfer pressure.
