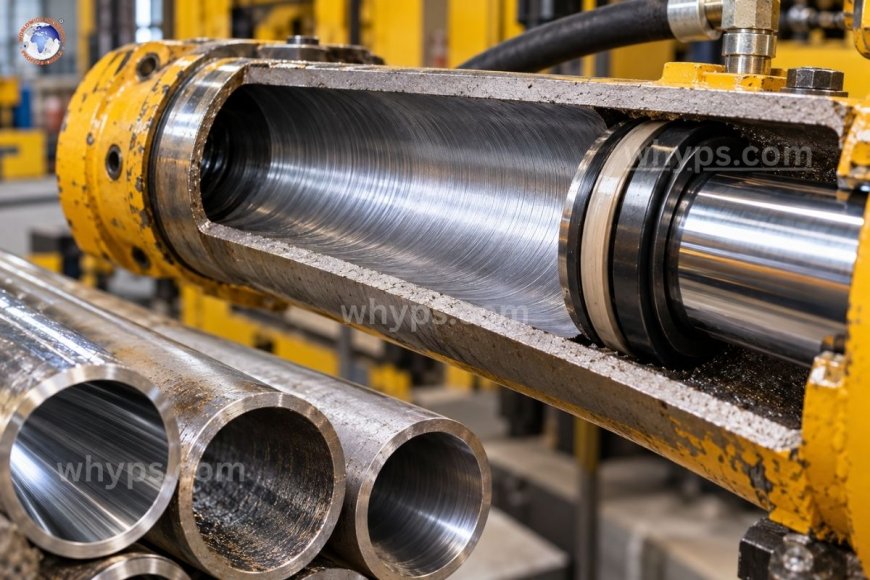

Why is surface finish important in hydraulic tube selection?

Surface finish matters in hydraulic tube selection because the internal bore's smoothness directly determines seal life, contamination control, and long-term system reliability—a rough or inconsistent finish accelerates wear on dynamic seals, promotes turbulent flow and cavitation, traps particulate contamination in microscopic peaks and valleys, and shortens the fatigue life of the tube itself under repeated pressure cycling. Hydraulic tubing looks like a simple, passive component—a conduit that just moves fluid from one point to another. But inside a system running at 3,000, 5,000, or even 10,000 psi, with fluid cycling thousands of times per hour, the internal surface of that tube is doing far more work than it appears. Surface finish, often overlooked in favor of wall thickness or material grade, is one of the most consequential specifications in tube selection.

What "surface finish" actually means?

"Surface finish" refers to the microscopic texture of a tube's internal (and sometimes external) surface—the peaks and valleys left behind by the manufacturing process. It's typically quantified using:

• Ra (Roughness Average)—the average deviation of the surface profile from a centerline, usually expressed in microinches (µin) or micrometers (µm).
• Rz (Mean Roughness Depth)—the average distance between the highest peaks and lowest valleys over a sampling length.

A tube with a low Ra value has a smoother, more consistent internal wall. A tube with a high Ra value has a rougher texture, visible under magnification as jagged ridges and inconsistent grooves left by drawing, welding, or honing operations. For precision hydraulic applications, internal finishes are often specified in the range of 10–32 µin Ra, though requirements vary significantly by application, tube type, and whether the tube houses moving components like a cylinder rod.

Why it matters: The core reasons?

1. Seal and wiper wear

In cylinder tubes and any application where a seal or wiper rides against the internal bore, surface finish is directly tied to seal survival. A finish that's too rough acts like fine sandpaper, abrading dynamic seals with every stroke. Over thousands of cycles, this abrasion leads to seal extrusion, nicking, and eventual leakage—often long before the seal's rated service life would otherwise suggest.

Counterintuitively, a finish that's too smooth can also cause problems. Seals rely on a microscopic film of fluid retained in the surface texture to stay lubricated; a bore that's polished beyond a certain point can starve seals of that film, leading to dry running, heat buildup, and premature failure. This is why cylinder honing specifications call for a controlled "cross-hatch" pattern rather than a mirror finish—the goal is optimal lubrication retention, not maximum smoothness.

2. Contamination control

Surface asperities—the microscopic peaks left behind by rough machining or drawing—act as collection points for particulate contamination. Dirt, wear debris, and degraded additive residue settle into these valleys and are progressively released back into the fluid stream as pressure pulses and flow turbulence dislodge them. This creates a self-perpetuating contamination cycle that's difficult to flush out through normal filtration, since new particles are continuously being shed from the tube wall itself.

For systems where cleanliness targets are specified using ISO 4406 codes, tube surface finish is a real (if often underappreciated) contributor to achieving and maintaining those targets. A rough-finish tube can undermine an otherwise well-designed filtration strategy.

3. Flow characteristics and efficiency

Surface roughness increases frictional resistance to fluid flow. In laminar-flow-dominated hydraulic systems, this translates to a modestly higher pressure drop across long tube runs—a real, if usually small, efficiency loss. In systems where flow velocities are higher, rough internal surfaces are more likely to trigger the transition from laminar to turbulent flow at lower velocities than a smooth-bore tube would, increasing energy loss, heat generation, and noise.

Turbulence near the tube wall also increases the risk of localized cavitation in areas of pressure drop, such as near fittings or bends, which can pit the internal surface over time and further degrade the finish.

4. Corrosion resistance

A rougher internal surface has more actual surface area exposed to the hydraulic fluid than a smooth one, and its peaks and valleys are more prone to trapping moisture and acidic byproducts of oil oxidation. This makes rough-finish tubing more susceptible to localized internal corrosion (pitting) than a smooth-bore equivalent, particularly in systems where water contamination or fluid degradation is already a known issue. Pitted internal surfaces, in turn, create new contamination and become stress concentration points that can seed fatigue cracks.

5. Fatigue life under cyclic pressure

This is perhaps the most consequential and least visible effect. Hydraulic tubing experiences continuous pressure cycling—every actuation stroke, every pump pulsation, and every pressure spike puts the tube wall through a fatigue cycle. Surface irregularities, especially sharp-edged tool marks or inconsistent weld beads in welded tubing, act as stress risers. Fatigue cracks preferentially initiate at these microscopic stress concentration points.

A tube with a smooth, consistent internal finish distributes cyclic stress more evenly across the wall, extending fatigue life significantly. This is a major reason why seamless, cold-drawn, and precision-honed tubing is specified for high-pressure and high-cycle applications—the finish isn't just about smoothness for its own sake; it's a fatigue-life multiplier.

Manufacturing processes and finish outcomes

Different tube manufacturing methods produce inherently different surface characteristics:

• DOM (Drawn Over Mandrel) tubing produces a consistent, relatively smooth internal bore because the mandrel controls the inside diameter directly during drawing—a common choice where finish quality matters but honing isn't justified.
• Seamless tubing offers strong internal consistency but may still require additional finishing operations to hit tight Ra targets for cylinder applications.
• Welded tubing (ERW or similar) can introduce a weld seam bead on the interior that must be removed or smoothed for dynamic sealing applications—an unaddressed weld seam is a common root cause of premature seal failure in budget cylinder builds.
• Honing is the go-to finishing process for cylinder tubes specifically, producing the controlled cross-hatch texture that balances lubrication retention against wear resistance.

Matching finish to application

Not every hydraulic tube needs cylinder-grade honing. A straight fluid-conveyance line between a pump and a valve block has very different finish requirements than a cylinder barrel that a piston seal will ride against for millions of cycles. Over-specifying the finish adds unnecessary cost; under-specifying it on a dynamic sealing surface invites early failure. The right approach is to match surface finish requirements to the tube's actual function in the circuit—static conveyance, dynamic sealing, or high-cycle fatigue exposure—rather than applying a single blanket specification across an entire system.

What is a typical surface finish specification for hydraulic cylinder tubing?

Cylinder bore finishes are commonly specified in the 10–20 µin Ra range with a controlled cross-hatch honing pattern, though exact values vary by cylinder manufacturer, seal type, and pressure rating.

Can a hydraulic tube's surface finish be too smooth?

Yes. Bores polished beyond the range needed for adequate fluid film retention can starve dynamic seals of lubrication, leading to dry running and accelerated wear.

Does surface finish affect hydraulic fluid cleanliness ratings?

Yes. Rough internal surfaces trap and periodically release particulate contamination, making it harder to achieve and hold target ISO 4406 cleanliness codes even with proper filtration in place.

Is surface finish equally important for static conveyance tubing and cylinder tubing?

No. Cylinder bores and other dynamic sealing surfaces require tightly controlled finishes, while static fluid-conveyance lines have more relaxed requirements since no seal rides against them.

How does surface finish influence tube fatigue life?

Rougher surfaces, especially at weld seams or tool marks, create stress concentration points where fatigue cracks preferentially initiate under repeated pressure cycling; smoother, more consistent finishes distribute stress more evenly and extend fatigue life.
