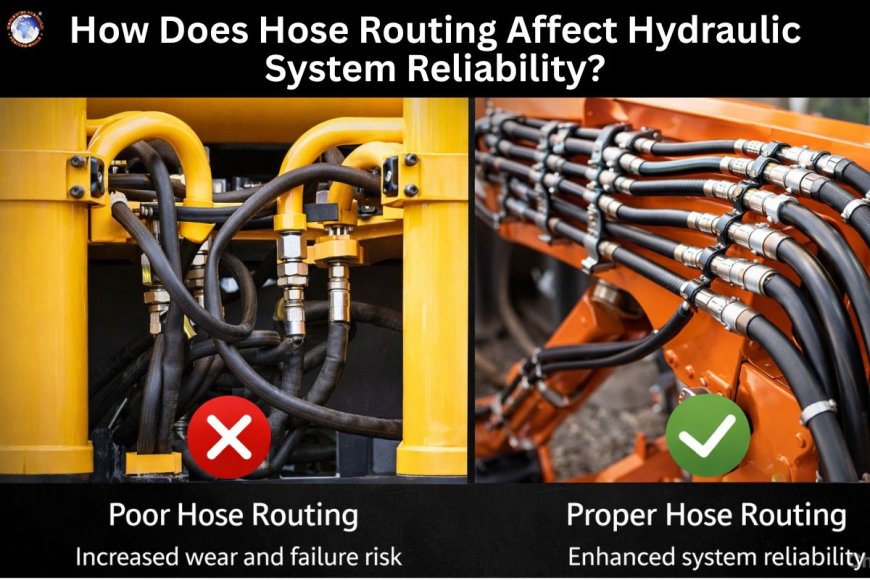

How Does Hose Routing Affect Hydraulic System Reliability?

When it comes to hydraulics, reliability is usually attributed to valves, pumps, cylinders, and control tech. But one of the most neglected factors that affect reliability of the system is the routing of hoses. Unskillful hose routing can cause premature failure, leakage, loss of pressure, or overheating, as well as catastrophic damage to equipment. However, properly planned hose routing improves the efficiency of the system, prolongs the life of the system, and decreases the amount of downtime.

In various industries like mining, agriculture, and construction, hydraulic hoses function as the circulation system of machines. In small tractors or excavators, hydraulic presses, as well as mobile units for service and hose routing, play an important role in the long-term reliability.

This article explains how hose routing directly impacts the hydraulic system's performance, safety, reliability, and maintenance costs. It also outlines the best practices for optimizing the design of routing.

Understanding Hose Routing in Hydraulic Systems

Hydraulic hose routing is the route and position of hoses among system components, such as pumps, valves, reservoirs, cylinders, and actuators. It covers issues such as:

• Hose length

• Bend radius

• Points of clamping

• Movement allowances

• Protection against exposure to the elements

• Clearance from sharp edges and heat

Although hoses can appear soft and flexible, they are designed components with strict design limitations. Insufficient routing causes the reinforcement layer to be under stress, which can cause internal damage that is not evident until failure occurs.

1. Excessive Bending and Reduced Hose Life

Every hydraulic line comes with a minimal bend radius determined by the manufacturer. A hose that is twisted more tightly than this limits:

• Internal reinforcement fatigue

• Wire braid separation

• Limitation of flow

• Heat buildup

• Cracking that is premature

When hoses are squeezed into sharp corners or tight turns, tension builds up at the point of bend. As time passes, pressure pulsations and mechanical vibration increase the injury.

In high-pressure systems such as those found in equipment powered by hydraulic units from companies like Bosch Rexroth or Parker Hannifin, maintaining proper bend radius is essential for sustaining rated performance and preventing burst failures.

Effect on Reliability: Reduced hose life span and an increase in frequency of failure.

2. Improper Hose Length and Tension Stress

The incorrect length of the hose is among the most frequent routing errors.

Too Short:

• Excessive tension under system pressure

• Pulling on fittings

• Faster fitting loosening

• Risk of hose separation

Too Long:

• Whipping the pipe

• Abrasions to the components in proximity

• More damage from vibration

• Flow inefficiencies

Hydraulic hoses must not be placed under tension. When in use, the hoses expand a little under pressure. They expand when they are depressurized. Insufficient slack can cause mechanical strain on the end of the crimped hose, which is usually the weakest area.

Risk of Reliability Leaks, leaks or failures in fitting at the connection points.

3. Abrasion - The Silent System Killer

Abrasion is among the main causes of failures in hydraulic hoses. Poor routing can cause the hoses to

• Rub steel frames against each other

• Contact moving parts

• Drag over a rough surface

• Vibrate with other hoses

Over time, outer cover wear exposes reinforcement layers. If the steel wire braid becomes damaged, the hose quickly loses the ability to contain pressure.

In portable hydraulic equipment, such as tractor-type agricultural equipment or small utilitarian equipment, constant vibration can increase the risk of abrasion. Even the best hoses may fail prematurely if the routing doesn't follow proper spacing and clamping.

The impact of reliability: Gradual degradation leading to a sudden failure of the burst.

4. Heat Exposure and Thermal Degradation

Hydraulic hoses can be sensitive to temperatures that are high. Incorrect routing close to:

• Exhaust manifolds

• Engines

• Hydraulic power units

• Electric motors

Hoses can be exposed to extreme temperatures. This can cause hoses to become too hot.

Temperatures that are elevated increase:

• Rubber hardening

• Cracking in the cover

• Fluid degradation

• Reduction in pressure rating

Manufacturers such as Eaton Corporation design hoses with temperature limits; however, these limits require the proper routing away from sources of concentrated heat.

Utilizing shields of heat, protective sleeves, or rerouting away components that produce heat greatly improves the reliability of.

Reliability Impact: The hose's elasticity is reduced, and higher probability of failure.

5. Dynamic Movement and Flex Fatigue

In articulated and mobile equipment, hoses need to be able to handle continuous motion. Examples include:

• Arms of the Loader

• Backhoe booms

• Steering systems

• Tilting platforms

If routing is not allowing for the full movement, the hoses can:

• Stretch excessively

• Kink during retraction

• Twist internal

• Feel the arc of bending stress

The term "flex fatigue" refers to the fact that pipes repeatedly bend in the same spot with no support. As time passes, the reinforcement layers begin to weaken before visible damage is apparent.

Proper routing is:

• Utilizing swivel fittings when required

• Leaving enough room for slack

• Clamps to support hoses

• Beware of torsional twisting

Risk of Reliability internal hose failure and leaks that are unpredictable.

6. Flow Efficiency and Pressure Drop

Routing impacts not just longevity, but also system performance.

Unnecessarily complicated, long routes become more complex:

• Pressure drop

• Flow resistance

• Energy consumption

• Pump workload

Sharp bends and kinks limit the velocity of fluids and can cause the possibility of turbulence. This can lead to:

• Heat generation

• Reducing the speed of actuators

• System efficiency is lower

Hydraulic system designers who work with the latest motion systems from organizations like NFPA insist on simplifying routing to ensure the effectiveness of flow.

Reliability Impact: More wear on components and pumps because of the increased energy demand.

7. Vibration and Mechanical Shock

Hydraulic systems create pulsations resulting due to pump cycles. When combined with vibrations from machines, the forces cause mechanical tension on the hoses.

Poor routing can increase vibration when hoses:

• Unsupported for long periods of time

• In loose bundles

• Allowed to whip at will

The proper spacing of hose clamps reduces vibration transfer and stops wear and tear at the points of connection.

When it comes to industrial lines of manufacturing as well as heavy machinery systems utilized by firms like Caterpillar Inc., vibration management by ensuring proper routing of hoses is essential to ensure that the machine runs smoothly.

Risk of Reliability Cracks in the hose due to fatigue and rupture of hoses.

8. Risks of contamination from poor routing

Routing that lets hoses slide towards the ground or drag across surfaces that are contaminated exposes them to:

• Dust

• Metal particles

• Chemicals

• Water intrusion

Covers that are damaged allow contaminants to enter the reinforcement layers. In extreme cases, contaminants get into fittings during maintenance because of poor routing as well as exposed pipelines.

Hydraulic contamination is the primary reason behind system failure. A proper routing system helps ensure the cleanliness of closed pathways for fluid flow.

Reliability Impact Contamination with fluids and wear to internal components.

9. Safety Implications of Poor Hose Routing

Hydraulic systems work under very high pressures, often exceeding 3,000 to 5,000 PSI.

A bad route increases the chance of:

• Hose explodes

• High-pressure fluid injection injuries

• Equipment fires (if near hot surfaces)

• Environmental spills

Hoses that explode not only stop operations, but can also create dangers to safety for operators and maintenance crews.

The proper routing minimizes these risks by ensuring that hoses work within safe thermal and mechanical limits.

Effect on Reliability: Lower operational risk and improved workplace security.

Best Practices for Reliable Hose Routing

To increase the reliability of hydraulic systems, take into consideration the following principles of design and installation:

1. Follow Manufacturer Bend Radius Guidelines

Do not exceed the minimum bend radius requirements.

2. Allow for Pressure Expansion

Add slack to allow for the lengthening of hoses when under pressure.

3. Avoid Torsion

Do not twist hoses during installation.

4. Use Proper Clamping

Connect hoses using clamps that are cushioned at the recommended intervals.

5. Separate hoses from heat sources

Install heat shields in the event that it is not possible to reroute.

6. Protect Against Abrasion

Use abrasion sleeves and spiral guards if a risk of contact is present.

7. Plan for Motion

Make sure that routing accounts are set up for the entire articulation range of your equipment.

8. Keep Routing Simple

Reduce loops that are unnecessary and of excess length.

The Role of Preventive Maintenance

Even hoses with perfect routing need to be inspected.

Maintenance teams should check regularly for:

• Coverwear

• Blisters or bulges

• Leaking fittings

• Cracks or hardening

• Locked clamps loose

Early detection of stress related to routing can prevent unexpected downtime.

Economic Impact of Poor Hose Routing

A faulty hose routing might seem small during the installation process. However, the cost over time is:

• More frequent replacement of hoses

• Downtime losses

• Emergency repair expenses

• Parts that are damaged

• Safety incidents

In industrial and mobile factories In industrial plants, a single leak could shut down production lines or shut down heavy machinery, resulting in substantial financial losses.

Spending time on an efficient routing design can reduce the lifecycle cost of a product drastically.

Hose Routing in Modern Hydraulic Design

With the advent of smaller equipment, automation, and machines that are space-constrained, the challenges of routing are growing. Modern machines incorporate:

• Systems with higher pressure

• Manifolds for compact manifolds

• Electronic controls

• Smart monitoring systems

Designers now employ 3D modelling and simulation software to design the optimal routing of hoses before physical assembly. The proper routing process is no longer a secondary consideration, but is incorporated into system engineering right from the beginning.

The routing of hydraulic hoses is more than just an installation issue. It is an essential determinant of the reliability of the hydraulic system. Poor routing causes mechanical stress, abrasions, or overheating, damage to vibration, as well as contamination and security hazards. In contrast, careful routing increases reliability, durability, safety, and efficiency.

from industrial generators to construction equipment that is mobile, the reliability of performance is dependent on hoses that are properly calibrated, supported, and placed.

Within the realm of hydraulics, even the most powerful pump or the most sophisticated cylinder is unable to be able to compensate for hoses that are poorly routed. Reliability is not only a matter of choice of components, but also through intelligent design of the hose routing.
