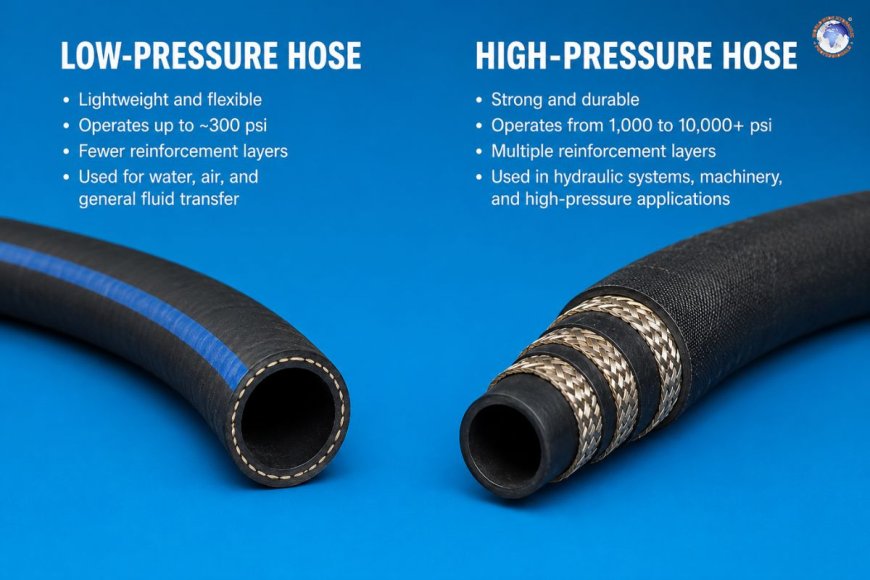

What is the difference between low-pressure and high-pressure hoses?

In both hydraulic and fluid transfer equipment, the hose plays an essential function in efficiently and safely moving gases or liquids from one place to another. In industrial machinery such as automobile systems, construction equipment, or agricultural applications, selecting the appropriate kind of hose can greatly affect the performance, safety, and endurance.

One of the two widely utilized kinds can be described as low-pressure hoses and high-pressure hoses. Although they appear identical at first glance, they are vastly different regarding design, materials, applications, and performance capabilities. Understanding the differences is vital for technicians, engineers, and all those who work in fluid systems.

This blog examines the most important differences between high-pressure and low-pressure hoses in greater detail.

Understanding hose pressure ratings

Before examining the distinctions in pressure, it's essential to know the meaning of "pressure" means in this context. Pressure is the force that is exerted by the fluid inside the hose, usually expressed as psi (pounds for every sq inches) or bar.

• Low-pressure hoses typically operate at a pressure of less than 300psi (though this could be different based on standards in the industry).
• Hoses with high-pressure are designed to handle pressures that range from 1,000 psi up to 10,000psi.

Pressure ratings are important since using the wrong hose could cause the system to fail, leak, or even cause hazardous explosions.

1. Construction and design

Low-pressure hoses

Low-pressure hoses are typically simpler to construct. They are made of:

• PVC, rubber, or thermoplastic materials
• Minimal reinforcement (if there is any)
• Lightweight layers

Since they're not subjected to extreme stress, they don't need intricate reinforcement structures. This allows them to be more mobile and easier to handle.

High-pressure hoses

High-pressure hoses are engineered to provide robustness and durability. The typical construction includes:

• Tubes inside (fluid-resistant material)
• Many layers of reinforced (steel wire braids or spirals)
• Cover for outer protection (abrasion, heat, and chemical resistance)

The layers are able to withstand pressure and avoid bursts.

2. Material composition

Low-pressure hoses

Common materials are:

• PVC (Polyvinyl Chloride)
• Rubber compounds
• Polyurethane

They are economical and suitable for moderate applications like water transfer and air flow.

High-pressure hoses

High-pressure hoses are made of more durable materials, such as:

• Synthetic rubber (like nitrile and Neoprene)
• Thermoplastics
• Reinforced steel wire

They provide the strength and flexibility required under pressure and resistance to oils as well as heat and chemicals.

3. Pressure handling capacity

It is the most evident distinction.

The high-pressure hoses are rigorously tested to make sure they are able to handle abrupt pressure spikes, which are called tension surges.

4. Flexibility and weight

Low-pressure hoses

• Lightweight
• Highly flexible
• Easy to set up and maneuver

These features make them perfect for situations where constant moving or repositioning is needed.

High-pressure hoses

• Heavier because of reinforcement layers
• Flexible but not as flexible (especially with hoses that are spiral reinforced)
• Be careful when handling the product during installation.

Modern designs offer greater flexibility without weakening the strength.

5. Applications

Low-pressure hose applications

Low-pressure hoses are typically employed in:

• Systems for water supply
• Air compressors
• Irrigation systems
• Fuel lines (low-pressure side)
• Transfer of Coolant

These applications don't need a lot of force, but they still require reliable fluid flow.

High-pressure hose applications

High-pressure hoses are crucial in harsh environments like:

• Hydraulic systems (excavators, loaders, tractors)
• Industrial machinery
• Operation of oil and gas
• Pressure washing equipment
• Mining and construction equipment

In these scenarios, the hose needs to handle the force with no issues.

6. Safety considerations

Low-pressure hoses

Although generally safer due to less pressure, the risks exist: Leaks

• Cracks from wear
• Material degradation over time

A regular inspection is still vital.

High-pressure hoses

High-pressure hoses are more prone to failure in the event of failure:

• Injuries can result from sudden bursts
• Fluid injection injuries (very dangerous)
• Equipment damage

Due to this it is because they need:

• Strict maintenance schedules
• Proper installation
• Safety fittings and guards

7. Cost differences

Low-pressure hoses

• Lower cost at first
• Maintenance costs are minimal.
• Affordable replacement

Perfect for budget-conscious or less demanding tasks.

High-pressure hoses

• A higher upfront cost
• Connectors and fittings that are more expensive
• Costs of maintenance and inspection

However, their expense is justified by their performance and safety.

8. Durability and lifespan

Low-pressure hoses

• Shorter lifespan under harsh conditions
• Susceptible to environmental damage (UV, abrasion)

High-pressure hoses

• More long-lasting if properly cared for
• Resilient to the most extreme of conditions
• Made for use in heavy-duty environments

However, misuse could reduce the lifespan even of the most durable hose.

9. Standards and testing

High-pressure hoses have to meet the strict standards of the industry, for example:

• SAE (Society of Automotive Engineers)
• ISO (International Organization for Standardization)

They go through tests to determine:

• Pressure surge
• Flexibility
• Resistance to temperature
• Life expectancy of fatigue

Low-pressure hoses are also able to meet guidelines; the standards aren't as strict.

10. Temperature resistance

Low-pressure hoses

• Temperature tolerance is limited.
• Appropriate for both moderate and ambient conditions
• High-pressure hoses

• Can handle extreme temperatures
• The design is suitable for working in steam, hot oil, or cold climates

The resistance to temperature is crucial in hydraulic systems.

11. Installation and maintenance

Low- pressure hoses

• Installation is simple and easy to do
• Only a few tools are required
• Simple maintenance

High-pressure hoses

• Installation requires skilled expertise
• A proper route is vital.
• Do not bend beyond the maximum bend radius

Maintenance is comprised of:

• Regularly scheduled inspections
• Inspecting for bulges or leaks
• Replacing worn fittings

12. Fittings and connections

Low-pressure hoses use simpler fittings like:

• Clamps
• Push-on fittings

High-pressure hoses need:

• Crimped fittings
• Connectors with threaded threads
• Couplings that are engineered to perfection

The incorrect fittings can cause failure, particularly when at high pressure.

Choosing the right hose

The decision to choose between high-pressure and low-pressure hoses is based on a variety of variables:

1. Operational pressure is the most important element
2. The type of liquid: water, oil, chemical, etc.
3. Temperature conditions
4. Environment: outdoor, indoor, abrasive environments
5. Requirements for flexibility
6. Budgetary restrictions

Utilizing a pipe that is not in compliance with the requirements of the system could result in failure, damage, or even safety risks.

Common mistakes to avoid

• Utilizing a low-pressure hose within a high-pressure system
• Not paying attention to pressure surges or spikes
• Poor route of hose
• Not completing regular inspections
• Using incompatible fittings

This can lead to expensive downtime as well as serious security risks.

Future trends in hose technology

The latest developments with hoses are helping to bridge the gap between strength and flexibility. Innovations include:

• High-pressure hoses that are lightweight and lightweight.
• Smart hoses that have sensors embedded
• New materials that are better suited for resistance to chemicals
• Environmentally friendly manufacturing processes

The latest developments in hoses are making them more durable, efficient, and secure than ever before.

Low-pressure and high-pressure hoses may serve the same basic function--transporting fluids--but they are fundamentally different in design, capability, and application.

• The hoses that are low-pressure are easy to use, flexible, cost-effective, and perfect for daily fluid transfer tasks.
• The hoses that are high-pressure are strongly designed, reinforced, and designed to withstand harsh situations where both safety and efficiency are essential.

Knowing these distinctions is crucial in deciding on the appropriate hose for your project. Making the right choice will not only guarantee the system's efficiency but increases safety and decrease the cost of maintenance over time.

In the industries that have hydraulics and power fluids are essential, the simple hose is more than an accessory. It is a crucial element that helps keep operations running efficiently and safely.
