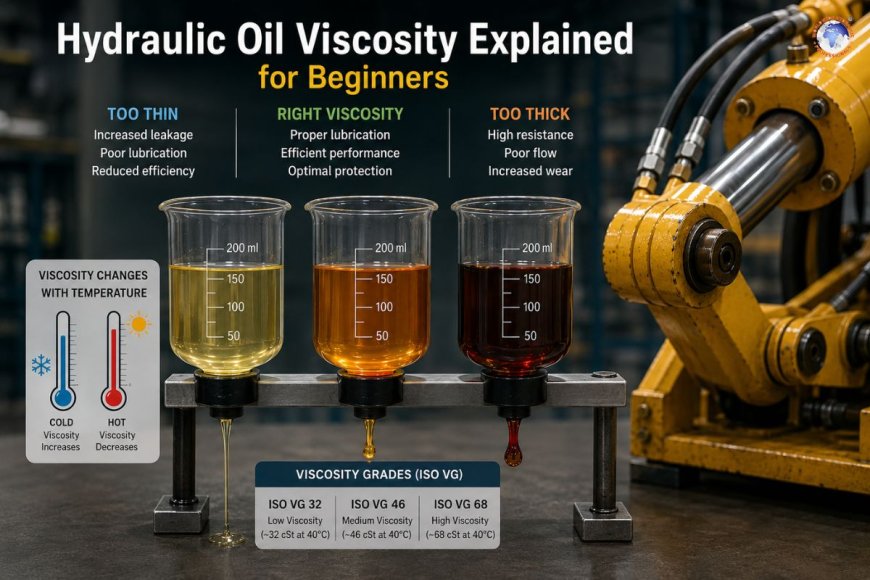

Hydraulic oil viscosity explained for beginners

Hydraulic systems form the basis of many machines, from excavators to tractors to production presses, as well as aircraft systems. In the core of these systems is hydraulic oil, a liquid used for power transmission as well as lubricating the components and dispersing heat. Of all its features, viscosity stands out as one of the most important elements that affect the efficiency of the system, its performance, and endurance.

If you're a novice to hydraulics, the word "viscosity" may sound like a complex technical term. However, it's actually an uncomplicated concept that has a significant impact. This guide will take you through what the concept of hydraulic oil viscosity means and why it's important, as well as how it's measured and how to select the most appropriate viscosity to suit your needs.

What is viscosity?

Viscosity is the term used to describe a liquid's capacity to withstand flow. In simplest terms, it explains the degree to which "thick" or "thin" the liquid is.

• Fluids with high viscosity are denser and move more slowly (like honey).
• Lower viscosity liquids are lighter as well and can flow much more quickly (like the water).

Hydraulic oil has to find the right balance - not too thick, but not too thin, so that it can do its job efficiently.

Why viscosity matters in hydraulic systems?

Hydraulic systems depend on fluids to transmit power. If the oil isn't of the proper viscosity, a variety of problems could arise:

1. Efficient power transmission

Hydraulic oil transfers power from the pumps to actuators, such as motors or cylinders. If the oil isn't thick enough, it could leak internally and cause a decrease in effectiveness. If it's too thick, it blocks flow and wastes energy.

2. Proper lubrication

Moving parts within valves, pumps, and cylinders require lubrication in order to stop wear. A viscosity that is appropriate for oil forms an effective film of protection between surfaces. Too thin and the film is broken into pieces. It is too thick and might not be able to flow through tight spaces.

3. Heat dissipation

Hydraulic systems generate heat during operation. Oil assists in carrying this heat away. If the viscosity of the oil is too high, the oil might not circulate properly and cause overheating.

4. Sealing capability

Hydraulic oil also functions as an adhesive within internal parts. A proper viscosity can prevent leakage and help maintain pressure inside the system.

How does temperature affect viscosity?

The most important points to be aware of are the fact that viscosity is a variable when temperature changes:

• As the temperature rises, the oil's viscosity decreases (viscosity diminishes).
• As the temperature decreases, oil becomes denser (viscosity rises).

This can have a significant impact on the system's performance:

• In colder weather, the thick oil can make start-up difficult and cause strain on pumps.
• In extreme heat, the thin oil can cause leakage and less lubrication.

This is why choosing oil that has the right viscosity properties for your temperature range of operation is crucial.

Viscosity grades explained

Hydraulic oil is classified based on viscosity grades. They are typically in accordance with an ISO (International Organization for Standardization) standard. They are also known by the ISO VG (Viscosity Gradient) numbers.

Common ISO viscosity grades:

• ISO VG 32 (low viscosity)
• ISO VG 46 (medium viscosity)
• ISO VG 68 (higher viscosity)

The value represents the viscosity of oil in the range of 40 °C and is expressed as centistokes (cSt).

For instance:

• ISO VG 32 has a viscosity of 32 cSt at temperatures of 40 °C.
• ISO VG 46 has about 46 cSt when it is at 40 °C.

Choosing the right viscosity

The selection of the right hydraulic oil viscosity is based on several aspects:

1. Operating temperature

• Colder environments use lower viscosity oils (easier flow)
• Extremely hot environments: Use a more viscous oil (maintains the thickness)

2. System design

• High-pressure systems usually require oil with higher viscosity to provide better sealing.
• Precision systems that have high tolerances could require less viscosity for smooth operation.

3. Pump type

Different pumps require different viscosities:

• Gear pumps are able to handle a larger viscosity range.
• Vane and piston pumps typically require more precise control of viscosity.

4. Manufacturer recommendations

Always read the manual for your equipment. Manufacturers recommend the best viscosity for the highest performance.

Viscosity index (VI): What does it mean?

The Viscosity Index (VI) indicates how the viscosity of oil varies as temperature increases.

• High VI oils. There are fewer changes in viscosity as the temperature increases
• Oil with low VI has more change in viscosity

The high VI oil is particularly beneficial in areas with high temperature fluctuations, since they provide more stability in performance.

What happens if viscosity is too high?

Utilizing oil that is too thick may cause a variety of issues:

• Energy consumption is rising.
• Sluggish system response
• Troubles during cold starts
• Cavitation in the pump due to low flow
• Excessive heat generation

In extreme situations, it could even cause damage to parts of the system.

What happens if viscosity is too low?

The oil that is not thick enough is just as dangerous:

• Internal leakage is increasing
• Reducing system efficiency
• Wear and tear on the equipment is a result of poor lubrication.
• Pressure loss
• Greater chance of component failure

Multi-Grade and Single Grade. One-Grade Hydraulic Oils

Certain hydraulic oils are engineered to work well over the entire temperature range. These are sometimes called Multi-grade oil.

Single-grade oils:

• Created to provide stable temperatures
• Less expensive
• Flexible but not as much

Multi-grade oils:

• Performance is better across temperature variations
• Index of higher viscosity
• Perfect for outdoor or unpredictable conditions.

Additives and their role

The majority of hydraulic oils contain components that can improve performance, such as:

• Anti-wear agents - protect components
• Antioxidant agents help extend the life of oil
• Foam-blocking agents to prevent air bubbles
• Inhibitors of rust protect metal surfaces

While additives don't directly affect viscosity, they can help improve the oil's performance in different conditions.

Measuring viscosity

Viscosity is measured with specialized instruments and is expressed as:

• Centistokes (cSt) - for Kinematic viscosity
• Saybolt Universal Seconds (SUS) - older measurement system

Modern hydraulic specifications rely on centistokes.

Real-world example

Imagine a construction piece of equipment operating in two distinct environments:

• Cold and chilly morning (10 °C):
  • The oil increases the thickness of the oil.
  • The machine begins to run slowly
  • The pump is more powerful
• Hot afternoon (40 °C):
  • Oil gets thinner
  • Internal leakage rises
  • Efficiency drops

Utilizing a hydraulic oil that has the proper viscosity as well as a high viscosity index will help you keep the same performance through the entire day.

Tips for beginners

If you're only beginning your journey in hydraulics, here are some useful tips:

1. Always follow the manufacturer's guidelines.
   It is the best way to guarantee the correct viscosity.
2. Be aware of your surroundings
   The temperature is a major factor in the behavior of oil.
3. Check System performance
   changes in speed, noise, or temperature can be a sign of viscosity issues.
4. Regularly analyze oil.
   The process can help identify changes in viscosity as well as contamination early.
5. Do not mix different oils.
   Mixing may change the viscosity of the oil and decrease performance.

Common misconceptions

"Thicker oil is always better."

This is not the case. While oil that is thicker provides more seal, it could decrease efficiency and cause wear on certain systems.

"Viscosity doesn't change much."

In actuality, the temperature has a major impact on viscosity, particularly in extreme conditions.

"Any hydraulic oil will work."

Different systems need specific viscosity levels. The wrong choice could cause serious issues.

The bottom line

Hydraulic oil viscosity is a fundamental element that directly affects the performance, efficiency, and longevity of hydraulic equipment. It is the measure of how efficiently oil moves, lubricates, seals, and transmits energy.

For those who are new to the field, the most important thing to remember is this:

• Too thick means low flow and resistance.
• Too thin means leakage and poor lubrication
• The right way = best performance of the system

By determining the viscosity of your oil and selecting the correct hydraulic oil, you will be able to ensure smoother operation, less wear, and extend the equipment's longevity.

Hydraulic oil viscosity might appear like a minor issue, but it has a significant impact on how hydraulic systems work. When you're in charge of maintaining industrial equipment, agricultural equipment, or construction vehicles, making sure that the viscosity is right is vital.

As you progress in your experience, you'll begin to understand how viscosity works with temperature, design, and operating parameters. Even as a novice, grasping this notion can help you make better maintenance decisions.
