How do load-sensing valves reduce fuel consumption in mobile machinery?

In the current competitive construction, agricultural, and material handling sectors, the importance of fuel efficiency is no longer just a cost issue; it's an indicator of performance. Mobile machines like excavators, loaders, tractors, and cranes heavily rely on hydraulic systems for difficult tasks. Many developments have greatly increased hydraulic efficiency; load-sensing (LS) valves are a game-changing innovation.

How exactly can load-sensing valves help reduce the consumption of fuel? The solution lies in how they can intelligently match the power of hydraulics to actual demand. This blog examines the principle, the benefits, as well as the real-world effects of load-sensing valves and fuel consumption of mobile machines.

Understanding traditional hydraulic systems

To comprehend the power of load-sensing systems, it is important to know how traditional hydraulic systems function.

In a conventional system, commonly referred to as the constant flow or open-center systems--the hydraulic pump supplies an exact flow of oil, irrespective of the demand of the machine. Even when there is no work being done, the pump continues to move oil at a 100% capacity. This leads to:

• Excessive energy consumption
• Heat generation
• Fuel waste

Similar to that, constant pressure systems keep high pressure constantly, even when it's not needed. Both of these approaches result in failures due to the fact that the system isn't flexible to the changing load conditions.

What is a load-sensing valve?

The Load-sensing valve is an essential component in a load-sensing hydraulic system that regulates pump output according to the demand for load. Instead of providing constant pressure or flow, the system responds dynamically to the heaviest load that is in the circuit.

The system functions by analyzing the required pressure to complete the task, and then signalling the pump to supply only the amount of flow as well as the pressure needed to meet the need. No more, no less.

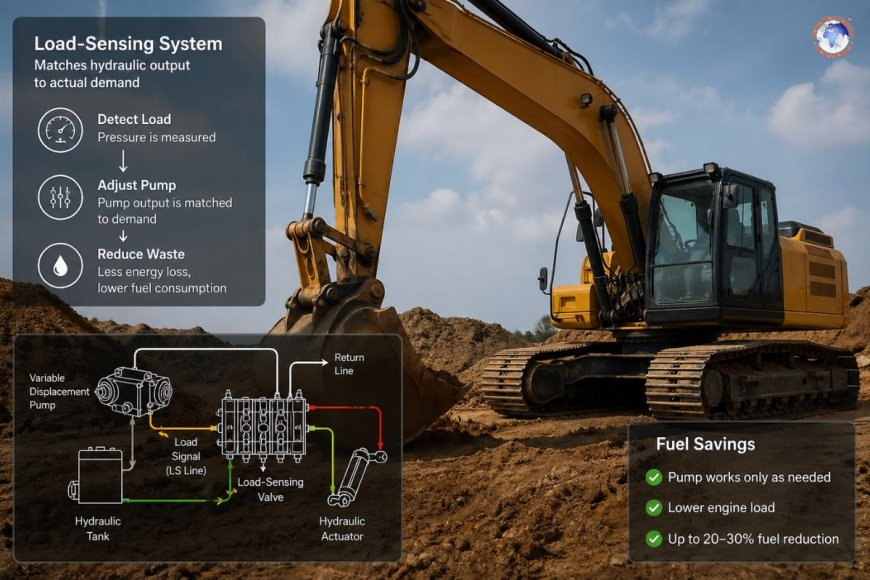

How do load-sensing systems work?

The core of any load-sensing system is three primary elements:

1. Variable displacement pump
2. Load-sensing directional control valve
3. Load-sensing signal line (LS line)

Here's how they work:

1. Detecting load pressure

Every actuator (such as motors or hydraulic cylinders) requires a certain amount of pressure to complete its function. The load-sensing valve senses the pressure requirement and then sends it to the LS line.

2. The pump is communicating with you

The LS signal is sent to the controller for the pump. The pump is then able to adjust its movement to keep an extremely small margin of pressure (typically 10- 30 bar) above the maximum pressure of the load.

3. Delivering just enough flow

Instead of operating at maximum capability, the pumps provide the flow required to run the operation at hand. If several functions are in operation, the system will prioritize the one with the greatest load.

4. Continuous adjustment

If the load changes, for example, lifting heavier objects or reducing effort, the system adjusts flow and pressure in real-time.

The key mechanism behind fuel savings

The most important reason why load-sensing devices reduce the amount of fuel used is energy efficiency. Let's take this issue further.

1. Eliminating unnecessary pump work

In traditional systems, the pump operates at maximum power regardless of the need. The engine is constantly consuming power. In contrast, load-sensing systems:

• Reduce the displacement of the pump when the demand is low
• Lower engine load
• Minimize fuel consumption

By avoiding work that is not needed and avoiding unnecessary work, the engine can run more effectively.

2. Reducing throttling losses

Traditional valve systems usually limit flow by restricting it, resulting in pressure drops and also lost energy, in terms of heat. To reduce throttling, load-sensing valves:

• Demand-side matching directly to flow
• Maintaining optimal pressure levels
• Reduced energy consumption

A lower loss of energy as heat means more energy will be at hand for work that is useful, and less fuel is consumed.

3. Lowering system pressure

In non-LS systems, the pressure is usually higher than what is needed, which can lead to inefficiency. Systems that sense pressure only maintain the pressure required, plus an additional margin. This leads to:

• Lower stress on the hydraulic system
• Lower energy consumption
• Better fuel economy

4. Improving engine efficiency

Since it is among the biggest loads on engines, the optimization of its operation has an immediate impact on the amount of fuel used. The load-sensing system allows:

• Lower engine RPM in moderate loads
• More accurate load matching between the engines and hydraulics
• More efficient fuel combustion

Real-world fuel savings

The savings in fuel costs resulting from load-sensing technology can be huge. For many mobile applications:

• The amount of fuel consumed can be cut by 15 to 30 percent
• The amount of fuel used in idle is reduced significantly.
• The efficiency per liter is increased

For large fleets of heavy-duty equipment, the savings could translate into significant cost savings in the long run.

Additional benefits beyond fuel efficiency

While savings on fuel are an important benefit, loading-sensing valves have additional benefits that boost the overall performance of machines.

1. Reduced heat generation

Since energy losses are reduced as a result, less heat is produced within the hydraulic system. This can lead to:

• Oil lasts longer
• Reducing cooling requirements
• Lower chance of overheating

2. Increased component lifespan

Reduced stress and lower pressure on components can result in:

• Wear and tear less
• Longer service intervals
• Lower maintenance costs

3. Enhanced operator control

Load-sensing systems offer better and more precise control that allows operators to:

• Perform tasks more precisely
• Reduce jerky movements
• Increase the safety of your employees and increase productivity.

4. Multi-function efficiency

In machines that can perform several tasks simultaneously (e.g., excavator swings and lifting), load-sensing systems include:

• Distribute flow effectively
• Prioritize heavier loads
• Maintain consistent performance

Applications in mobile machinery

Load-sensing valves are extensively employed in various kinds of mobile equipment. This includes:

Construction equipment

• Excavators
• Wheel loaders
• Backhoe loaders

Agricultural machinery

• Tractors
• Harvesters
• Sprayers

Material handling

• Forklifts
• Telehandlers
• Cranes

In all of these applications, the ability to adjust hydraulic output in real-time to changing demands results in significant savings on fuel and increased efficiency.

Load-sensing vs conventional systems

This example clearly demonstrates how load-sensing technology is becoming the norm in mobile machines of today.

Challenges and considerations

Despite their benefits, load-sensing systems don't come without challenges:

1. Higher initial cost

The load-sensing system is more complex and can be more expensive upfront than conventional systems.

2. Maintenance complexity

They need skilled technicians to assist with troubleshooting as well as maintenance.

3. Sensitivity to contamination

A clean hydraulic fluid crucial since contamination could affect the valve's performance.

However, the benefits of long-term savings on fuel and lower maintenance costs usually overshadow the initial drawbacks.

Future trends in load-sensing technology

As the need for sustainability and energy efficiency is increasing, load sensing systems are evolving with the latest technologies:

1. Electro-hydraulic integration

Combining electronic control with load sensing will allow for more precise system control.

2. Smart sensors and IoT

Monitoring in real-time and predictive maintenance can improve effectiveness and ensure reliability.

3. Hybrid and electric machinery

The principles of load sensing are being modified for use in hybrid or fully electric devices.

Practical example: excavator operation

Think about an excavator for tasks of lifting and digging:

• In a traditional device, the pump is operating at maximum capacity, no matter if the bucket is empty or full.
• In a load-sensing device, the pump will adjust its output in accordance with the resistance that is encountered.

If digging soil that is soft, it is easier to use less pressure as the system decreases the output of the pump, thereby saving fuel. When lifting a large load, the system boosts output in line with.

This dynamic adjustment makes sure that fuel is only used when it is needed.

The load-sensing valves are a major improvement in the design of hydraulic systems and offer a better, more efficient approach to control power consumption in mobile machines. Through continuously matching hydraulic output to demand, these valves reduce unnecessary energy, cut down on the engine's load, and consequently reduce the amount of fuel consumed.

The benefits extend beyond energy savings, but also in terms of improving the performance of machines, increasing the lifespan of components, and increasing the control of operators. Although the initial cost may be greater, the long-term improvements in efficiency and savings make load-sensing systems an essential component of contemporary mobile technology.

In the midst of industries that continue to focus on sustainability and efficiency in operation, the technology of load sensing will stay at the forefront of hydraulic innovations, helping machines perform more tasks using less fuel.
