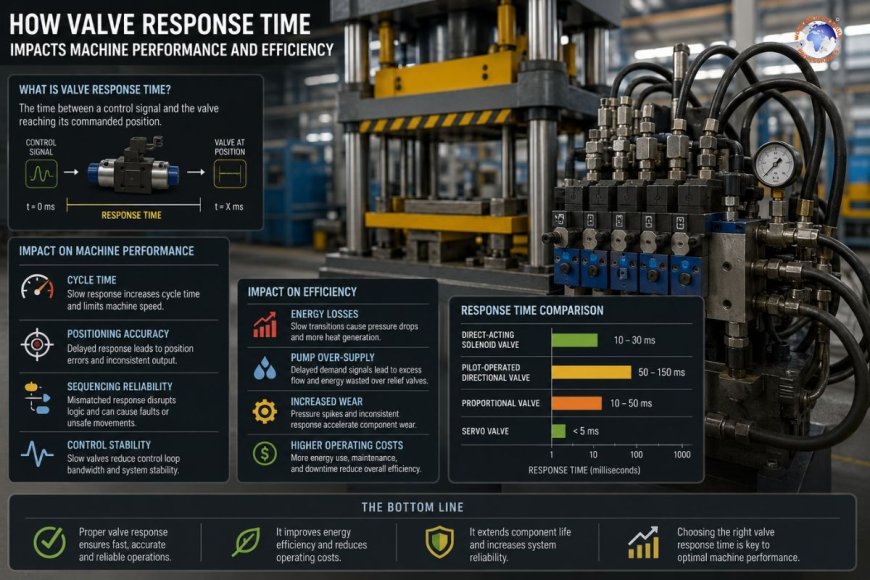

How does valve response time impact machine performance and efficiency?

What is the valve response time?

The valve's response time is the amount of time between the time an indication signal for control is given and the time the valve has reached its controlled position. This time period, usually measured in milliseconds, covers the signal processing delay as well as the actuation lag along with the travel times of the valve's element.

In the pneumatic and hydraulic systems, this nebulous aspect can have a huge impact. A directional controller operating the hydraulic piston, a proportional pressure valve that controls clamping force, and a solenoid valve synchronizing the pneumatic actuator all depend on a precise, prompt response in order to function as intended. If the response time is not in line with the expectations of the system, it will affect each component connected.

The connection between reaction time and system dynamics

Every machine has a dynamic profile—that is, a pattern of flow, pressures, and forces that fluctuate in time. The valve response time directly determines how closely the machine follows the planned control profile.

In high-speed applications like hydraulic presses or injection molding machines as well as high-speed stamping lines, the valve's speed is slow, and it fails to keep up with the cycle that is being controlled. This results in incomplete strokes, pressure overshoot, or irregular sequencing. When a valve requires an average of 80 milliseconds before it opens, and the system requires 30 milliseconds The machine is either slowed in order to allow for the valve or accepts force and position mistakes as a normal operating condition.

In closed-loop systems—where an electronic controller reads the sensor continuously and adjusts the valve—the response time is what defines the bandwidth that can be controlled. A valve with a slow response restricts how quickly the control loop is able to react to changes in the system, which can reduce accuracy and make the system more vulnerable to disruptions. This is especially true for servo-hydraulic systems: metal-forming flight simulation, fatigue tests, and precision machines all rely on the response time of valves, which are measured in milliseconds with a single number.

In sequential circuits, delayed valve response disrupts interlocking logic. When Valve A takes longer to sit in the same time as Valve B takes to open, the separation of pressure between the two circuits might be temporarily lost, which could cause damage to downstream components or lead to dangerous actuator movement.

Energy efficiency: Where response time has a direct cost

The connection between the valve response time and energy efficiency isn't as apparent but is nonetheless significant.

Transition losses happen during each valve change. When a valve is moved from one position to the next, it goes through openings that are intermediate, in which flow is regulated unpredictably. A slow-responding valve can prolong the transition period, which increases the energy that is lost by the heat that is absorbed into the fluid. When it comes to high-cycle applications such as the hydraulic press that is running every 10 minutes over two shifts in a single day, these losses from transitions add up to the equivalent of kilowatt hours.

Water hammer and pressure spikes are tightly tied to the responses for both ways. A valve that is closed too slowly permits controlled deceleration. The valve, which closes fast or responds inconsistently, can result in hydraulic shock. These transients of pressure force system engineers to over-specify the relief valves and accumulators and line strengths, thereby adding costs and parasitic losses to the circuit.

The systems that use variable demand—such as those with pressure-compensated or load-sensing pumps—rely on a quick valve response to communicate actual demand to the controller of the pump. If valve response slows down and the pump is receiving outdated demand signals, and then either under-supplies or over-supplies flow. Over-supply is when excess flow flows over a relief valve to create heat. "Under-supply" refers to when the actuator stops. Both outcomes are wasted energy.

In the modern electrohydraulic system, the use of speedy proportional valves or servo valves in conjunction with smart pumps has led to efficiency savings of 30-50% when compared with fixed-delivery systems relying on slow directional valves. A large portion of this savings is dependent on the valve being able to respond fast enough to allow the controller of the pump to react efficiently in response to the signals.

Mechanical wear and service life

The response time of a system affects not only effectiveness but also the life span of the whole system.

The slow response of the valve causes pressure cycling and hydraulic shock mentioned above. These transients cause cyclic stress on fittings, hoses, and seals on actuators. If a system experiences 10,000 pressure spikes a day—which is a typical number in industrial processes—it's likely to show increased wear on seals, fatigue of fittings, and ultimately the hose will fail far before an efficient system.

However, valves that react differently -- with varying the time of response from cycle to cycles -- can introduce a degree of uncertainty into the mechanical load placed on each downstream component. A predictable load cycle is more comfortable for parts than random cycle with the same load.

The valve's the response time can also be an indicator of wear. As solenoids get older the coils experience increased resistance; spoollands wear and cause internal leakage to increase springs are unable to hold preload. All of these degrade processes increase response time. Monitoring the valve's response time over the lifespan of a device is an efficient method for monitoring the condition of the machinethe valve that performed its job in 25 milliseconds, but now requires 60 milliseconds is a signal to the maintenance team that something is wrong.

Factors that govern valve response time

Understanding the factors that drive response time allows engineers to select the correct valve and develop circuits that will deliver the desired performance.

Technology for actuators is the principal element that determines. Direct-acting solenoid valves installed on smaller spools are able to achieve responses of 10-30 milliseconds. The directional valves operated by pilots, which depend on a pilot valve that is small to move a larger main spool, increase the time to respond of the pilot stage, plus the delay in hydraulic pressure that occurs when pressurizing the chamber for piloting, generally 50-150 milliseconds. Proportional valves that incorporate electronics and feedback on position can be found in the 10-50 millisecond range based on their dimensions and the design of the electronics. Servo valves have the fastest response, usually under 5 milliseconds, employing a torque motor and an amplifier stage designed for hydraulic high bandwidth.

Temperature and viscosity of fluid affect the speed at which hydraulic oil can fill and drain pilot chambers and control the spool's movement. Conditions of cold start in which viscosity is high and a predictable slow response of valves. System designers who work in a variety of conditions must consider the worst-case (cold) reaction time and not the nominal.

The pilot pressure of valves operated by a pilot controls the force needed to shift the spool's main. The pilot's pressure is low—whether through design or through a drop in the supply line to the pilot directs the slowing of response. A minimum pressure requirement for pilots is not a prudent recommendation; it's an objective requirement for response time.

Quality of electrical drive is important when it comes to solenoid-operated valves. A clear, quick voltage ramp towards the solenoid's coil results in more current than a slower ramp. Modern valve amplifiers use a current boost in the initial portion of the signal, often referred to as "dither" or "peak-and-hold," specifically to speed up the first solenoid stroke.

Spring force and mass of the spool determine the mechanical time constant for the valve. Larger valves, which have larger spools and stronger centring springs, operate slower in comparison to valves with smaller capacities. This is one reason why high-performance servo systems typically combine the speed of a small servo valve with a larger stage for flow control instead of trying to make use of a single valve to control speed and flow capacity.

Practical implications for system design

Response time of valves should be considered an aspect of design, not as a footnote in a catalog.

When designing valves, engineers must map out the requirements for cycle timing of each actuator and establish the most acceptable reaction time per stage. The analysis will often reveal the fact that no single valve has to function as a premium component, only those that are on the route of cycle time or in closed-loop control.

To reduce energy consumption It is important to achieve a balanced reaction speed that is a sufficient speed to meet an effective control plan, yet not too quick that the hydraulic shock is an issue that is not previously solved. Proportional valves that can be electronically adjusted ramp times provide a feasible middle ground. The valve is able to respond quickly to speed requirements and gently shift when deceleration sequences are in place.

For maintenance programs, establishing an initial response time for important valves during commissioning and checking it frequently is a cost-effective way to identify any issues prior to it causing an issue. Modern valve controllers can report response times as a standard diagnostic parameter. If it isn't, the simple monitoring of cycle times in the context of a machine may be used as a substitute.

Valve response times are in the middle of the performance of control and energy efficiency as well as mechanical reliability. A valve that reacts too slowly restricts the speed of the machine, reduces the precision of controls, and is inefficient during changes, and increases wear due to ineffective pressure management. A valve that is precisely matched to the needs of its circuit will provide smooth machine performance, reduced energy consumption, and more service intervals.

For engineers who are designing maintenance, commissioning, or the power of fluids, focusing on valve response as a first-class design diagnostic variable, rather than an afterthought, is among the most effective ways of optimizing overall machine performance as well as cost over the lifecycle.
