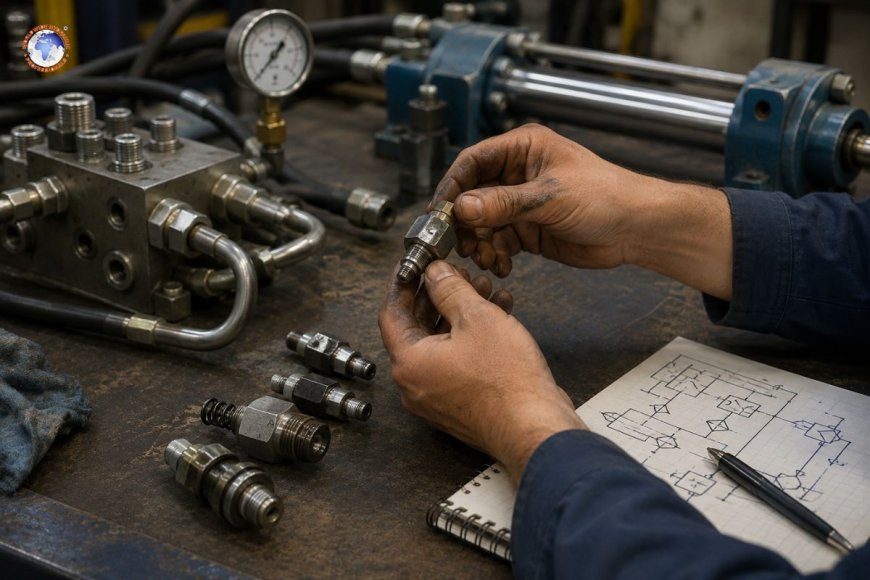

Check valves explained: types, cracking pressure, and placement in circuits

Check valves allow the flow of hydraulic fluid to be only in one direction and prevent reverse flow, which can cause the actuator to drift, damage to the pump, or even loss of system pressure. The most common kinds are the poppet and ball as well as pilot-operated check valves, each of which is suited to various rates of flow as well as sealing requirements and requirements for control. Cracking pressure—usually 0.5 or 5 psi with standard valves—is the measure of the pressure required to open the valve, and its proper placement within the circuit is essential for the protection of the pump and to prevent cavitation.

Check valves rank among the least complicated elements of a hydraulic system. However, they play a significant role in ensuring safety, efficacy, and reliability. A poorly chosen or located check valve could cause actuator creep, water-hammer-like spikes, or even premature failure of the pump. Knowing how these valves function—and the place they should be within a circuit—can help maintenance and engineering teams save money on downtime.

What does a check valve do?

In essence, the check valve is a gate that only opens one way. Fluid flowing in the planned direction is pushed past the spring-loaded component (a poppet, ball, or disc) in reverse, while the opposite flow puts the element on the seat, blocking the path. This simple mechanism serves a variety of essential roles in hydraulic circuits.

• Stopping backflows that could cause a motor or cylinder slide under loads
• Pumps are protected from pressure surges
• The maintenance of pressure in one of the circuits after the pump has been deloaded
• Separating sections of a system to ensure security or maintenance

Since check valves do not have external actuators, they react only to pressure differentials, which makes them quick-acting and mechanically easy when compared with control valves that are directional.

Check valves of various types.

Check valves of the ball type

Ball check valves utilize the spherical shape of a ball, which is placed against a machined orifice. The pressure from the line lifts it off its seat, allowing flow, and it is then reversible, or a spring force helps it reseat. Ball checks are cheap, small, compact, and intolerant of some contaminants, as the ball is able to roll to eliminate debris from its seat. They're commonly found in medium- to low-flow applications, such as the lubrication lines and tiny hydraulic power packs as well as pilot circuits.

The tradeoff is in the flow characteristics: balls tend to exhibit higher pressure drops when flow rates are high when compared to poppet designs, and they are susceptible to chatter (rapid opening and closing) when flow is pulsating.

Poppet-type check valves

Poppet check valves make use of a flat or conical-faced poppet that is seated against an orifice that is a match, which is usually guided by an elongated stem to keep it straight. This design provides a bigger flow area than a valve's size and a lower pressure drop, as well as quieter and more reliable operation in the conditions of variable flow. Poppet checks are a common option to protect main circuit lines, protect the outlet of a pump, and manage instances where flow rates vary dramatically.

Poppet valves tend to be more costly to make due to strict tolerances, yet they offer higher reliability when cracking pressure is applied and longer life of seals for continuous-duty use.

Check valves that are operated by a pilot

In contrast to simple check valves, pilot-operated check valves can be pushed open by a pilot signal, even when there is any forward flow. This makes them indispensable for applications that require load holding, such as keeping a cylinder in place under a load that is suspended and then allowing a controlled release when the user is directing retract.

Checks operated by pilots are available in two major types:

• Direct-acting: the pilot pressure directly acts on the poppet
• Two-stage (pilot-assisted): The small pilot poppet unseated first, then gradually releasing pressure until the main poppet is open. It minimizes the stress and the noise that comes with release of a high-pressure, trapped volume

Two-stage designs are the most popular for mobile equipment and in any situation where a sudden drop in load could be a risk, for instance, boom platforms, cylinders, or press applications.

Understanding cracking pressure

Cracking pressure refers to the minimal pressure differential needed to remove the valve's ball or poppet and start flow. It's determined by the spring rate within the valve. It is normally measured in bar or psi.

The typical range of cracking pressure:

• Low cracking pressure (0.5-3 psi) Used in tanks, lines, and return lines and other applications where a minimum of loss of pressure is crucial, like draining case circuits for hydraulic motors
• Pressure for medium cracking (3-15 psi) Applications for general use, check the outlet of the pump
• The high pressure of cracking (25-75+ psi) can be used to maintain backpressure in circuit branches, like maintaining the pressure of a pilot line for a downstream valve or to prevent gravity-induced flow in vertical pipe

The wrong choice of cracking pressure can cause serious problems. If the pressure is too low, the valve can be unable to properly seal against minor reverse pressure variations. If the pressure is too high, the valve will waste energy as heat as the pump is required to fight harder to overcome the force of the spring on each cycle. This is a significant element in overall system efficiency, particularly for continuously running power packs.

It's important to remember that the cracking pressure isn't the same as the full-flow pressure. A valve could break open at 3 PSI; however, it will require a much larger drop in pressure to reach the flow rate it is designed for, as the ball or poppet requires sufficient lift to open the flow route.

In hydraulic circuits, the placement is made

The location of a check valve within the circuit will determine the problem it resolves. The most common locations are the following:

Protection of the outlet for pumps

A check valve that is installed at the outlet of the pump prevents reverse flow of the pump once the system is shut down and when several pumps are feeding one manifold. In the absence of it, the pump that is not energized can serve as a path for the pressurized fluid to bleed backwards, causing internal damage and reverse rotation.

Circuits for holding load

To support cylinders with the overrunning or suspended load like cranes, presses, lifts, presses A pilot-operated check valve should be placed as close to the port of the cylinder as is possible. This helps reduce the volume of fluid that is trapped between the valve and the actuator, which minimizes the drop in load that takes place during the short period before the valve fully opens.

Accumulator circuits

Check valves separate the accumulators from the circuit once the pump is shut down, keeping the pressure for emergencies or to prevent backflows that could take the accumulator's energy out early.

Parallel pump systems

In systems that have multiple pumps feeding one manifold—which is common in high-flow industrial applications—check valves on the outlet of each pump stop flow from flowing backwards through an idle or low-pressure pump, which could waste energy and cause damage to the pump.

Circuits for motors and counterbalances

For hydraulic motors that use check valves, they are usually employed in conjunction with counterbalance valves to keep the motor from speeding up or free-wheeling if it is driven by a load that is running too fast, like a winch that lowers an object more quickly than the pump is able to provide oil.

Selection and sizing considerations

Beyond the pressure of cracking, there are other variables that affect the selection of the characteristics of a check valve.

• The capacity of flow: valves that are too small cause high pressure drop and excessive high temperatures; valves that are too large may react slowly to reverse flow
• Material compatibility for seals: NBR, FKM, or PTFE seats must match the type of fluid used and the operating temperature range
• Response time is crucial for circuits using fast-cycling actuators. In these circuits, a slow-reacting check valve could allow temporary backflow
• Mounting styles: in-line subplate or cartridge-mounted designs all work with different configurations and maintenance access requirements

The right details are taken care of in the design phase instead of attempting to fix the noise or drift following installation -- will save substantial time and costs throughout the lifespan of your system.

What's the main difference between a check valve and a pilot-operated check valve?

A conventional check valve is opened when the forward flow pressure surpasses the cracking pressure, and a pilot-operated valve may also be opened by an outside pilot's signals, which allows controlled reverse flow to be used to perform load lowering or unloading.

What happens when the pressure of a check valve's cracking is excessively high?

A high degree of cracking pressure causes a higher resistance to the point of causing a drop in pressure across the valve, which generates additional heat and lowers the overall efficiency of the system since the pump is forced to be more efficient to counter the force of the spring on each cycle.

Where is a check valve put in order to stop cylinder drift?

A check valve operated by a pilot should be installed closest to the port on the cylinder in order to limit the amount of fluid trapped and to reduce the load drop upon the valve's opening.

Check valves can fail and permit reverse flow?

Yes, damaged seals, worn seats, and springs that are weak or damaged, as well as obstructions that block the ball or poppet, could hinder full closure, which can lead to slow reverse leakage, even if the valve seems to be functioning.

Are ball check valves or poppet valves more appropriate for high-flow applications?

Poppet check valves are usually more suitable for high-flow applications because their bigger flow area results in less pressure drop and provides more reliable operation when compared to ball valves at the same flow rates.
