How to identify hydraulic oil degradation before equipment damage occurs

Deterioration of hydraulic oil is easily identified before it causes damage to equipment by observing four indicators: color and clarity changes, changes in odor (especially burning or sour odor) and viscosity deviation from OEM specifications, and lab-confirmed indicators such as acid number (AN) as well as water content or particle count. Combining the visual inspection with regular oil analysis can detect the signs of degradation for weeks or months prior to signs of valve cavitation, pump sticking, or seal failure showing up.

Hydraulic oil is rarely ineffective immediately. It is degraded gradually due to the process of oxidation, contamination, or thermal breakdown additive depletion. When equipment exhibits visible signs, signs of damage to pumps, seals, and valves will have already started. The ability to spot degradation early is among the maintenance strategies with the highest leverage in the field of fluid power, since oil replacement is a tiny fraction of the cost of a new pump or a replacement proportional valve.

This post explains warning indicators, the laboratory tests that prove their existence, and provides an effective monitoring procedure that you can implement regardless of the system's size.

Why is hydraulic oil degrading?

Hydraulic fluid is operating in conditions that continuously oppose it, such as high pressure; high-temperature mechanical shear on valve and pump clearances; and exposure to water, air, and particulate pollution. As time passes, this leads to:

• Oxidation Oil molecules oxidize with oxygen, creating acidic byproducts and sludge. particularly when heated above the temperature of 82°C (180°F).
• Depletion of additives—Anti-wear, anti-foam, and oxidation inhibitor additives are consumed and do not renew once the oil has been used.
• Breakdown of the thermal structure A prolonged period of high temperatures causes cracks in the molecular structure of base oil, decreasing viscosity as well as lubricity.
• Ingress of contamination, dirt, water, and wear metals speed up all of the above and trigger their own mechanisms for damage, which include cavitation and abrasive wear.

Since these processes compound with each other, a substance that appears "fine" on a quick glance may be deteriorating chemically.

Warning signs for sensory and visual warnings

Before the lab results come back, a variety of signs are visible on the floor without any specific equipment.

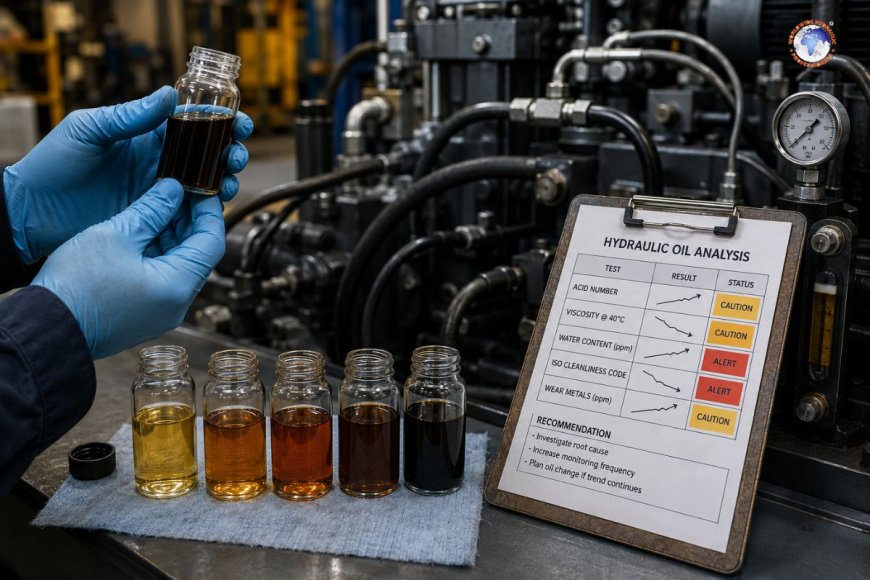

Clarity and color change

The fresh hydraulic oil is generally transparent and light amber. As it degrades:

• The darkening towards black or brown generally indicates thermal stress or a high metal content due to wear.
• A milky or cloudy appearance indicates water contamination—typically due to condensation, a failing heat exchanger, or a damaged seal.
• The presence of foamy or sticky fluid within the reservoir may indicate air entrainment or additive breakdown both of which can reduce the efficiency of lubrication and increase the risk of cavitation.

Simple practice: Keep an unlabeled sample of fresh oil near the reservoir's sight glass to ensure the operators can have a visual reference for comparing in routine inspections.

Odor

A sour, burnt, or pungent smell is among the most reliable indicators of thermal degrading or oxygenation. A healthy hydraulic oil will have the appearance of a neutral, mild petroleum smell. The odor of rancid or sharp indicates that the fluid is operating more hot than it should or that oxidation results are building up.

Sludge, varnish and deposits

Varnish, an amber-to-brown lacquer-like film that is formed on valve spools and components for servos, as well as the walls of cylinders, as byproducts of oxidation are able to precipitate from solution. Varnish is especially dangerous since it could cause valve sticking and unstable responses before being visible any other place within the system. Sludge, which is a larger and more noticeable deposit is often found in reservoirs and filter housings, and indicates the beginning of degradation.

Lab-confirmed degradation markers

A visual inspection can tell you that there is something wrong, but oil analysis can tell you precisely the severity and what it is. An average panel for hydraulic oil analysis typically comprises:

Acid Number (AN)

Acid number is the measure of the amount of acidic oxidation-related byproducts within the fluid. An increase in AN trend, even before it has crossed the limit of condemnation, is among the first indicators of oxidation in a quantitative manner. The majority of OEMs provide a maximum permissible rise above the baseline level for fresh oil, typically within an amount of 0.3-0.5 mg KOH/g. However, limits differ based on the type of fluid and the application.

Viscosity

Any shift in viscosity is a red flag

• Viscosity rise typically indicates the presence of oxidation, contamination by the heavier fluid or excessive evaporation from lighter components.
• Viscosity decline could signal thermal breakdown, dilution from an alternative liquid, or shear-induced index improvement.

A deviation of greater than a percent from the fluid's recommended viscosity of 40°C is usually considered to be a cause for investigation.

Content of water

Water is among the most harmful contaminants in the hydraulic system, encouraging the processes of oxidation, additive hydrolysis, and corrosion, as well as contributing to the cavitation damage of pumps. Karl Fischer titration gives a precise reading of the water content, usually by units of parts per million (ppm). Mineral-based hydraulic fluids are generally recommended to be kept to a level of 200-300 ppm, although stricter limits may apply to high-pressure systems or servo valves.

ISO Cleanliness codes (Particle count)

Particle count, which is reported as the ISO 4406 code (e.g., 18/16/13), measures the amount of contamination by dimensions and levels. An increase in the number of particles, particularly in the larger sizes, indicates either the ingress from external sources or internal wear that generates metallic particles. Examining trends in particle count versus standards for cleanliness of the most sensitive part (usually the proportional valve or servo valve) can help identify problems prior to they lead to valve hysteresis, or stick.

Elemental (Wear metal) analysis

Spectrographic analysis helps identify trace metals present in the fluid, including iron, copper, chromium, aluminum, tin, and many others that represent specific wear components. A spike in one metal may indicate an individual component that is failing; typically, copper is a sign of wear or damage to bearings, and iron is a sign of gear, cylinder, or vane wear.

Implementing a monitoring system that is practical

For the vast majority of mobile and industrial hydraulic systems, a multi-layered monitoring strategy balances the cost against the risk

1. Visual checks every day or shift—sight glass color and clarity, the level of the reservoir, and any unusual smell near the return line or in the tank.
2. A quarterly or monthly oil sampling Full panel of lab tests including AN viscosity, amount, particle count, and analysis of elements and results reported in a pattern rather than one data point.
3. Trend-based intervals that are based on calendar intervals: When possible, base oil change decisions on the current trends in degradation instead of fixed time intervals and adjust the sampling frequency to systems that are hotter and dirtier or have more intense duty cycles.
4. Follow-up to the root cause -- if the marker is out of range, you should investigate the causes (a malfunctioning cooler, a damaged seal, or a blocked filter) rather than just altering the oil or setting the clock.

Setting a baseline earlier—taking a sample of new oil prior to the time of commissioning—makes each future test more valuable as the degradation is compared to your own operating and fluid conditions instead of general OEM defaults.

How often should hydraulic oil be analyzed to be analyzed?

The majority of industrial systems benefit from quarterly sampling, but critical or high-duty-cycle systems may need periodic sampling. Mobile equipment that is operating in environments that are dusty or hot frequently requires more frequent testing.

Can hydraulic oil that is degraded be restored by filtration alone?

The process removes particles of contamination and reduces water content when the equipment is in place; however, it is not able to reverse chemical degradation like the oxidation process or depletion of additives. If AN and additive concentrations drop beyond acceptable levels, it is likely that the fluid will require replacement.

What's the first indication of the degrading of hydraulic oil?

The rising acid number and the early formation of varnish in valve parts are usually detected before visible changes in color or odor signs appear. This makes lab analysis more reliable than inspection by sight alone.

Does hydraulic oil degradation cause immediate equipment failure?

The degradation is not always immediate. It is gradual. The signs of sticking valves and erratic movement of actuators or noise from the pump typically appear in the course of months or weeks of unaddressed degradation of fluids and typically indicate that component wear has already taken place.

What temperature speeds up the degradation of hydraulic oil in the greatest way?

The rate of oxidation is roughly doubled with every 10degC increase over the range of operating temperatures for the fluid that makes sustained operation at the temperature of 82degC (180degF) the most significant trigger of the degradation of oil in many minerals-based hydraulic fluids.
