How long does hydraulic fluid last in storage?

Unopened hydraulic fluid usually lasts for 2 to 5 years when stored in a drum that is sealed at a constant temperature between 40 degF and 100 degF (4degC between 38 and 40degC) in a dry area far from direct sunlight. After a drum has been opened, its shelf life is reduced to between 6 and 12 months because of the exposure to humidity, air, and other contaminants. Mineral-based hydraulic oils typically last longer than biodegradable, synthetic, or fire-resistant oils, which are more reactive to chemicals and break down faster when stored.

Fluid doesn't have to be in use for it to become deteriorated. Oxidation, additive settling water absorption, and temperature fluctuations all depend on hydraulic oil that sits quietly in the warehouse. Knowing the length of time your stock will last prevents the costly error of pouring the degraded fluid into an unclean system and reversing months of correct maintenance with just one fill.

Why is it that hydraulic fluids degrade even when stored?

Hydraulic fluid can be described as a formulated product and not only base oil. It is a mixture of anti-wear additives, anti-oxidation and rust inhibitors in addition to anti-foam and anti-foam substances, as well as viscosity index enhancers. The additives are chemically active as soon as they are blended, and various storage conditions can accelerate the breakdown of these additives.

Oxidation

In a drum that has been sealed, there is an air headspace that can be found over the fluid. Over time oxygen slowly reacts with an oil that is the basis, creating acidic compounds and precursors to sludge. The heat speeds up this reaction dramatically—each 18°F (10°C) increase in temperature at storage can approximately triple the rate at which oxidation occurs.

Moisture ingress

Drums that are stored outside or in humid conditions are susceptible to water infiltration through bungs, seals, as well as breathing during temperatures cycles (as the air in this drum contracts and expands, it may draw in humid air). The presence of water can cause rust, is a catalyst for hydrolysis of certain additives, and promotes the growth of microbes in certain kinds of fluids.

Separation and settling with additives

Some additives, particularly in formulations that are older or less effective, may fall out of suspension during prolonged storage. This happens more frequently for fluids containing the zinc-based additives to prevent wear (ZDDP) and may cause inconsistent performance, even though the product appears like a normal liquid.

Temperature-related cycling

Repeated freeze-thaw cycles or heat-cool cycles can strain the molecular structure of the fluid and may cause precipitation additive. Drums that are stored near loading docks, warehouses that are not heated, or in direct sunlight are the most vulnerable.

Shelf life of a typical type of fluid

These numbers assume that the storage is in good conditions. Insufficient storage, such as sun, heat, and humidity, or an open bung could cut these timeframes in one-third or greater.

Signs that the hydraulic fluid stored has been degraded

Don't base your decision on the purchase date by itself. Check the stored fluid prior to use and especially any that is held for longer than one year.

• Color changes The color of fresh mineral oil typically has a pale gold-like hue to amber. A darkening towards brown or black could indicate the possibility of oxidation.
• Haze or cloudiness—It indicates that there is a water problem or a dropout of additives.
• Unusual smell A strong burning, rancid, or burned smell suggests an oxidative breakdown.
• Sludge or sediment on the floor of drums signals additive separation or degradation over time.
• Separation or layering of visible bands in the liquid indicates that the formulation is no more homogeneous.
• Metallic sheen or rusty particles could be a sign that the drum is corrosion-related internally and infecting the fluid.

If any of them are in the system, the fluid must be tested by a lab prior to use or discarded to avoid contamination of the system.

The best ways to store hydraulic fluid

To get the maximum shelf life out of your fluid boils to regulating five factors that affect temperature, humidity, and contamination, as well as orientation and rotation.

Control of temperature

Keep drums inside a controlled climate zone between 40°F and 100°F (4°C and 38°C) when feasible. Avoid direct sunlight, as it can accelerate UV-driven oxidation through steel drums by causing ambient heat and keep the fluid far from heat sources such as compressors, boilers or windows facing south when it is warmer.

Drum orientation

Keep drums upright (horizontally) and on shelves if they have bungs on the 3 o'clock or 9 o'clock locations so that the bungs are covered by the fluid, rather than being exposed to the air of headspace. If drums have to stand upright, you can tilt them to the side or use drum covers to avoid water pooling up on top that can get into the threads of bungs.

Moisture protection

Keep drums away from concrete floors or floors that are damp as moisture moves upwards through concrete, and it can cause corrosion to the drum's bottom with time. Utilize drum cradles or pallets. Storage in the indoor space is highly recommended over outdoor, including under the shade of a canopy.

Contamination control

Make sure bungs are sealed tightly until they are used. When a drum is opened, make use of a dedicated pump, clean or transfer system, and seal it immediately following the dispensing. Don't expose a drum to the air for a long time.

Rotation of FIFO

Implement a first-in, first-out method for stock that is fluid. Label each drum with the date of receipt and record the inventory so that older stock can be utilized before the newer inventory. This is crucial for large-scale operations that use numerous drums each year.

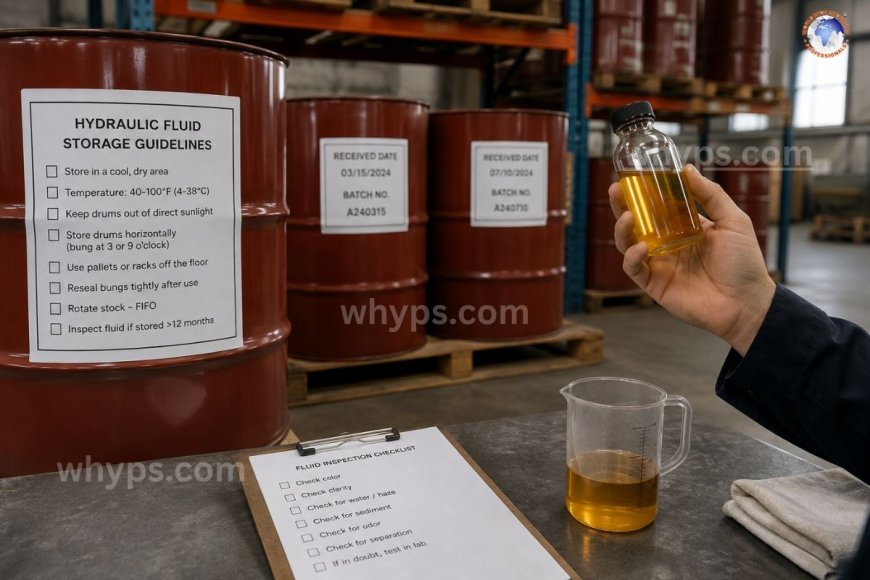

Quick storage checklist

• Keep it in a cool, dry place. 40-100°F (4-38°C)
• Keep the drums away from direct sunlight
• Bunged drums can be stored in a horizontal manner with bungs starting at 3:09 hours.
• Use pallets or racks—don't use concrete that is bare.
• Re-seal bungs as soon as possible after the use
• Label drums with the date of receipt, and apply the FIFO rotation
• Check fluid visually prior to use if stored for more than 12 months
• Test the fluid in a lab prior to use if degradation signs are evident

If you are unsure, do a test prior to deciding?

For equipment that is critical, it is worth the cost. The test of the fluid's analysis is not much in comparison to the costs of contaminating the mechanical system and triggering premature wear. The most basic tests to test before using a long-storage fluid are viscosity (to verify that it is within the specifications) and the amount of water (via Karl Fischer titration) as well as acid number (to determine the degree of oxidation). Numerous suppliers of industrial labs provide quick-turnaround tests to test for this exact situation.

Does the hydraulic fluid expire when it's closed?

Yes, but it will happen slowly. Even sealed hydraulic fluid that is not opened is degraded over time because of the oxidation of air in the headspace and slow breakdown of additives, generally lasting between 2 and 5 years based on the what type of fluid as well as storage requirements.

Do I have to make use of hydraulic fluid once its shelf life has expired?

Sometimes it's possible to do so, but just after inspection or laboratory testing. If the fluid does not show discoloration, cloudiness, smell or sediment and tests confirm that the both acid and viscosity are in line with the specifications and the specifications, it could be usable. However, the performance cannot be assured without confirmation.

Do synthetic fluids last as long as mineral oil storage?

The opposite is usually true. Biodegradable and synthetic fluids are more reactive chemically and have shorter shelf-life storage than traditional mineral-based hydraulic oils.

What's the optimal temperature for storing hydraulic fluid?

Between 40degF to 100degF (4degC between 38degC and 40degF) in an indoor stable and climate-controlled space. Beware of temperature fluctuations as well as direct sunlight as well as proximity to sources of heat.

How do I know the quality of stored hydraulic fluid has been contaminated without laboratory testing?

Examine for darkened color or cloudiness or layering or an unusual smell. Any of these visible or olfactory indicators indicate that the fluid warrants lab testing or is discarded instead of using it in its current state.
