Can hydraulic fitting failures be predicted before a leak happens?

Yes, fitting failures in hydraulics can be identified before leaks occur by observing early warning signs such as wear and tear, visible marks corrosion and loosening of the torque on the sealing face, as well as micro-cracking triggered by vibration. In conjunction with regular torque checks and pressure trend monitoring and regular visual inspections the majority of fitting failures provide an alert period of two to six weeks prior to when they develop into a apparent leak or a massive blowout.

Fittings are rarely faulty without warning. Contrary to a hose rupture which may occur abruptly during pressure surges an issue with a fitting typically a slow-motion issue such as a thread becoming loose or seal that is fatigued, or a corroding surface which is deteriorating over a period of weeks or days. The issue is that the signs are tiny, difficult to spot in a walk-through routine, and are often concealed in insulation or guards. This article explains the causes of the failure of fitting, the physical and data-driven signals that precede it and the steps to develop an automated inspection process around the signs.

Fittings that fail because of the cause

In order to predict failure, it's important to understand the causes. Hydraulic fittings break down for only a few common causes:

• Incorrectly or excessively torqued during installation could allow micro-leakage starting on day one or stress threads and seals
• Vibration fatigue is a particular problem in mobile equipment as well as reciprocating machinery, gradually pulling off threaded connections.
• The process of thermal cycling causes repeated expansion and contraction that causes the seals of metal-to-elastomer and metal-to-metal to loosen
• Corrosion is a major issue, especially at dissimilar-metal junctions or in coastal washdown or chemical-exposure environments.
• The wrong fitting choice, like using threads that are not compatible with each other (BSPP, NPT, JIC, ORFS) or mismatching pressure ratings.
• Seals that have been damaged or reused including O-rings that are on ORFS as well as face seal fittings which were damaged during the process of installation.

Each one of them creates a distinct, trackable fingerprint prior to failure, which is the reason why prediction is possible.

The warning signs early on that indicate leaks

Physical and visual indicators

It is a good idea to mark the torque reference lines across the body of the fitting and the hex nut by using an ink pen prior to the time of installation. If the line does not align in a later inspection, then the fitting has been physically rotated, the most likely cause of leakage.

Data from flow and pressure sensors

Fittings that are about to fail are often reflected in system data long before they appear visually:

• A gradual drop in pressure at a constant point throughout the cycle, indicating the possibility of a slow leak from outside.
• A higher frequency of pump cycles in order to compensate for the loss of fluid
• Temperatures rise locally, as the leakage of fluid from an outlet causes friction and turbulence
• The reservoir level is trending downward quicker than the baseline maintenance

Each of these signals is not remarkable by itself. However, if they are monitored over weeks, they will form a clear trend line that indicates the existence of a particular system or joint.

A predictive inspection program

Step 1: Establish a baseline.

Note down the torque of every fitting before commissioning or after any maintenance work. This is the baseline that later inspections will be compared to; without this, "abnormal" is just an assumption.

Step 2: Determine an inspection time frame based on taking a risk.

Each fitting may not require the same amount of attention. Sort by criticality and exposure.

• High-risk (mobile equipment close to engines and high-cycle presses) Weekly visual inspection
• Medium risk (stationary industrial systems that have moderate vibration) Checks every month
• Low-risk (low-pressure, stationary, and isolated from vibration) Check every quarter

Step 3: Apply sensors-based monitoring, where it pays off.

For fittings that are difficult to access or require a lot of effort such as low-cost pressure transducers, leak detection tapes that are IoT-enabled can detect an underlying pressure or moisture issue much earlier than a technician could detect it during the walkthrough. This is becoming more commonplace for mobile hydraulic fleets, which is why the downtime costs are worth the cost of a sensor.

Step 4: Keep a log and track trends; don't simply look around.

One inspection will reveal the state of the machine. An archived history of torque mark positions along with corrosion notes and thermometer readings will tell you the amount of change that can be used to predict the timing of failure.

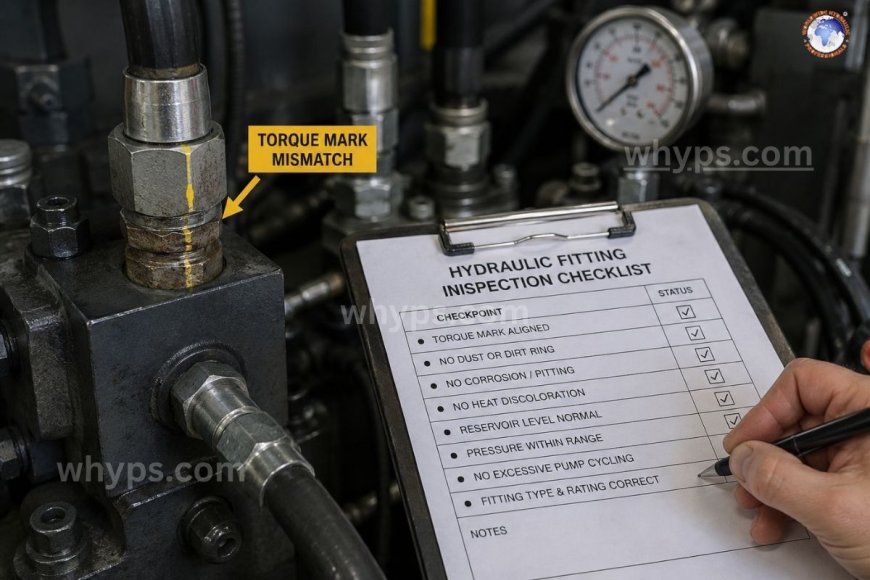

Quick predictive inspection checklist

• [ ] Torque marks aligned, no rotation since last check
• [ ] There isn't any dust or dirt film on the joint
• No apparent pitting or corrosion on the sealing surface
• There is no discoloration or any heat staining in the vicinity
• Reservoir level is consistent with the trend of the baseline
• Pressure readings within normal cycle
• No unusual frequency of pump cycling
• The type of fitting and pressure rating are still appropriate for use

When should a fitting be changed preemptively?

Even if there isn't a confirmed leak, certain circumstances warrant proactive replacement instead of continuous surveillance:

• Any fitting that shows obvious thread damage resulting from previous cross-threading events
• Fittings for high-cycle and high-vibration equipment that is more than one full service period beyond their O-ring replacement
• All corrosion that has advanced past pitting on the surface will eventually become the sealing surface
• Fittings that were torqued over once and then retorqued for "fixes"

Removing a fitting in scheduled downtime is only a small fraction of what an unplanned leak will cost in the loss of fluid, cleaning up contamination, and production interruptions.

Hydraulic fitting failure is among the most reliable failures in a power system. It's far more likely than a burst of hose or internal valve failure. The indicators are both physical (torque mark corrosion, drift, surface film) and data-driven (pressure patterns, reservoir levels and frequency of cycling) and are easy to monitor through a consistent routine of inspection. The businesses that are able to avoid leaks that aren't planned aren't those who have the best fittings, they're the ones that have better monitoring of the minor changes that occur before the leak.

1. What is the first indicator that a hydraulic fitting is in danger of failing?

The first indication is usually an incorrectly aligned torque mark, or a dust ring around the joint, both of which indicate that the fitting is beginning to loosen or swell under pressure prior to any visible leaks in the fluid appear.

2. How often should fittings for hydraulics be inspected in order to spot problems in the earliest stages?

High-criticality and high-vibration fittings must be checked weekly, moderate risk stationary systems on a monthly basis and isolated systems with low risk quarterly, with the torque markings checked on every inspection.

3. Are sensors able to detect leaks in fittings prior to them being obvious?

Yes, pressure transducers and moisture-sensitive leak tape are able to detect changes in pressure trend or early signs of fluid presence for days or weeks before the leak becomes sufficient to be detected in a walkthrough manual.

4. Is a tiniest bit loose in a fitting on the hydraulic system usually a sign of imminent failure?

Sometimes, however, a fitting that is found loose following proper torque at the time of installation should be considered as a signal to be taken note of and then retorqued according to the specifications and then monitored more closely than being interpreted as an isolated occasion.

5. Should a fitting with corroded connections be changed even when it's not leaky yet?

If the corrosion has gotten to the sealing face, not only the exterior surface it is recommended that the fitting be replaced immediately, as the integrity of the seal is already affected even if there is no apparent leak.
