Why are hydraulic lifting systems used in railway maintenance?

Hydraulic lifting systems are utilized in railway maintenance since they supply the incredibly powerful, precisely controlled lifting force required to raise rail cars and track sections in a safe manner and securely—typically lifting up to 100 tons and allowing for synchronized, gradual motion that safeguards both the equipment as well as the personnel who are performing maintenance or inspections, wheel shifts, and track realignment.

Railways are home to one of the largest moving equipment available in the world of industry. Maintaining that equipment operating safely relies on maintaining equipment that can handle massive weights without sacrificing control. Hydraulic systems are now the most common solution for almost every heavy-lifting task within workshops, rail yards, and tracksides. This article explains the reason why hydraulics dominate this area and where they are used and what maintenance personnel should be aware of to keep these systems running smoothly.

The key benefit: the force's density as well as control

Railroad components are huge. A single locomotive could weigh more than 100 tonnes, and a fully loaded freight car can be just as heavy. The weight of lifting at this level eliminates most mechanical options. Mechanical lifts and screw jacks are able to lift heavy loads, but they are impractical in the scale of things—heavy, slow, and difficult to coordinate across several lift points.

Hydraulic systems address this issue by force density. A hydraulic cylinder could create extremely strong force from a tiny, compact unit because the hydraulic fluid is incompressible and the pressure can be translated into force over the piston's surface. Rail maintenance facilities can put in lifting equipment that is able to fit into pits for workshops or underneath rail cars without the need for an extra-large mechanical structure in order for the same capacity of lifting.

Equally important to raw force is the control. Hydraulic systems let operators lift, hold, and lower loads at adjustable speeds. This is particularly important for railway work, as the car body or a locomotive typically requires just several inches—enough to allow access to wheelsets, bogies, or other undercarriage parts without an abrupt movement that could cause a shift in the load or harm nearby structures.

Where is hydraulic lifting utilized for rail-related maintenance?

Changes to bogie and wheel

One of the main applications of hydraulic lifting for railway maintenance is for bogie and wheelset (truck) substitute. Rail vehicles require periodic wheel replacements because of flat spots, wear, or damage. Hydraulic jacks or synchronized lift systems can raise the car's body free of the bogie, allowing maintenance personnel to take the bogie that is worn out and replace it. Since rail vehicles are on several axles, this procedure usually requires a number of hydraulic lift points that work in a careful manner.

Multi-point synchronized lifting

A single locomotive or vehicle may have to be lifted by four, six, or even more to ensure the vehicle remains in a straight line. Inconsistent lifting can bend the underframe or cause damage to suspension components. The latest hydraulic lift systems tackle this issue by synchronizing hydraulic circuits. In these, multiple lifting columns or jacks are electronically linked so that each one rises and falls with a similar speed and elevation and keeps the vehicle at the same level throughout the lifting. This is among the most obvious reasons why hydraulics perform better than the manual or mechanical lifting in rail applications: the ability to match multiple independent mechanical jacks manually is difficult and is prone to errors.

Lifts for vehicles in the workshop and at the depot

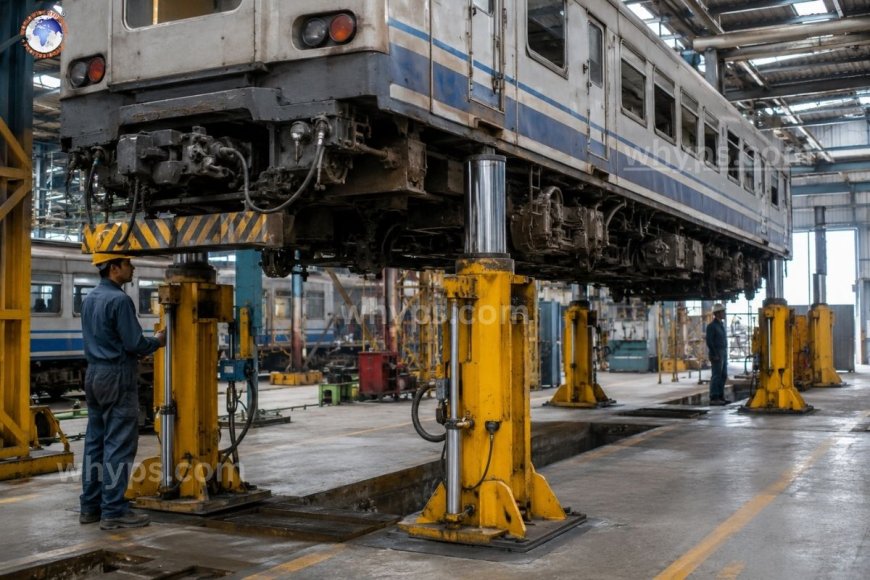

Rail depots usually utilize the fixed hydraulic lifting system, which includes underfloor lifts as well as mobile column lifts to raise whole locomotives or rail cars for inspection of the undercarriage as well as brake system work and general maintenance. The mobile lifting column is appreciated because they can be repositioned to accommodate vehicles with various dimensions and configurations of axles, providing depots for maintenance flexibility without having a fixed-lift facility that is specifically designed for each type of vehicle.

Rerailing after derailment

If a rail vehicle is unable to keep its balance and is unable to return to the track as quickly and safely, it is of paramount importance. Hydraulic rerailing equipment, such as hydraulic frames and jacks, is used to lift derailment-prone locomotives or cars and then help them return to the rails. The work is usually done outdoors, in the presence of pressure. This is another reason why hydraulic tools are preferred: because they're mobile, do not require external power in a variety of models, and provide the force necessary to propel a vehicle that has been derailed using small and portable tools.

Maintenance of infrastructure and track

Hydraulic lifting isn't restricted to automobiles. Track maintenance equipment such as tampers, ballast regulators, railway lifting, and liner machines makes use of hydraulic systems to raise and align tracks in realignment and renewal work. Rail lifters hydraulically raise rail sections to allow ballast to be adjusted under, thereby correcting settlement while maintaining the appropriate track geometries.

Why do hydraulics outperform other options?

As compared to pneumatic systems or just mechanical machines, hydraulics provide numerous advantages in railway maintenance, including:

• More force on the smaller space, which is crucial in the crowded workshop pits and under rail vehicles with low clearance.
• A smooth, easy-to-control motion with fine adjustments, which reduces the chance of load shifting in delicate tasks such as bogie removal
• Stability of load-holding hydraulic systems can hold a massive load at a certain height for long periods of time without drifting. This is crucial for maintenance that takes a long time
• The ability to adapt across a range of equipment, from small jacks to massive fixed lifting equipment
• A proven track record of reliability in tough and dirty outdoor areas where rail maintenance typically occurs.

The pneumatic systems, on the other hand, are unable to match the hydraulic force output in a comparable dimension, and mechanical systems aren't equipped with the fine and precise control that lifting rail vehicles need.

Maintenance issues regarding hydraulic lift systems

Since these systems are able to withstand huge demands, their upkeep is vital. Rail depots usually design maintenance schedules with a handful of key inspections:

• Monitoring of the condition of fluids—degraded or contaminated hydraulic fluid could affect the precision of lifting and prolong component lifespan, which is why periodic analyses and filtering of fluids are a common procedure
• Seal inspection—Seals on cylinders that are exposed to prolonged loads are prone to wear, and a failed seal could lead to the load drifting slowly, which is a major safety risk in the event of a suspended locomotive.
• Synchronization calibration—multi-point lift systems require periodic confirmation that all points of lift remain aligned, as even tiny differences between points could create unsafe disalignment
• Testing and certification for load: Like other heavy lifting equipment, the hydraulic lifting system for rails is subject to periodic load testing and inspections to verify that they are operating within their capacities.

With regard to the weight they carry and the risk of safety these systems can handle, the majority of railroad operators adhere to strict inspection times that are far above the general norms of industry.

Hydraulic lifting systems have been essential in the maintenance of railways because they combine the brute force required to lift large vehicles with the precise control needed for safe handling. From routine wheel adjustments and depot maintenance to track realignment and emergency rerailing, hydraulics offer a blend of strength, precision, and flexibility that mechanical or pneumatic alternatives can't compete with at this level. As rail infrastructures continue to grow and equipment becomes heavier and more complex, lift technology for hydraulics is likely to stay vital to ensure maintenance operations remain secure and efficient.

1. What is the maximum weight a hydraulic lifting system supports in the field of railway maintenance?

The hydraulic systems that are rated for rail typically manage loads ranging from just a few tons for portable jacks up to 100 tons for locomotives and multi-car lifting systems, based on the design of the equipment and its configuration.

2. What makes synchronized lifting essential in rail cars?

Rail vehicles are lifted from multiple points simultaneously. If these points move up or down unpredictably, the vehicle's underframe may become bent, or its suspension may be damaged. Hydraulic lifting that is synchronized keeps each point at the same level throughout the lift.

3. Are hydraulic jacks able to be used to perform the purpose of emergency railing?

Yes. Rerailing and portable hydraulic jacks, as well as rerailing frames, are common equipment used for lifting and guiding rail vehicles that have been derailing back onto the track. They are admired for their strength and their portability.

4. What can cause a rail lift's holding capacity to decrease with time?

Damaged or worn-out cylinder seals are the main source of load drift together with contamination of hydraulic fluid, which affects the performance of the valve and pump.

5. How often do hydraulic lifting equipment in a rail depot be examined?

The majority of rail operators adhere to regular inspections and load testing intervals established by safety and regulatory standards. Typically, they are more frequent than industrial lifting equipment because of the large load and the safety stakes that are involved.
