What industries commonly use pull cylinders?

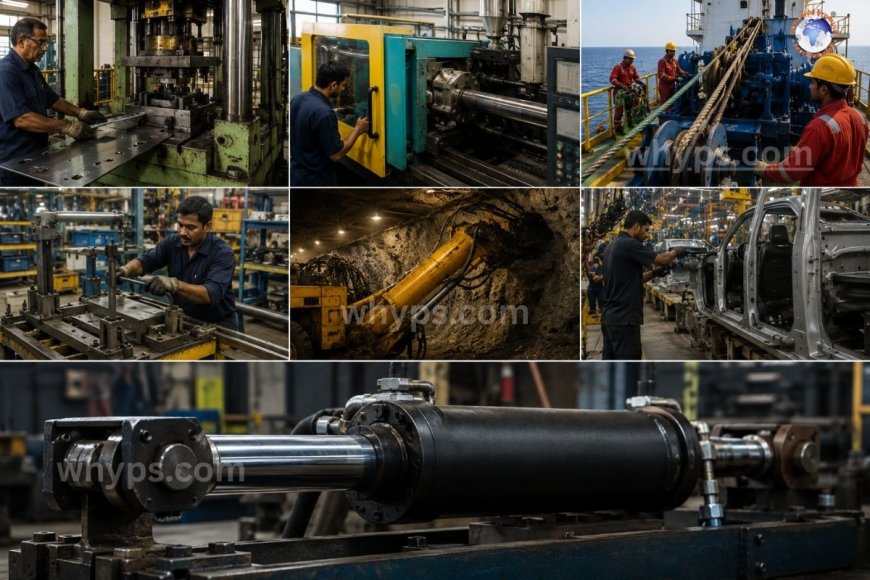

Pull cylinders, hydraulic cylinders made to exert force through the retract stroke instead of the extend stroke, are used extensively in press and metal stamping applications as well as die-casting and plastics, clamping and material handling systems as well as offshore and marine rigging, mining equipment and heavy equipment, and automotive assembly lines where a clamping or pulling force is more significant than a pushing force.

The majority of people think of hydraulic cylinders pushing things: the extension of a boom, lifting the platform, or pressing an object to close. Pull cylinders alter that idea. The rods are designed so that the force is generated when the piston retracts, which makes them the perfect choice when an application needs to pull two parts together, hold something in tension, or pull something instead of pushing it. The difference in the direction of force determines the industries that choose pull cylinders and the reasons for that.

What is it that makes a pull cylinder distinct?

In a typical hydraulic cylinder, that cap-end (blind) part of the piston usually has more surface area than the rod end, and therefore the extension exerts more force than retracting. A pull cylinder alters this pattern via a bigger rod-end effective area, the use of telescoping or a plunger-type design, or a specific tension-rated design—meaning that it is a power stroke that retracts.

This is because a lot of industrial tasks revolve around pulling the die apart, clamping it shut, pulling an entire mold, and holding the workpiece in tension while it is being machined or retracting a machine against resistance. Utilizing a conventional push-oriented cylindrical cylinder to accomplish these tasks is a waste of capacity and could leave the process unpowered on its crucial stroke.

Press operations and metal stamping

Stamping presses are among the most frequently used locations to pull cylinders. Blank holders, die-cushion systems, and knockout mechanisms typically require controlled pulling force to keep sheet metal in place during the stamping process or to take a finished piece from the punch following. Pull cylinders offer the steady tension necessary to prevent wrinkles or tearing in the material as it is formed, especially in deep-draw stamping in which the blank holder is required to withstand the pull of the punch for every stroke.

Die casting, plastics, and mold operations

Die-casting and injection molding machines are heavily dependent on the actuation of the type pull to pull the core and open the mold functions. Side-action cores, which create internal or undercuts in the molded component, are typically retracted with pull cylinders precisely timed to the opening cycle of the mold. Since core-pulling forces can be massive—particularly for huge or intricate molds—manufacturers recommend pull cylinders designed to handle the load of tension involved instead of modifying an existing push cylinder to the task.

System for handling materials and clamping

Anywhere that a system requires to hold and grip instead of press or pull cylinders are likely to be seen. Over-center clamping, toggle clamps, fixtures, and workholding devices on CNC machines, as well as welding fixtures, typically use pull cylinders to force jaws and clamp arms to an unlocked position and hold them in place under the pressure. This is especially useful for fixtures where the force of clamping is required to remain constant during a welding or machining process that might otherwise move the workpiece.

Applications for offshore and marine

Marine environments produce one of the more challenging pull-cylinder tasks in the industry. The winch system, the mooring apparatus, and cable-tensioning systems on vessels and offshore platforms employ pull cylinders to control tension of lines under constantly changing forces from waves and current. Towing equipment and anchor-handling equipment use hydraulics that are tension-rated instead of push cylinders since the main purpose of the device is to pull an object through water or keep the vessel from drifting.

Heavy and mining equipment

Mining operations utilize pull cylinders within devices like roof-support systems, in which cylinders have to retract using controlled force to shift supports when the shearer moves along the longwall. The conveyor and cable tensioning systems in mines rely on pull cylinders in order to keep a constant tension throughout long belt lengths and to compensate for shifts in load without introducing excessive slack or strain. The high-vibration, abrasive conditions that are typical in mining mean these cylinders are usually designed with reinforced seals and rods that are heavier as compared to a similar industrial machine.

Manufacturing of automobiles

Stamping and assembly lines for automotive employees pull cylinders during body-in-white production. The tools that keep panels in tension while welding, as well as cylinders that retract the dies in between stamping cycles and fixtures that push components to align before the robotic welding process, all depend on dependable, consistent pull force. With the high cycle speeds of modern automobile lines, they are selected to have a high tension capability and quick, reliable retraction times.

Aerospace, precision tools, and tooling

Smaller in size but much more high in precision, aerospace tooling utilizes pull cylinders as jigs and fixtures where metal or composite components need to be held in precisely controlled tension when laid up or bonded or machined. Since aerospace tolerances provide very little room for clamping drift and slop, pull cylinders used in this field are typically used in conjunction with pressure monitoring systems to make sure tension is within the specifications throughout a cycle.

Picking the right pull cylinder for your specific application

Picking the correct pull cylinder is about fitting the cylinder's rating of tension length, stroke length, and the mounting configuration to the force that the application produces—not just the nominal bore dimension. Because pull cylinders are frequently employed in high-frequency, cyclical manufacturing processes such as stamping and molding seal materials, the rod's finish is also important. A cylinder that is not properly sized for cyclic tension loads will exhibit premature wear on the seal long before it exhibits any sign of mechanical failure. For sizing calculations, it's worth working from actual measured or estimated pulling loads rather than assuming a push-cylinder-equivalent rating will translate directly to retraction performance.

What's the main difference between a pull cylinder and a normal hydraulic cylinder?

A typical cylinder is engineered to maximize force when it comes to extension, because the area of the cap-end piston is typically larger. The pull cylinders are constructed in a way that their maximum force is generated upon retraction, which makes them ideal for applications where clamping or drawing force is more important than pushing force.

Why do stamping presses require pull cylinders instead of push cylinders?

Stamping operations such as die cushioning and holding of blanks require constant tension to ensure that sheet metal remains straight and in control as it's created. A pull cylinder provides the same tension throughout the retract stroke, something a cylinder that is oriented to push doesn't have the capacity to deliver efficiently.

Pull cylinders are used to mold injections?

Yes. Core-pulling mechanisms that retract side-action parts to allow undercuts to be released from molds typically employ pull cylinders because the stroke of retraction is where the power is needed.

Do pull cylinders require special seals in comparison to push cylinders?

Not all seals are created equal. However, pull cylinders for high-cycle processes such as molding or stamping often require the use of rod finishes and seals that are rated to the particular load they'll encounter in cyclic tension, as seals that are too small may wear out more quickly under many pull cycles. This is more than mechanical components in the cylinder.

Can a standard hydraulic cylinder be utilized as a pull cylinder?

It's possible to create the force of retraction, but it will not typically meet a specially designed pull cylinder's strength of tension, as conventional cylinders are typically constructed to maximize the force of extension rather than the force of retraction. In situations that require pulling as the main purpose, a cylinder designed to handle that particular load is the best option.
