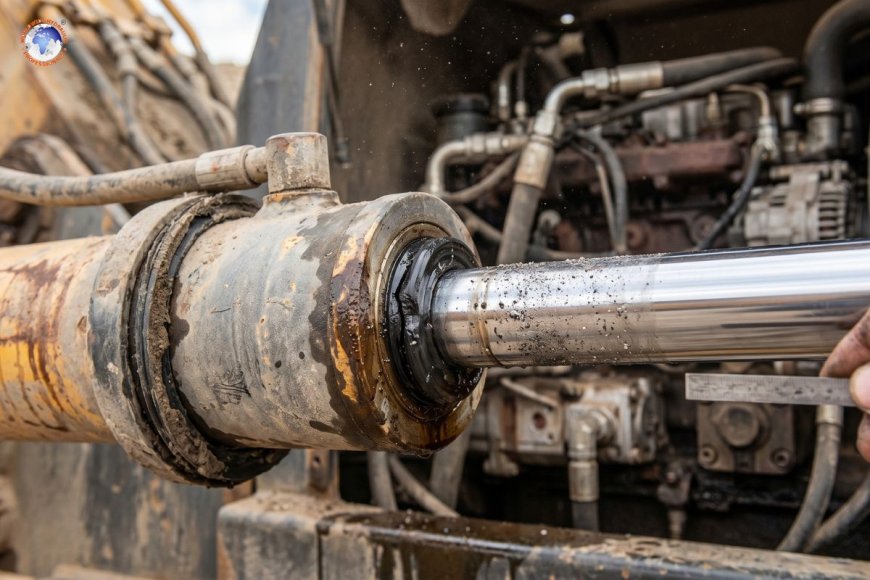

Why hydraulic cylinder seals fail: top causes and how to prevent them?

Hydraulic cylinders are at the heart of many mobile and industrial machines, from forklifts and excavators to injection molding presses as well as agricultural equipment. In the midst of their reliability is the set of components that are rarely noticed until something is wrong with the seals. When the hydraulic cylinder seals fail, the consequences can range from minor leakage of fluid to system breakdown that is complete, which can result in costly downtime as well as dangerous operating conditions.

Understanding the reasons seals fail and ways to prevent the issue from occurring are among the most practical actions maintenance engineers or machine operators could take in order to increase the life of equipment and prevent unplanned repairs.

What does a hydraulic cylinder seal actually accomplish?

Before tackling failure scenarios, it is helpful to know the seals that are at fault. Hydraulic cylinder seals can be described as precision components that block the piston from being bypassed or flowing beyond the rod. They keep the pressure differential that creates force, prevent contamination from entering, and regulate the thin layer of fluid that coats the rod during its extension and retraction.

Each seal on the cylinder—such as that of the rod seal, wiper seal, and buffer seal—performs a particular purpose. Together, they permit the cylinder to produce hundreds of pounds using precise control of its position. If one is damaged, the system suffers.

Top causes of hydraulic seal failure

1. Contamination

Contamination is the most frequently cited cause for failure of seals across every hydraulic system. Metal dirt, wear particles, silica, and rust circulate through the hydraulic fluid and act as rough grit that rubs against the seals of elastomer. As time passes, this rubbing causes damage to the seal's surface and causes micro-channels in which fluid can flow through.

The corrosive odor also damages the rod of the cylinder. Rusts and pitting on the rod's surface erode the seal's ability to keep contact in a uniform manner, resulting in leakage, even if the seal is in good condition.

The wiper seal on the rod's end is the initial line of defense against external contaminants. If it becomes degraded or damaged, even just a bit, dust, moisture, and particles enter the cylinder bore, triggering an ensuing chain reaction involving wear.

Preventive: Maintain strict goals for fluid cleanliness that are in line in accordance with ISO 4406 cleanliness codes. Replace filters according to schedule instead of watching for indicator bypasses. Examine the rod wipers on a regular basis and replace them as soon as you see the first indication that there is cracking or deformation or hardening.

2. The wrong seal material is selected

Different seals are not identical. Hydraulic seals for cylinders are constructed using a variety of thermoplastics and elastomers, including nitrile (NBR) as well as polyurethane (PU), Viton (FKM), PTFE, and EPDM among them. Each has distinct resistance profiles depending on temperatures, fluid types, and pressure.

The wrong material for sealing to operate in is a common reason for premature failure. For instance Nitrile seals work well in normal mineral oils at moderate temperatures, however they break down quickly in phosphate esters or at temperatures that are constant over 100 degC. Seals made of polyurethane have superior performance against wear and can be commonly employed in mobile hydraulics however they are not able to withstand water-based fluids as well as high temperatures.

Preventive: Always select seal materials based on three factors, which include the type of hydraulic fluid (mineral oil, water-glycol synthetic) and temperatures operating range and the profile of the pressure cycle. When replacing seals, choose OEM-approved materials or confirm the compatibility of the seal manufacturer's technical specifications.

3. The system is overloaded and there are pressure spikes

Every seal in the hydraulic industry is rated to operate at a certain operating limit. When the pressure in the system is consistently higher than the threshold—or if tension spikes due to sudden changes in load such as valve switching or shock loading exceeds it, the seal is pushed into spaces it was not intended to go through.

The phenomenon, also known as extrusion, happens when elastomeric seals get pushed into the gap between the piston's bore and the bore of the cylinder. The extruded material is shaved away during the return, gradually decreasing the cross-section of the seal until the seal begins to leak. Backup rings are specially made to stop this; however, if they're omitted or misspecified, extrusion speeds up.

Prevent: Set relief valves in a proper way and ensure that the maximum system pressure as well as transient spikes remain within the seal's maximum limit. Utilize anti-extrusion backup rings in high-pressure situations. Install pressure gauges, and look for any unusual spikes, which could signal the presence of water hammer or rapid valve closure problems.

4. Thermal degradation

Hydraulic systems generate heat. If the temperature of the fluid is above the range of temperature that is acceptable for the material of the seal (generally between 80 and 90 degrees Celsius for normal nitrile seals), the elastomer starts to become harder, lose elasticity, and eventually crack. This process, also known by the term "heat aging," permanently alters the mechanical properties of the seal.

The same is true of thermal cycling—the repeated heating and cooling causes the elastomer's elasticity to expand and shrink. As time passes, this can cause micro-cracks, which grow when pressure is applied.

The heat can cause the hydraulic fluid to degrade and oxidize to form sludge and varnish deposits that cover seals and hinder their functionality. These sticky deposits can stop sealing systems that are dynamic from working properly and can cause unbalanced wear patterns.

Protection: Monitor system operating temperature and make sure the reservoir size, hydraulic cooler, and viscosity of the fluid are in line with the load of heat. If operating in high-ambient-temperature environments or running high-duty cycles, upgrade to Viton (FKM) seals, which withstand temperatures up to 200°C. Change hydraulic fluid at manufacturer-recommended intervals to prevent oxidation products from accumulating.

5. Improper installation

Damage to seals in the course of installation is more prevalent than the majority of maintenance teams realize and is completely possible to prevent. The most common mistakes made during installation are:

• Seals that are kinked or bent have been damaged by pressing them against sharp threads or ports, without the aid of a guide sleeve
• Seals that have been cut or damaged are removed from the contact of sharp edges while the process of assembly
• Incorrect groove dimensions leave the seal insufficiently compressed.
• Dry installation, without lubrication creating a tear in the surface during the first stroke
• Incorrect seal orientations for seals with asymmetric profiles

A damaged seal during installation might not be leaking immediately. Instead, it may fail prematurely - typically within a few days or hours of being installedand can result in repeated repairs and unneeded downtime.

Preventive: Always use the correct seal installation tools, tapered guide sleeves, smooth cones for insertion, and seal drivers that match the profile of the seal. Cleanly lubricate seals using hydraulic fluid prior to installation. Examine the dimensions of grooves against the tolerances of the manufacturer prior to fitting new seals. Training maintenance staff on proper sealing and the proper orientation.

6. Side loading and an incorrect alignment

Hydraulic cylinders are made to transfer forces across a direction. When external forces push the rod in a different direction (a process known as side loading, the rod bears on the bore of the cylinder and the rod seal is not evenly. The pressure at contact on the other part of the seal is increased significantly, speeding up wear in a particular area.

Common causes of side load include improper mounting or adjusting and worn pivot pins and bushings, as well as machinery structures that have moved from alignment. Mobile equipment irregular loading due to an attachment or terrain can cause a permanent condition of side loading.

Protection: Inspect mounting arrangements and pivot points frequently. Replace worn bushings prior to their creating excess rod flexion. Reconsider cylinder selection if your application is causing significant off-axis loads A cylinder that has an extended bearing span or a guiding cylinder model may be the best choice for your needs.

7. Natural wear and age

Even if every other aspect is accurate, seals have a limitless service lifespan. Seals that are dynamic undergo millions of strokes that reciprocate over the life of a cylinder, and the gradual wear and tear of elastomers against metal surfaces eventually decreases the sealing effectiveness. This is normal and not an issue in the traditional sense, but it should be addressed in a proactive manner.

Prevention: Plan a seal replacement interval that is based on the operating hours, the frequency of use, and the manufacturer's guidelines instead of waiting for obvious leaks. If you have equipment that is critical, think about having a seal kit available on hand so that replacement can be scheduled for maintenance intervals, not during the event of a breakdown.

The price of not heeding seal condition

The hydraulic seal kits for cylinders usually take a fraction of the time and labor involved in the major rebuild of a cylinder, and that's not even including the expense of lost fluid and environmental cleanup or the damage caused by an engine with deteriorated seals. External leakage is a clear indication that something is not right. Leakage inside—when fluid leaks through the piston seal It is more difficult to identify, but equally destructive, resulting in the loss of the force output and displacement without visible trailing fluid.

Failure of the hydraulic cylinder seal is not always unintentional. In the majority of instances it can be attributable to any of the above causes that are contamination, incorrect materials, high pressure, improper installation, heat and alignment, or aging. Each one of these can be solved with an effective prevention plan, which can be implemented using regular maintenance practices, proper choice of components, and awareness of the operator.
