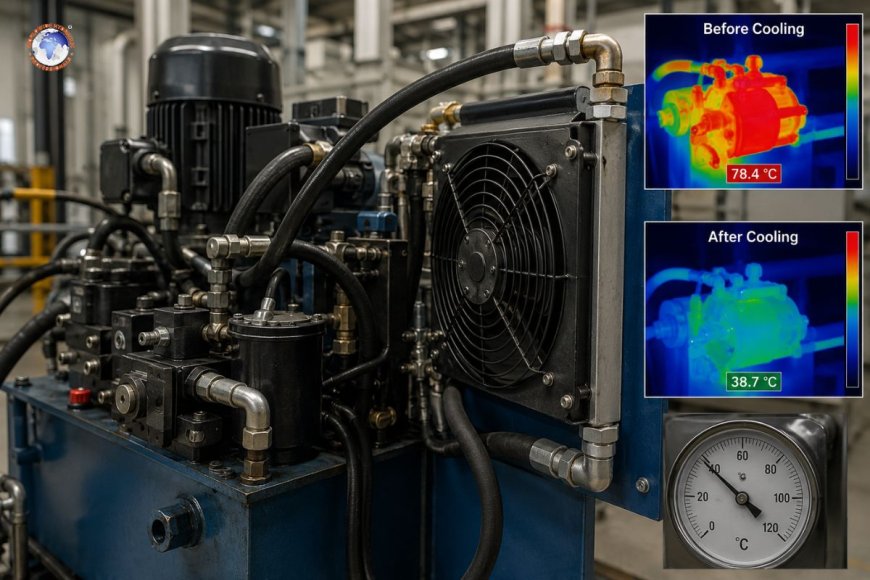

Why do hydraulic systems overheat — And how can a heat exchanger fix it?

The system's temperature rises when heat produced by pressure drops friction, inefficiency, and friction (relief valve pump dumping, worn-out pumps, lines that are not sized correctly, or contamination of the fluid) outpaces the system's capability to dissipate the heat through the reservoir as well as ambient air. A properly sized heat exchanger—air-cooled, water-cooled, or oil-to-air—eliminates the excess heat directly out of the circuit, keeping the temperature of the fluid in the optimal 110 to 140 degrees Fahrenheit (43-60°C) range, while also safeguarding seals, oil life, and the tolerances of components.

Heating is the least-known cause of failure within a hydraulic system. In contrast to a leak or a loud pump, excessive heat is silent as it deteriorates systems slowly until seals fail, oil deteriorates, and parts are worn out long before their intended service lifespan. Knowing where the heat originates from and how an exchanger can interrupt the cycle is crucial for anyone who specifies, maintains, or troubleshoots the hydraulic system.

Why is heat essential for hydraulics systems?

Each hydraulic device converts mechanical or electrical energies into power from fluids, but the conversion isn't 100% effective. Energy that doesn't perform important work, such as turning the engine or turning a cylinder -- is lost in the form of heat. This isn't an issue but a matter of physics. The issue is whether the system is designed to control this heat or battle it.

The heat source actually comes where the heat actually comes

Pressure drop across restrictions. Each time fluid passes through a valve orifice, tiny fitting, or a relief valve, the pressure energy transforms into heat. The more tightly the restriction is to the flow of fluid, the greater the heat produced.

Relief valve dumping. If a system operates regularly without the relief valve breaking open—due to an oversized pump, trapped actuator, or an improperly connected circuit—that flow is in essence making heat directly from horsepower and doing nothing.

Internal leakage of components. As motors, pumps, and valves wear out, internal clearances rise. Fluid slides over seals and spools inside, and this causes heat and friction but does not contribute to the output.

Fitting friction and line. The hoses that are too small and the sharp bends and long runs create resistance to flow. This increases the operating pressure and heat for the task at hand.

A mismatch in the viscosity of fluids. The thicker the oil, the more friction in the internal area, while the oil that's too thin can cause greater internal leakage. In either case, the wrong viscosity for the temperature of operation and load can increase system heat.

High demands on the ambient or duty cycle. Continuous-duty equipment, such as those operating in hot climates or engine compartments that are enclosed, simply have less headroom.

Why does overheating cause discomfort?

The system that is hot isn't simply inefficient; it also causes damage to itself in the course of time.

• Oil oxidation accelerates. As a general rule, the life of oil is roughly cut in half for each 18°F (10°C) increase over the fluid's operating temperature. It is the identical chemistry of oxidation that is behind the formation of varnish and the chemistry of varnish oxidation compounds rapidly once temperatures reach the zone of danger.
• Viscosity decreases, which thins the film of fluid that is between moving parts and causes an increase in the contact between metal and metal as well as wear.
• Seals become hard and crack. Elastomeric seals, NBR in particular, are brittle and begin leaking when they're constantly exposed to heat.
• Clearances change. The expansion of heat in valves and pumps alters internal tolerances. This can cause leakage to increase and lower holding force or accuracy.
• Cavitation risk increases as hot oil releases gas more easily and especially on the pump's inlet side.

This doesn't happen in a single day. That's why heat is risky—it's a slow-motion issue that often is misinterpreted as a component issue, and the reason is actually thermal.

Identifying whether it is heat that is the root of the issue

Before adding cooling capacity, it's important to verify that it's actually heat that is the cause of the problem, not the symptom of something else.

A thermal problem could be a sign of trouble.

• The temperature of the return line and reservoir must be constantly at or above 140°F (60°C) in normal operation
• Oil that smells burnt, or has been darkened considerably during service intervals
• Seals fail repeatedly in the same place despite correct installation
• Performance decreases as the machine heats through a shift and then improves following a cooling period
• Relief valve cracks loudly when cycling normally and not only at the end of a stroke

What should we rule out first?

A heat exchanger is able to treat the symptoms. If the root reason is a blocked relief valve, an insufficient pump that requires continuous high-pressure operation, or components that are worn out that are dumping the flow internally, then cooling will only cause the issue rather than resolve it. A quick test of the system pressure at idle and under load and an examination of the temperature of the return line increase over a working cycle will usually reveal if the system is experiencing a thermal load issue or a problem with efficiency that is manifesting itself in the form of heat.

What can a heat exchanger do to solve the problem?

If excess heat is confirmed as a true thermal burden—not just a sign of a solvable issue—a heat exchanger offers the system a path to eliminate that energy instead of relying on the reservoir's surface and convection passively.

Cooled by air (Oil-to-air) Exchangers for heat

They employ fans to push ambient air over a finned central, through which hot hydraulic oil runs. They're the most popular choice for industrial and mobile machines that aren't connected to chilled water sources.

• Advantages Water supply not required, easy to set up and maintain, suitable for mobile and outdoor use
• Pros: Cooling capacity is restricted by the ambient temperature. It's less efficient in hot areas, which can increase noise from fans and draw power

Cooled by water (Oil-to-water) heat exchangers

They pass heated oil via a shell and tube or plate design, which transmits heat into separate water circuits, which are later cooling in another location (cooling towers, chillers, or even the water supply to plants).

• Pros: More capacity of cooling within a smaller footprint. performance isn't impacted by the temperature of the surrounding air, more quiet operation
• Cons: requires the use of water and typically water treatment, a greater complex plumbing system, and risk of cross-contamination from oil to water if the main is not functioning properly.

Size considerations

A heat exchanger that's too small will not be able to keep up with the system heat load, whereas an exchanger that's too big adds expense and in cold climates could cause oil to cool beyond the optimal range of viscosity. A proper sizing plan will account for:

• Total connected horsepower as well as estimated performance of system (typically 10-30% conversion into heat)
• Continuous-duty systems require more continuous capability in cooling than intermittent systems.
• The equipment will operate in a temperature range that is ambient. will function within
• The operating temperature of the target fluid is typically 110-140°F (43-60°C) for the majority of mineral-based hydraulic oils.

What happens through the circuit

The heat exchangers are usually located on the return lines; cooling oil is removed after the work before re-entering the reservoir. Certain high-heat load systems also have a separate cooling loop from the drain line for the case, especially for motors and pistons, which generate significant drainage heat through internal leakage.

Practical takeaway

In a hydraulic system, overheating isn't a problem when you pinpoint it to its root: the pressure drops, leakage inside, improper viscosity, or incompatible temperature and duty cycle. An appropriately sized heat exchanger, when paired with the proper liquid and an engine that's not struggling with an excessive amount of relief valve activity, ensures that oil is in the right operating range and safeguards each seal, pump, valve, or seal that is downstream of it. Cooling isn't a supplementary feature for high-pressure or continuous-duty systems; it's an integral part of the design.

1. What is the temperature that is considered to be too hot to use hydraulic oil?

Most mineral-based hydraulic fluids should be kept between 110 and 140°F (43-60°C) throughout the operation. Temperatures that remain above 180°F (82°C) can significantly speed up the process of oxidation, seal degradation, and breakdown of viscosity.

2. Can a heat exchanger repair the system that is overheated because of a worn pump?

It's not full. The heat exchanger eliminates excess heat, but it doesn't tackle the root of internal leakage resulting from worn parts. It could mask the problem for a short time while the pump wears out and reduce efficiency.

3. Is water-cooled cooling better or air-cooled more suitable for a hydraulic system?

It's dependent on the type of application. Air-cooled units are less complicated and can be used in outdoor or mobile applications, and water-cooled units provide greater cooling capacity and less space and are better for industrial systems with high temperatures that are connected to water.

4. When should I test the temperature of my hydraulic fluid?

In continuous-duty systems, the temperature must be checked regularly, most often using an inline thermometer or a sensor connected with an alarm. For equipment that is intermittent, monitoring during times of peak load or temperature extremes during the season is generally enough.

5. Can running the oil too cool create problems?

Yes. If the oil is too cold, it is too viscous, causing an increase in friction within the valve and reducing its reaction, which can lead to cavitation when the engine is cold to start. Systems or heat exchangers that are too large and are in extremely cold climates could require a warm-up circuit or thermostatic bypass to prevent overcooling.
