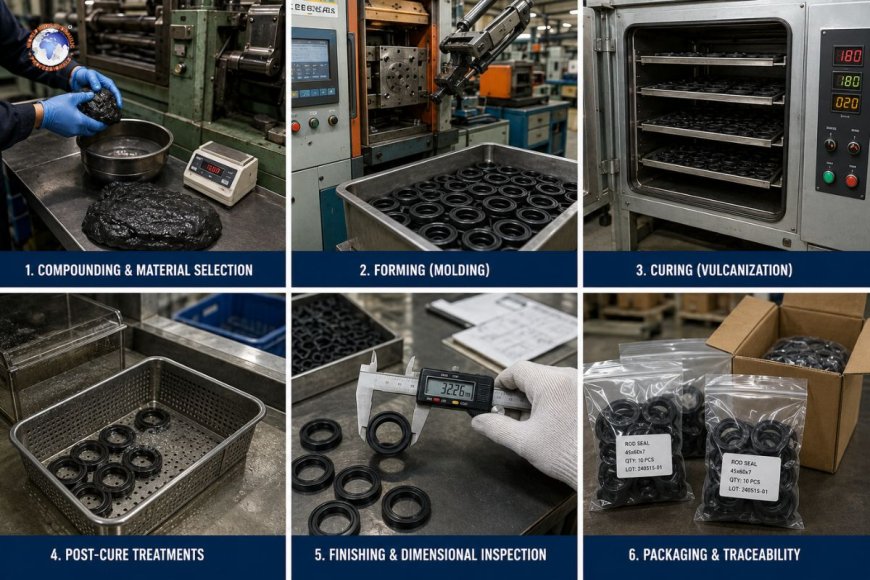

Hydraulic Seal Manufacturing Process Explained

Hydraulic seals are produced using one of three main techniques, such as compression molding, injection molding, or precision machining using extruded or molded stock, dependent on the material used, its shape, and production. Curing and mixing of the compound determine the final chemical and mechanical characteristics, while post-processing procedures like trimming, inspection, and dimensional testing make sure that the seal is within ISO tolerances prior to it reaching a cylinder, valve, or pump. The proper manufacturing technique determines the seal's consistency, batch-to-batch reliability, and, finally, how long the seal will last on the job.

Hydraulic seals appear simple if they are tucked away in a bin with parts However, making a rod seal or piston seal that can hold pressure for thousands of cycles is an entire manufacturing process that is based on precise quality control of the material and dimensional accuracy. Seals that are off by just a few millimeters or not properly cured may result in premature leakage, extrusion, or even a complete system failure. Understanding how seals are constructed aids buyers and engineers in making better choices when deciding on replacement parts or identifying premature wear of seals.

What is the significance of the manufacturing process in sealing performance?

The job of a hydraulic seal is to ensure an appropriate pressure level while also coping with the effects of temperature fluctuations, friction, and chemical exposure by the fluid in use. The performance of the seal is determined long before the seal's delivery; it is included in the formulation of the compound and the molding or machining process as well as the curing process. Two seals that appear identical and have the same name for their material may perform very differently in the event that one was made with more stringent process control than the others. This is the reason OEMs and component makers rarely consider seal selection as a purely commercial decision.

Step 1: Compounding and material selection

Each seal is an unfinished elastomer, also known as a polymer compound. Manufacturers select a base substance, typically nitrile (NBR) or fluorocarbon (FKM) and polyurethane or PTFE, depending on the application's temperature envelope, pressure range, and compatibility with fluids.

The polymer's base material is made into a compound with fillers and curing agents, plasticizers, and other additives in order to achieve certain toughness (Shore A), tensile strength, and chemical resistance goals. This step of compounding is the point where the long-term performance of a seal is measured. A compound that is not properly balanced can cure in an inconsistent manner, resulting in soft spots, brittleness, or even accelerated compression once the seal has been in use.

Common base materials and their production behavior

• NBR: Simple to mold and affordable; however, it needs careful curing control to prevent inconsistent hardness throughout the entire batch.
• FKM higher curing temperatures, and long cycle times More sensitive to the purity of the compound.
• Polyurethane: Most often, it is made by casting or molding into two-part systems that require exact mixing ratios.
• PTFE: It's not molded in the traditional sense—typically made from billet stock or sheet because PTFE is not able to melt as elastomers do.

Step 2: Selecting the method of forming

When the material is dry, manufacturers choose the method of forming according to seal size, geometry, and the type of material.

Compression molding

Raw material is inserted in a mold cavity and then molded under pressure and heat. This is a common method for seals that are medium to large and is suitable for a variety of elastomers. Compression molding can be cost-effective for medium-volume runs, but it has greater variability in terms of flash and dimensional stability as compared with injection molding.

Injection molding

Pre-heated material is in the closed mold using extreme pressure, creating seals with higher tolerances and fewer waste materials. Injection molding is a good choice for high-volume production of seals that are standard size, such as O-rings, rod seals, and piston seals, in which precision in dimensional measurement for thousands of seals is essential.

Machining with stock

For products such as PTFE or for extremely large or custom-designed geometry seals, where molds aren't feasible, manufacturers machine seals made from extruded rod, skived sheets, or billets that have been molded using lathes as well as precision-cutting tools. This is slow and costs more per unit, but it allows for low-volume custom sizes without the cost of tooling.

Step 3: Curing (vulcanization)

Seals made of rubber or elastomeric Curing, sometimes referred to as vulcanization, connects the polymer chains with pressure and heat to ensure sealing's mechanical characteristics. Cure duration and temperatures are unique to the particular compound. Under-curing makes the seal brittle and vulnerable to deformation for a long time, whereas over-curing may cause it to become hard and less elastic.

Manufacturers monitor cure parameters carefully since this procedure is almost irreversible. A cured batch will not be rectified down the line, but it can be removed or reduced.

Post-Cure treatment

Certain materials, including FKM, are subjected to a second post-cure bake in order to eliminate some volatiles that remain and to help stabilize the compound even more. This increases the resistance to compression set and increases the service life of the seal under constant pressure.

Step 4 The trimming and deflashing

The molded seals emerge from the tool with excess material—flashing along the line of separation. The flash is removed by mechanical trimming and freezing the flash (freezing the brittle flash before crumbling it away) or manually trimming to remove low-volume or delicate profiles. A clean deflashing process is essential, as leftover flash may cause issues with sealing surfaces or even create leak pathways once the seal has been installed.

Step 5: Quality inspection, dimensional inspection, and testing

Before sealings depart the plant, seals are subjected to the process of dimensional and material checks against tolerances for drawing and pertinent standards. The most common checks are:

• Dimensional inspection—inner and outer diameter, cross-section, and the geometry of the profile measured against tolerances in CAD, typically by using optical comparators and CMM equipment.
• Testing for hardness Shore durometer readings prove that the cure of the material is to specification.
• Tests for compression set Samples will be compressed to a specific time and temperature. They are then tested for recovery, which indicates the degree to which the seal can be able to withstand permanent deformation during service.
• The ability to trace batches—the most reputable manufacturers keep compound lot numbers as well as cure records to ensure that a problem can be traced to a specific batch of production.

Seals that do not meet tolerances are rejected prior to packaging. This is why the choice of manufacturers that have established QA procedures is more important than the price alone in critical hydraulic applications.

Step 6 Step 6: Storage and packaging

Elastomeric seals can be affected by UV, ozone, and extreme temperatures even after the manufacturing process is completed. Proper packaging—typically sealed, light-blocking bags stored in temperature-controlled warehouses—prevents surface cracking and premature aging before the seal is ever installed. This is crucial when it comes to FKM or NBR seals, which may be damaged in storage when exposed to ozone-producing equipment as well as direct sun.

What is the manufacturing process that affects the seals that are selected?

When it comes to engineers who are designing replacement seals, knowing the background of manufacturing isn't just academic. Injection-molded seals typically have better, more reliable tolerances, which is ideal for high-cycle applications in which consistency across the entire seal kit is crucial. Machined PTFE seals are more expensive per unit and are typically the only feasible choice for large-diameter cylindrical bores when standard molded sizes aren't available. Knowing the manufacturing process used to create the seal you want can aid in understanding the differences between various suppliers, even if the material specification appears similar on paper.

What's the distinction between injection molding and compression molds to make sealing hydraulic?

Compression molding creates sealed areas by pressing material into a mold cavity that is heated and is ideally suited for mid-volume runs. Injection molding injects a heated compound into a closed mold for more precise tolerances and higher volume production.

Why can't hydraulic PTFE seals be molded by injection?

PTFE does not melt-process as elastomers do It's usually made from skived sheets or extruded rod-formed billet stock, rather than created by traditional compression or injection molding.

What happens when a seal made of hydraulics is not properly cured?

Sub-curing makes the compound fragile and susceptible to deformation for a long time, whereas over-curing causes it to become brittle and decreases its elasticity. Both reduce the lifespan of service and raise the chance of failure.

What is the significance of batch traceability? important when purchasing the hydraulic seals?

Traceability allows a manufacturer to link the failed seal to the specific compound lot and record of cure, essential to identify quality issues that are systemic instead of treating every failure as an isolated one.

Does the method used to manufacture seals influence which seal replacement I should select?

Yes, injection-molded seals generally provide tighter dimensions for high-cycle applications, and machine-made seals (especially PTFE) are usually required for large bores or custom-designed ones when standard molded sizes aren't readily available.
