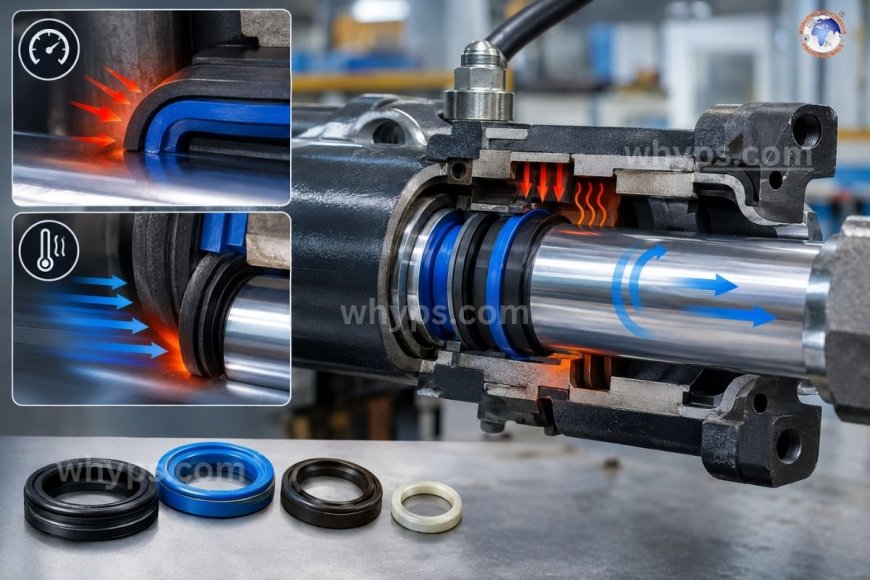

How do pressure and speed affect hydraulic seals?

The pressure and speed of the hydraulic seals can be affected by how much heat is generated during operation and how hard it presses on its mating surface. High pressure can push the seal into a tighter fit and force material out of clearances. High speed, on the other hand, generates heat, which accelerates wear at the lip. Seal design, material, and hardness must match the pressure and speed ranges of the application. Otherwise, seals will fail prematurely due to extrusion, thermal degradation, or abrasive wearing.

Hydraulic seals are at the intersection of forces rarely discussed together: pressure pushing fluid past them and the speed of moving surfaces they ride on. In real systems, these two factors are constantly in interaction. Seals designed for static applications can fail rapidly in fast-cycling cylinders, while seals built for high-speed rotational service can blow out or extrude when system pressure spikes. It is important to understand how these variables interact in order to select seals that will last.

Why does pressure matter to seal performance?

The pressure that a seal is under can be seen as the main stress, but it has effects beyond "holding back fluid."

Sealing effectiveness and contact force

As the system pressure increases, the seal lip is pushed more firmly into the shaft, rod, or bore surface. This is good up to a certain point. Higher contact forces improve sealing and reduce leakage. The majority of hydraulic seal designs such as U-cups and rod seals are designed to be self-energizing. This means that fluid pressure increases the lip contact force, rather than relying on a spring.

Extrusion risk

Pressure that can improve sealing is also the seal's worst enemy. High pressure can be used to force seal material into gaps between moving parts, such as between the piston and the cylinder bore. Extrusion is the process of squeezing out a thin lip or sliver along the seal edge. The material is worn away by repeated cycling, eventually creating a path for leaks.

The standard countermeasure is backup rings. They are made of harder materials such as PTFE and reinforced polymers. They sit on the low-pressure side of the seal to physically block the gap. High-pressure systems require tighter clearances, stronger seal compounds, and backup rings.

Pressure spikes and shock-loading

The steady-state pressure is not the whole story. Hydraulic systems are subject to pressure spikes caused by valve shifts, cylinder impacts at the end of stroke, or pump ripple. These transient spikes may briefly exceed the seal's rated pressurized by a large margin. Even a seal that is rated for continuous loads may fail prematurely when the system frequently exposes it to spikes. Seal selection should consider peak system pressure and not only average operating pressure.

Why does speed matter for seal performance?

The speed of the vehicle presents a new set of challenges. Most of these are centered around friction and heat, rather than pure force.

Frictional heat generation

Each seal lip that comes into contact with an object moving generates friction. Friction generates heat. This heat is minimal at low speeds and easily dissipates into the fluid and metal components surrounding it. Heat generation increases at higher speeds. If it's not carried away efficiently, seal contact zones can reach temperatures above system temperatures.

The temperature limit of most elastomers or thermoplastics that are used to make hydraulic seals is defined. The nitrile rubber (NBR) is a common and economical material, but it has a lower temperature tolerance than fluorocarbons (FKM) and polyurethanes. Seal materials that are perfectly acceptable at low speeds can quickly degrade in high-speed applications once frictional heating drives them near or beyond their thermal limit.

Wear and abrasion

The speed of the seal lip relative to the shaft or rod also has a direct impact on wear rate. A faster relative motion between the seal lip and shaft or rod results in more contact cycles per unit of time. This accelerates abrasive wearing, especially if fluid is contaminated or the lubrication on the interface at the interface area is minimal. High-cycle equipment such as presses and injection molding machines often exhibit wear patterns that are concentrated in the direction they travel. This is a sign of speed-driven friction.

Lubricant film behavior

Hydraulic seals use a thin film of fluid between the lip and moving surface at the microscopic scale to reduce metal-to-elastomer direct contact. The speed of the film can change its behavior. The film can be too thin at very low speeds. This leads to increased friction and wear on the boundary layer. The film thickens at higher speeds. This can reduce wear, but it also increases the risk of leaking if the film is too generous. Seal lip geometry—the angle, radius, and surface finish—is designed to achieve this balance over a range of speeds.

Pressure and speed combined: The effect

High pressure and high speeds are often found in hydraulic presses, mobile machinery cylinders, and high-speed rotary actuators.

The seal lip will be pressed against the surface harder (from the pressure), while friction from the speed will also generate more heat. The compounding effect of these two factors can cause seals to operate outside their comfortable operating range, even when neither is a factor. Seal materials are often given PV curves or limits because the pressure-velocity relationship cannot be assessed independently. A seal may handle high pressures at low speeds, but not at both extremes at once.

It is for this reason that when selecting seals for high-demand applications, it is best to refer to the PV rating of the manufacturer rather than pressure or speed limits alone. Seals that are operating at or near their pressure limits need to be kept below their own maximum speed, and vice versa.

Seal selection and maintenance: Practical implications

This pressure-speed relationship has a number of practical implications for anyone who specifies or maintains hydraulic seals:

• Not average conditions but peak conditions. Seals should be selected based on the maximum pressure and speed that the system is likely to experience, including transients.
• Material should be chosen according to the temperature. Compounds with high heat resistance are recommended for applications that require high speeds, even when pressure alone is not sufficient.
• Keep clearances tight in zones of high pressure. Reduced extrusion gaps, and the addition of backup rings, protect against pressure-driven failure.
• Monitor for combined-load symptoms. Seals that show both extrusion and abrasive wear are likely to be operating close to their PV limits and may require a design change instead of a replacement.
• Before making a final decision, check the PV curves of the manufacturer. Independent pressure and speed ratings can be misleading. The combined limit in real service is what counts.

1. What is the PV limit of hydraulic seals?

A PV limit is a rating that combines pressure with velocity to reflect how much stress can be combined before mechanical and frictional load causes premature failure.

2. Can a seal designed for high pressure fail at low speeds?

Extrusion is possible even in static or slow-moving applications when the clearances are too big or if there's no backup ring.

3. Does higher speed always mean shorter seal life?

It's not necessary—systems that are well-lubricated and use the right materials can be run at higher speed without causing excessive wear. However, if heat is not managed, it increases the risk of degradation due to heat.

4. Why is it important to have backup rings in systems with high pressure?

Backup rings prevent the seal edge from being damaged by mechanical damage. They block the gap where pressure would otherwise force the seal material.

5. What materials are best suited for high-speed and high-heat sealing applications?

Due to their superior thermal stability and wear resistance, polyurethane and fluorocarbon compounds (FKMs) generally outperform standard nitrile (NBRs) under high-speed and high-heat conditions.
